400 Hz AC, 90kVA, 28.5 VDC Diesel GPU (CE)

11-4290-0000

Model11-4290-0000

Electrical power (ata-24)

Does this product fit your model?

View Aircraft Applications
Available to Order
Request a Quote
Icons/Caret-Right

Separate Adaptor may be required for some aircraft models. View Adaptor

View full details

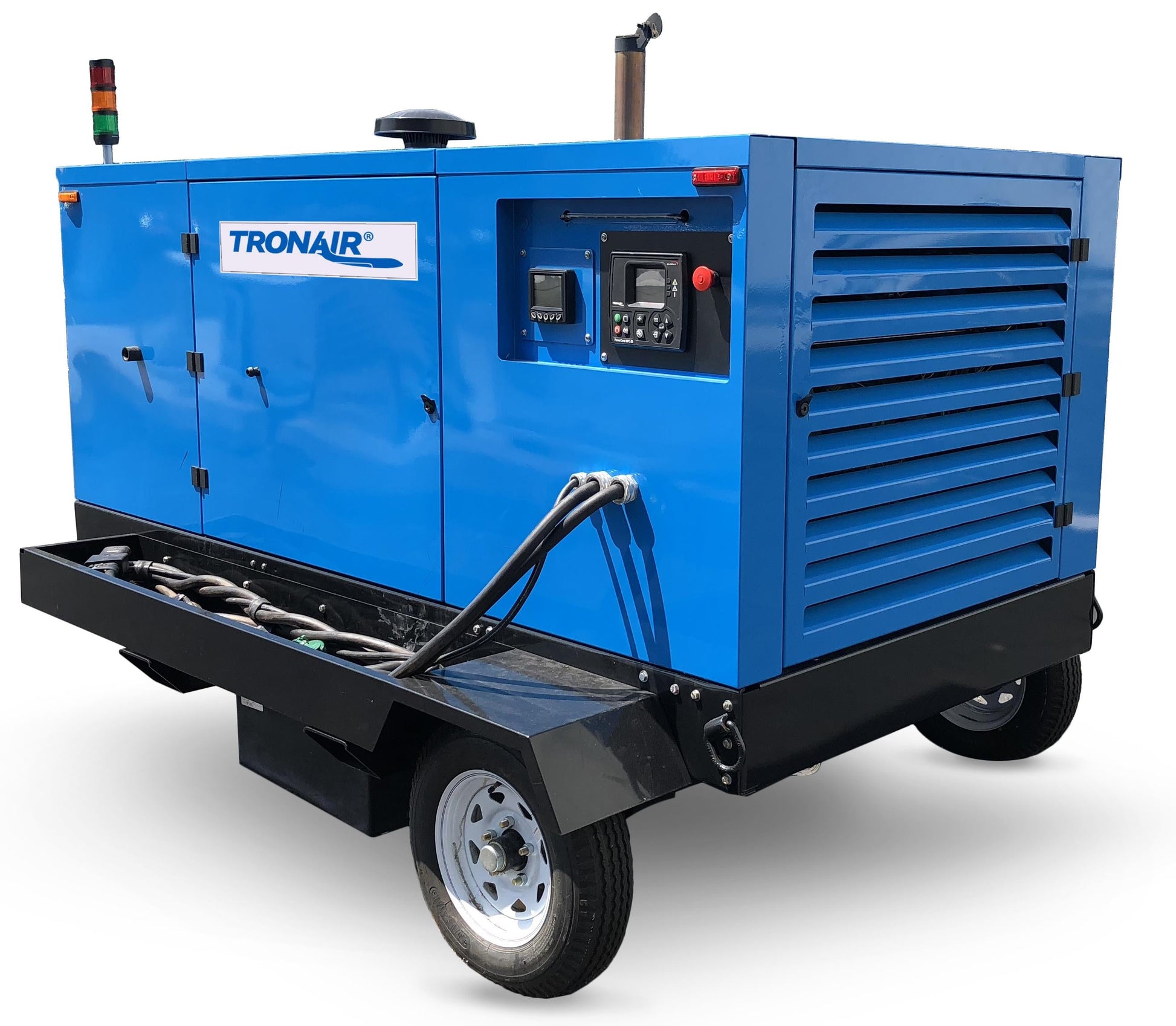

The Tronair 11-4290-0000 is a trailer-mounted, diesel-powered aircraft ground power unit (GPU) engineered for simultaneous 400 Hz AC and 28.5 VDC aircraft ground power delivery. Powered by the Doosan Tier 4f electronic engine and CE marked for international compliance, this dual-output unit supports more than 100 commercial, regional, and military aircraft platforms with up to 8 hours of continuous runtime per tank.

Aircraft Electrical Power (ATA-24)

Standard Features

Engine and Fuel System

  • Award-winning Doosan Tier 4f electronic engine with full-authority electronic controls for precise performance management
  • Extended service intervals up to 500 hours using extended-life filters and lubricants
  • Operates on Ultra-Low Sulphur Diesel fuel
  • Fuel/water separator with water-in-fuel sensor and electronic indication
  • 35-gallon high-density cross-linked polyethylene fuel tank -- 8+ hours of runtime per fill
  • Low fuel warning with automatic no-fuel shutdown
  • Automatic shutdown on low oil pressure and high engine temperature (LOP/HET protection)
  • 12V control and starting circuitry for reliable cold weather starts
  • Automated glow plug control for cold weather starting
  • Digital Display and Diagnostics module (DDD) -- monitors engine parameters and fault codes
  • 60-second power-off delay shutdown for turbo protection
  • 3-year engine warranty

Power Output

  • 80kW, 90kVA alternator with AVR and SCR regulation
  • Maintenance-free, long-life single-bearing design
  • Automatic output build-up and protection
  • Cable head sensing with output drop compensation -- ensures full rated power at the aircraft
  • Aircraft cable head interlock circuit
  • Simultaneous 400 Hz AC and 28.5 VDC output capability
  • SCR regulation with ripple filter for ultra-low DC output ripple
  • Adjustable peak current limiting: 2,000A peak / 600A continuous
  • 30 ft (9.1 m) AC output cable
  • 30 ft DC output cable
  • Wiring and color coding in accordance with CE, NFPA, and NEC standards

Unit Design

  • Durable, compact, trailer-mounted unit with fifth-wheel steering
  • Front wheel scrub brake
  • Weather-resistant powder-coated sheet metal
  • Corner lights and stack light
  • Large cable trays for organized cable stowage
  • Finish: Tronair Blue powder coat
  • CE marked

Standard Cold Weather Package

  • 120V block heater
  • 900 CCA AGM starting battery
  • Automatic glow plugs
  • Engine enclosure insulation with integrated sound dampening
TRONAIR

11-4290-0000

Request a Quote

Specifications

Dimensions

  • Height In (Cm): 74.5 (189)
  • Length In (Cm): 113.5 (288)
  • Weight Lb (Kg): 4,000 (1,814)
  • Width In (Cm): 79 (200)

Aircraft Applications

AERO Vodochody - L-39 Skyfox (L-39NG),

Airbus - A220-100 (CS100),

Airbus - A220-300 (CS300),

Airbus - A300,

Airbus - A310,

Airbus - A318,

Airbus - A319,

Airbus - A320,

Airbus - A321 Neo,

Airbus - A321,

Airbus - A330-200,

Airbus - A330-300,

Airbus - A340-200,

Airbus - A340-300,

Airbus - A340-500,

Airbus - A340-600,

Airbus - A350-900/1000,

Airbus - A380,

ATR - 42,

ATR - 72,

BAe - 146-100, -200, -300/Avro RJ100,

BAe - ATP,

Bell - UH-1,

Bell - UH-1H,

Boeing - 707,

Boeing - 717,

Boeing - 727-100,

Boeing - 727-200,

Boeing - 737-100,

Boeing - 737-200,

Boeing - 737-300,

Boeing - 737-400,

Boeing - 737-500,

Boeing - 737-600,

Boeing - 737-700,

Boeing - 737-800,

Boeing - 737-900,

Boeing - 737-BBJ,

Boeing - 737-BBJ2,

Boeing - 737 MAX,

Boeing - 747,

Boeing - 757,

Boeing - 767,

Boeing - 777,

Boeing - KC-46,

Boeing - KC-46A,

Boeing - MD-80,

Boeing Rotorcraft - 234 Chinook,

Boeing Rotorcraft - Apache AH-64,

Boeing Rotorcraft - CH47, MH47 Chinook,

Bombardier (Business) - 6500,

Bombardier (Business) - Challenger 300,

Bombardier (Business) - Challenger 350,

Bombardier (Business) - Challenger 600,

Bombardier (Business) - Challenger 601,

Bombardier (Business) - Challenger 604,

Bombardier (Business) - Challenger 650,

Bombardier (Business) - Challenger 850,

Bombardier (Business) - CL-215,

Bombardier (Business) - CL-215T,

Bombardier (Business) - CL-415,

Bombardier (Business) - Global 5000,

Bombardier (Business) - Global 5500,

Bombardier (Business) - Global 6000,

Bombardier (Business) - Global 6500,

Bombardier (Business) - Global 7500 (7000),

Bombardier (Business) - Global 8000,

Bombardier (Business) - Global Express XRS,

Bombardier (Business) - Global Express,

Bombardier (Regional) - Challenger 870,

Bombardier (Regional) - Challenger 890,

Bombardier (Regional) - CRJ100,

Bombardier (Regional) - CRJ1000,

Bombardier (Regional) - CRJ200,

Bombardier (Regional) - CRJ700,

Bombardier (Regional) - CRJ705,

Bombardier (Regional) - CRJ900,

Bombardier (Regional) - Dash 8-100,

Bombardier (Regional) - Dash 8-200,

Bombardier (Regional) - Dash 8-300,

Bombardier (Regional) - Dash 8-400,

Dassault - Falcon 6X,

Embraer - E170 (ERJ-170),

Embraer - E175-E2,

Embraer - E175 (ERJ-175),

Embraer - E190-E2,

Embraer - E190 (ERJ-190),

Embraer - E195-E2,

Embraer - E195 (ERJ-195),

Fairchild Dornier - Dornier DO328 Jet,

Fairchild Dornier - Dornier DO328,

Fokker - 100,

Fokker - 28,

Fokker - 50,

Gulfstream - G350,

Gulfstream - G450,

Gulfstream - G500,

Gulfstream - G550,

Gulfstream - G600,

Gulfstream - G650,

Gulfstream - G650ER,

Gulfstream - G700/G800,

Gulfstream - II,

Gulfstream - III,

Gulfstream - IV,

Gulfstream - IVSP,

Gulfstream - V,

Gulfstream - VSP,

Lockheed - C-130,

Lockheed - L-1011,

McDonnell Douglas - DC-10,

McDonnell Douglas - DC-8 Series 60,

McDonnell Douglas - DC-9 Series 10,

McDonnell Douglas - DC-9 Series 20,

McDonnell Douglas - DC-9 Series 30,

McDonnell Douglas - DC-9 Series 33,

McDonnell Douglas - DC-9 Series 40,

McDonnell Douglas - DC-9 Series 50,

McDonnell Douglas - MD-11,

Saab - 2000,

Sikorsky - MH-60R, SH-60B/F, HH-60J, S-70B, S-70C-6, S-70i,

Sikorsky - UH-60 Black Hawk, MH-60S Seahawk
