Showing 1 - 12 of 36
-
-

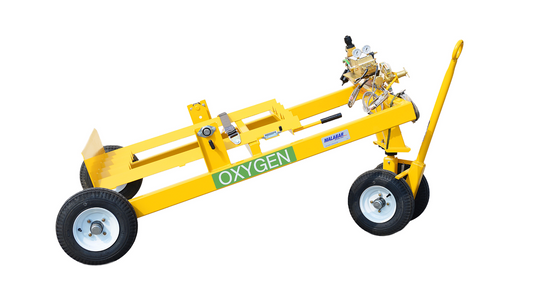

O2 Service Cart With Boost Pump- Rugged tubular steel frame
- Bottle restraint strap
- Oxygen delivery system with high quality regulator and gauges
- Oxygen hose includes AN800-3 (3/8-24 thread) oxygen charge adapter with dust plug
- Towbar with 3 inch ID lunette ring and parking brake
- Skydrol resistant paint (safety yellow)
- 1 year standard warranty
- Shipment on domestic skid
-
O2 Service Cart, 2-Bottle- Rugged tubular steel frame
- Bottle restraint strap
- Oxygen delivery system with high quality regulator and gauges
- Oxygen hose includes AN800-3 (3/8-24 thread) oxygen charge adapter with dust plug
- Towbar with 3 inch ID lunette ring and parking brake
- Skydrol resistant paint (safety yellow)
- 1 year standard warranty
- Shipment on domestic skid
-
O2 Service Cart, 4-Bottle- Rugged tubular steel frame
- Bottle restraint strap
- Oxygen delivery system with high quality regulator and gauges
- Oxygen hose includes AN800-3 (3/8-24 thread) oxygen charge adapter with dust plug
- Towbar with 3 inch ID lunette ring and parking brake
- Skydrol resistant paint (safety yellow)
- 1 year standard warranty
- Shipment on domestic skid
-
O2 Service Cart With Boost Pump- Rugged tubular steel frame
- Bottle restraint strap
- Oxygen delivery system with high quality regulator and gauges
- Oxygen hose includes AN800-3 (3/8-24 thread) oxygen charge adapter with dust plug
- Towbar with 3 inch ID lunette ring and parking brake
- Skydrol resistant paint (safety yellow)
- 1 year standard warranty
- Shipment on domestic skid
-
O2 Service Cart, 3-Bottle
- Rugged tubular steel frame
- Bottle restraint strap
- Oxygen delivery system with high quality regulator and gauges
- Oxygen hose includes AN800-3 (3/8-24 thread) oxygen charge adapter with dust plug
- Towbar with 3 inch ID lunette ring and parking brake
- Skydrol resistant paint (safety yellow)
- 1 year standard warranty
- Shipment on domestic skid
-
Looking For Custom Parts?
Contact Us -

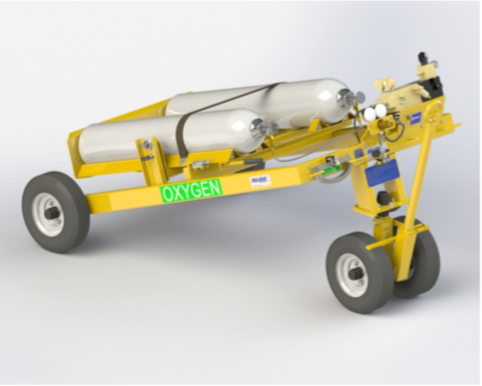

Cart, Oxygen- Bottle Frame - tilts up-right for ease of bottle removal and installation (Bottles not included) NOTE : Standard Gaseous Bottles are 9" to 10" diameter by 48" long.
- Towing Clevis - mounted on rear for axle jack towing and swings away for ease of bottle removal and installation
- Tow Bar - for ease of maneuvering. When stored in up-right lock position, the parking brake is actuated
- Four Wheel Design - for sharp turn stability and safety, with low center of gravity
- Delivery Capacity - Three (3) bottles delivering up to 3600 PSI which provides a maximum capacity of 1035 cubic feet of nitrogen through low and high pressure valves, gauges and hoses
- One (1) High Pressure Nylon Hose with Urethane cover. Meets or exceeds SAE 100R8. Includes CGA580 fittings. (NOTE : Oxygen charging fittings for Boeing aircraft are optional-P/N 7090-D)
- Tires - pneumatic tires to cushion and absorb shock
- Maximum Speed - 20 MPH (32 kmh) towing speed when bottles are secured properly
- Skydrol Resistant Yellow Paint
-

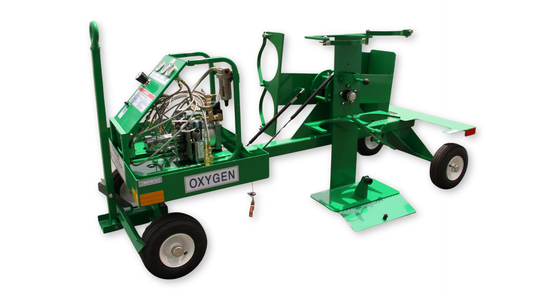

Tiltable Four Bottle Service Cart (manifold & high pressure regulator)- 4 hose manifold to connect bottles with CGA-540 fittings (see accessories)
- High pressure regulator (non venting) 15 to 2,500 psi (1 to 172 bar) certified gauge with 15 ft (4.6 m) #4 output hose with 37º JIC female swivel connector
- 30:1 volumetric displacement
- 20:1 maximum compression ratio
- Oxygen overpressure relief valve set at 2,700 psi (186 bar)
- Temperature range 0º to 200º F (-17.7º to 93.3º C)
- Operating instructions located on instrument panel
- In-line 15 micron nominal filter
- Sturdy welded steel construction
- Holds four, 9 in (23 cm) diameter oxygen bottles (bottles not included), maximum bottle pressure 2,250 psi (155 bar)
- 13 in (33 cm) diameter pneumatic tires
- Front wheels lock with towbar in upright position (OSHA Act 1970 Section 5(a) (1) - General Duty Clause - an employer has the general duty to provide a safe work environment free from known hazards. Potential movement of the cart on an uneven surface or incline is eliminated by the locking front wheels)
- Towbar with 23/16 in (5.6 cm) ID eyebolt
- Maximum towing speed 10 mph (16 km/hr)
- Hose storage compartment
- Reflectors to improve night visibility
- Low Profile
- CE marked
- Finish: Powder Coat Green
- Removable back stop adjusts to fit bottle lengths from 48 to 64 in (122 to 163 cm) to hold bottles securely in place - 20-4504-7000 & 20-4505-7000 ONLY
- 2,500 psi (172 bar) oxygen intensifier (booster)
- Intensifier (booster) automatically shuts down when the aircraft reaches set pressure
- Easy, one person loading and unloading of 9" diameter x 56" long cylinders, no muscle strains from picking up cylinders (OSHA Act 1970 Section 5(a)(1) - General Duty Clause and EU OSHA Directive 90/269/EEC - Manual Handling of Loads)
- Extremely easy rotation to horizontal in use position (OSHA Act 1970 Section 5(a)(1) - General Duty Clause and EU OSHA Directive 90/269/EEC - Manual Handling of Loads)
- Extra secure locking pivot point
Aircraft Applications: -
-
Vendor:TRONAIRTiltable Four Bottle Service Cart (booster, manifold & high pressure regulator) (CE)
20-4523-0000
Tiltable Four Bottle Service Cart (booster, manifold & high pressure regulator) (CE)- 4 hose manifold to connect bottles with CGA-540 fittings (see accessories)
- High pressure regulator (non venting) 15 to 2,500 psi (1 to 172 bar) certified gauge with 15 ft (4.6 m) #4 output hose with 37º JIC female swivel connector
- 30:1 volumetric displacement
- 20:1 maximum compression ratio
- Oxygen overpressure relief valve set at 2,700 psi (186 bar)
- Temperature range 0º to 200º F (-17.7º to 93.3º C)
- Operating instructions located on instrument panel
- In-line 15 micron nominal filter
- Sturdy welded steel construction
- Holds four, 9 in (23 cm) diameter oxygen bottles (bottles not included), maximum bottle pressure 2,250 psi (155 bar)
- 13 in (33 cm) diameter pneumatic tires
- Front wheels lock with towbar in upright position (OSHA Act 1970 Section 5(a) (1) - General Duty Clause - an employer has the general duty to provide a safe work environment free from known hazards. Potential movement of the cart on an uneven surface or incline is eliminated by the locking front wheels)
- Towbar with 23/16 in (5.6 cm) ID eyebolt
- Maximum towing speed 10 mph (16 km/hr)
- Hose storage compartment
- Reflectors to improve night visibility
- Low Profile
- CE marked
- Finish: Powder Coat Green
- Removable back stop adjusts to fit bottle lengths from 48 to 64 in (122 to 163 cm) to hold bottles securely in place - 20-4504-7000 & 20-4505-7000 ONLY
- 2,500 psi (172 bar) oxygen intensifier (booster)
- Intensifier (booster) automatically shuts down when the aircraft reaches set pressure
- Easy, one person loading and unloading of 9" diameter x 56" long cylinders, no muscle strains from picking up cylinders (OSHA Act 1970 Section 5(a)(1) - General Duty Clause and EU OSHA Directive 90/269/EEC - Manual Handling of Loads)
- Extremely easy rotation to horizontal in use position (OSHA Act 1970 Section 5(a)(1) - General Duty Clause and EU OSHA Directive 90/269/EEC - Manual Handling of Loads)
- Extra secure locking pivot point
Aircraft Applications: -
-
