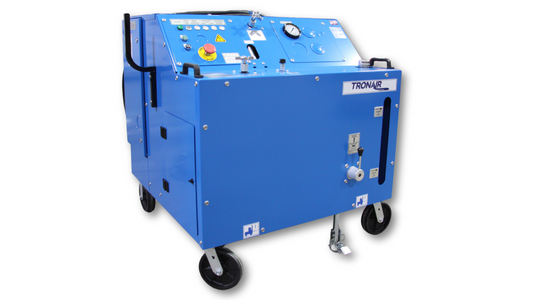

(New HPU) Hydraulic Coupling Kit
- Adjustable working pressure
- 3 phase, electric motor available in 10 voltages (50 or 60 Hz)
- Adjustable pressure compensated, variable voltage, piston pump
- 30 gal (114 l) stainless steel reservoir with desiccant air filtration
- Large oil cooler with 3 phase electric fan (16,000 btu/hr cooling capacity)
- High efficiency, non-bypassing pressure filter with 2-micron absolute, Microglass III element (Beta rating > 1,000 based on ISO 4572)
- Large capacity return filter with 5 micron absolute, Microglass III element (Beta rating > 200 based on ISO 4572)
- Easy access fluid sampling valve (meets ANSI T2.24.1-1991)
- 1-15 gpm (4-56 lpm) dual scale flow meter
- 52 Series - Standard 15 ft (4.57 m) pressure and return hoses
- Standard 50 ft (15.24 m) input power cord without input plug
- Finish: Durable Powder Coat Tronair Blue
- Length: 54 in (137 cm)
- Width: 51 in (130 cm)
- Height: 50 in (127 cm)
- HPU Quick Select Chart (P
-
Hydraulic Power Unit, 52 Series (CE) (base model)
- Adjustable working pressure
- 3 phase, electric motor available in 10 voltages (50 or 60 Hz)
- Adjustable pressure compensated, variable voltage, piston pump
- 30 gal (114 l) stainless steel reservoir with desiccant air filtration
- Large oil cooler with 3 phase electric fan (16,000 btu/hr cooling capacity)
- High efficiency, non-bypassing pressure filter with 2-micron absolute, Microglass III element (Beta rating > 1,000 based on ISO 4572)
- Large capacity return filter with 5 micron absolute, Microglass III element (Beta rating > 200 based on ISO 4572)
- Easy access fluid sampling valve (meets ANSI T2.24.1-1991)
- 1-15 gpm (4-56 lpm) dual scale flow meter
- 52 Series - Standard 15 ft (4.57 m) pressure and return hoses
- Standard 50 ft (15.24 m) input power cord without input plug
- Finish: Durable Powder Coat Tronair Blue
- Length: 54 in (137 cm)
- Width: 51 in (130 cm)
- Height: 50 in (127 cm)
- HPU Quick Select Chart (P
Aircraft Applications: -
Tiltable Four Bottle Service Cart (manifold & high pressure regulator)
- 4 hose manifold to connect bottles with CGA-540 fittings (see accessories)
- High pressure regulator (non venting) 15 to 2,500 psi (1 to 172 bar) certified gauge with 15 ft (4.6 m) #4 output hose with 37º JIC female swivel connector
- 30:1 volumetric displacement
- 20:1 maximum compression ratio
- Oxygen overpressure relief valve set at 2,700 psi (186 bar)
- Temperature range 0º to 200º F (-17.7º to 93.3º C)
- Operating instructions located on instrument panel
- In-line 15 micron nominal filter
- Sturdy welded steel construction
- Holds four, 9 in (23 cm) diameter oxygen bottles (bottles not included), maximum bottle pressure 2,250 psi (155 bar)
- 13 in (33 cm) diameter pneumatic tires
- Front wheels lock with towbar in upright position (OSHA Act 1970 Section 5(a) (1) - General Duty Clause - an employer has the general duty to provide a safe work environment free from known hazards. Potential movement of the cart on an uneven surface or incline is eliminated by the locking front wheels)
- Towbar with 23/16 in (5.6 cm) ID eyebolt
- Maximum towing speed 10 mph (16 km/hr)
- Hose storage compartment
- Reflectors to improve night visibility
- Low Profile
- CE marked
- Finish: Powder Coat Green
- Removable back stop adjusts to fit bottle lengths from 48 to 64 in (122 to 163 cm) to hold bottles securely in place - 20-4504-7000 & 20-4505-7000 ONLY
- 2,500 psi (172 bar) oxygen intensifier (booster)
- Intensifier (booster) automatically shuts down when the aircraft reaches set pressure
- Easy, one person loading and unloading of 9" diameter x 56" long cylinders, no muscle strains from picking up cylinders (OSHA Act 1970 Section 5(a)(1) - General Duty Clause and EU OSHA Directive 90/269/EEC - Manual Handling of Loads)
- Extremely easy rotation to horizontal in use position (OSHA Act 1970 Section 5(a)(1) - General Duty Clause and EU OSHA Directive 90/269/EEC - Manual Handling of Loads)
- Extra secure locking pivot point
Aircraft Applications: -
Vendor:TRONAIR
Tiltable Four Bottle Service Cart (booster, manifold & high pressure regulator) (CE)
20-4523-0000
Tiltable Four Bottle Service Cart (booster, manifold & high pressure regulator) (CE)- 4 hose manifold to connect bottles with CGA-540 fittings (see accessories)
- High pressure regulator (non venting) 15 to 2,500 psi (1 to 172 bar) certified gauge with 15 ft (4.6 m) #4 output hose with 37º JIC female swivel connector
- 30:1 volumetric displacement
- 20:1 maximum compression ratio
- Oxygen overpressure relief valve set at 2,700 psi (186 bar)
- Temperature range 0º to 200º F (-17.7º to 93.3º C)
- Operating instructions located on instrument panel
- In-line 15 micron nominal filter
- Sturdy welded steel construction
- Holds four, 9 in (23 cm) diameter oxygen bottles (bottles not included), maximum bottle pressure 2,250 psi (155 bar)
- 13 in (33 cm) diameter pneumatic tires
- Front wheels lock with towbar in upright position (OSHA Act 1970 Section 5(a) (1) - General Duty Clause - an employer has the general duty to provide a safe work environment free from known hazards. Potential movement of the cart on an uneven surface or incline is eliminated by the locking front wheels)
- Towbar with 23/16 in (5.6 cm) ID eyebolt
- Maximum towing speed 10 mph (16 km/hr)
- Hose storage compartment
- Reflectors to improve night visibility
- Low Profile
- CE marked
- Finish: Powder Coat Green
- Removable back stop adjusts to fit bottle lengths from 48 to 64 in (122 to 163 cm) to hold bottles securely in place - 20-4504-7000 & 20-4505-7000 ONLY
- 2,500 psi (172 bar) oxygen intensifier (booster)
- Intensifier (booster) automatically shuts down when the aircraft reaches set pressure
- Easy, one person loading and unloading of 9" diameter x 56" long cylinders, no muscle strains from picking up cylinders (OSHA Act 1970 Section 5(a)(1) - General Duty Clause and EU OSHA Directive 90/269/EEC - Manual Handling of Loads)
- Extremely easy rotation to horizontal in use position (OSHA Act 1970 Section 5(a)(1) - General Duty Clause and EU OSHA Directive 90/269/EEC - Manual Handling of Loads)
- Extra secure locking pivot point
Aircraft Applications: -
Vendor:TRONAIR
Four Bottle Oxygen Service Cart (booster, manifold & high pressure regulator) (CE)
20-4505-7000
Four Bottle Oxygen Service Cart (booster, manifold & high pressure regulator) (CE)- 4 hose manifold to connect bottles with CGA-540 fittings (see accessories)
- High pressure regulator (non venting) 15 to 2,500 psi (1 to 172 bar) certified gauge with 15 ft (4.6 m) #4 output hose with 37º JIC female swivel connector
- 30:1 volumetric displacement
- 20:1 maximum compression ratio
- Oxygen overpressure relief valve set at 2,700 psi (186 bar)
- Temperature range 0º to 200º F (-17.7º to 93.3º C)
- Operating instructions located on instrument panel
- In-line 15 micron nominal filter
- Sturdy welded steel construction
- Holds four, 9 in (23 cm) diameter oxygen bottles (bottles not included), maximum bottle pressure 2,250 psi (155 bar)
- 13 in (33 cm) diameter pneumatic tires
- Front wheels lock with towbar in upright position (OSHA Act 1970 Section 5(a) (1) - General Duty Clause - an employer has the general duty to provide a safe work environment free from known hazards. Potential movement of the cart on an uneven surface or incline is eliminated by the locking front wheels)
- Towbar with 23/16 in (5.6 cm) ID eyebolt
- Maximum towing speed 10 mph (16 km/hr)
- Hose storage compartment
- Reflectors to improve night visibility
- Low Profile
- CE marked
- Finish: Powder Coat Green
- Removable back stop adjusts to fit bottle lengths from 48 to 64 in (122 to 163 cm) to hold bottles securely in place - 20-4504-7000 & 20-4505-7000 ONLY
- 2,500 psi (172 bar) oxygen intensifier (booster)
- Intensifier (booster) automatically shuts down when the aircraft reaches set pressure
-
Looking For Custom Parts?
Contact Us -
Four Bottle Cart (manifold, high & low pressure regulator)
- 4 hose manifold to connect bottles with CGA-540 fittings (see accessories)
- High pressure regulator (non venting) 15 to 2,500 psi (1 to 172 bar) certified gauge with 15 ft (4.6 m) #4 output hose with 37º JIC female swivel connector
- 30:1 volumetric displacement
- 20:1 maximum compression ratio
- Oxygen overpressure relief valve set at 2,700 psi (186 bar)
- Temperature range 0º to 200º F (-17.7º to 93.3º C)
- Operating instructions located on instrument panel
- In-line 15 micron nominal filter
- Sturdy welded steel construction
- Holds four, 9 in (23 cm) diameter oxygen bottles (bottles not included), maximum bottle pressure 2,250 psi (155 bar)
- 13 in (33 cm) diameter pneumatic tires
- Front wheels lock with towbar in upright position (OSHA Act 1970 Section 5(a) (1) - General Duty Clause - an employer has the general duty to provide a safe work environment free from known hazards. Potential movement of the cart on an uneven surface or incline is eliminated by the locking front wheels)
- Towbar with 23/16 in (5.6 cm) ID eyebolt
- Maximum towing speed 10 mph (16 km/hr)
- Hose storage compartment
- Reflectors to improve night visibility
- Low Profile
- CE marked
- Finish: Powder Coat Green
- Removable back stop adjusts to fit bottle lengths from 48 to 64 in (122 to 163 cm) to hold bottles securely in place - 20-4504-7000 & 20-4505-7000 ONLY
-
-
Oxygen Booster (Maximum 2,200 psi/152 bar) (CE)
- CE marked
- 2,200 psi (151.7 bar) maximum output pressure
- 30:1 volumetric displacement
- 20:1 maximum compression ratio
- Shop air required 80 cfm (37.8 lps) at 90 psi (6.2 bar)
- 0-5,000 psi (0-345 bar) certified supply gauge
- 0-3,000 psi (0-207 bar) certified aircraft pressure gauge
- 0-160 psi (0-11 bar) certified shop air regulator gauge
- Temperature range 0º to 200º F (17.7º to 93.3º C)
- 15 ft (4.6 m) #4 stainless steel braided hose with 37º JIC female swivel connector
- In-line 15 micron nominal filter
- Booster automatically shuts down when aircraft reaches set pressure
- Finish: Powder Coat Green
-
Vendor:TRONAIR
Potable Water Cart, Cold Weather (31 gal/117) fill reservoir (unit includes coupling)
19-4306-0000
Potable Water Cart, Cold Weather (31 gal/117) fill reservoir (unit includes coupling)- Operates by 12 VDC electric battery with built in charger
- 4.5 gpm (17 lpm) electric pump
- Available in 50 and 60 Hz.
- Meets recognized health organization standards
- Cold weather carts are protected with insulated sheet metal and a 110 volt mat heater
- High density polyethlene tank with UV inhibitor
- Tank access opening for cleaning or bottle water filling
- 15 ft (4.6 m) output hose with potable water coupling
- Front wheels lock with towbar in upright position
- Sturdy welded steel portable water cart
- Finish: Durable Powder Coat Tronair Blue
Aircraft Applications: -
Vendor:TRONAIR
Potable Water Cart, Standard (31 gal/117) fill reservoir (CE) (unit includes coupling)
19-4305-0000
Potable Water Cart, Standard (31 gal/117) fill reservoir (CE) (unit includes coupling)- Operates by 12 VDC electric battery with built in charger
- 4.5 gpm (17 lpm) electric pump
- Available in 50 and 60 Hz.
- Meets recognized health organization standards
- Cold weather carts are protected with insulated sheet metal and a 110 volt mat heater
- High density polyethlene tank with UV inhibitor
- Tank access opening for cleaning or bottle water filling
- 15 ft (4.6 m) output hose with potable water coupling
- Front wheels lock with towbar in upright position
- Sturdy welded steel portable water cart
- Finish: Durable Powder Coat Tronair Blue
Aircraft Applications: -
Vendor:TRONAIR
Tiltable Four Bottle Service Cart (with manifold, high & low pressure regulators)
18-4318-0000
Tiltable Four Bottle Service Cart (with manifold, high & low pressure regulators)- 4 hose manifold to connect bottles with CGA-580 fittings (see accessories)
- High pressure regulator 25 to 4,000 psi (1.7 to 276 bar) certified gauge with 15 ft (4.6 m) #4 output hose
- Low pressure regulator 0 to 500 psi (.2 to 34.5 bar) certified gauge with 15 ft (4.6 m) #4 output hose
- Temperature range 0º to 200º F (17.7º to 93.3º C)
- Operating instructions located on instrument panel
- Sturdy welded steel constrution
- Holds four 9 inch (23 cm) diameter nitrogen bottles (bottles not included)
- 13 in (33 cm) diameter pneumatic tires
- Front wheels lock with towbar in upright position (OSHA Act 1970 Section 5(a) (1) - General Duty Clause - an employer has the general duty to provide a safe work environment free from known hazards. Potential movement of the cart on an uneven surface or incline is eliminated by the locking front wheels)
- Movable back stop adjusts to fit bottle lengths from 48 to 64 in (122 to 163 cm) to hold bottles securely in place
- Towbar with 2-3/16 in (5.6 cm) ID eyebolt
- Maximum towing speed 10 mph (16 km/hr)
- Hose storage compartment
- Reflectors to improve night visibility
- Low Profile
- CE marked
- Custom Colors Available
- Easy, one person loading and unloading of cylinders, no muscle strains from picking up cylinders (OSHA Act 1970 Section 5(a)(1) - General Duty Clause and EU OSHA Directive 90/269/EEC - Manual Handling of Loads)
- Extremely easy rotation to horizontal in use position (OSHA Act 1970 Section 5(a)(1) - General Duty Clause and EU OSHA Directive 90/269/EEC - Manual Handling of Loads)
- Extra secure locking pivot point
- Easy and affordable conversion from exsisting Tronair cart
Aircraft Applications:
