Showing 1 - 9 of 9
-
(NEW HPU) Hydraulic Coupling Kit- Adjustable working pressure
- 3 phase, electric motor available in 6 voltages (50 or 60 Hz)
- Adjustable pressure compensated, variable volume, piston pump
- 150 gal (568 l) stainless steel reservoir with desiccant air filtration canister
- Large oil cooler with 3 phase electric fan (48,000 btu/hr cooling capacity)
- High efficiency, non-bypassing pressure filter with 2-micron absolute, Microglass III element (Beta rating > 400 based on ISO 4572)
- Large capacity return filter with 5 micron absolute, Microglass III element (Beta rating > 300 based on ISO 4572)
- Easy access fluid sampling valve (meets ANSI T2.24.1-1991)
- 2.5-80 gpm (10-300 lpm) dual scale flow meter
- Dual scale pressure gauge
- Standard 25 ft (7.62 m) pressure and return hoses
- Standard 50 ft (15.24 m) input power cord without input plug
- High fluid temperature (>160° F) shut off switch with LED indicator light
- 30-240° F (0-115° C) dual scale pyrometer
- Hourmeter
- Electric Soft Start (optional)
- Finish: Durable Powder Coat Tronair Blue
- Length: 101 in (257 cm)
- 116 in (295 cm) with option N - Towing Trailer Package
- Width: 82 in (208 cm)
- 89 in (226 cm) with option C - Split System
- Height: 62.5 in (159 cm)
- 71 in (181 cm) with option N - Towing Trailer Package
-
(NEW HPU) Hydraulic Coupling Kit- Adjustable working pressure
- 3 phase, electric motor available in 6 voltages (50 or 60 Hz)
- Adjustable pressure compensated, variable volume, piston pump
- 150 gal (568 l) stainless steel reservoir with desiccant air filtration canister
- Large oil cooler with 3 phase electric fan (48,000 btu/hr cooling capacity)
- High efficiency, non-bypassing pressure filter with 2-micron absolute, Microglass III element (Beta rating > 400 based on ISO 4572)
- Large capacity return filter with 5 micron absolute, Microglass III element (Beta rating > 300 based on ISO 4572)
- Easy access fluid sampling valve (meets ANSI T2.24.1-1991)
- 2.5-80 gpm (10-300 lpm) dual scale flow meter
- Dual scale pressure gauge
- Standard 25 ft (7.62 m) pressure and return hoses
- Standard 50 ft (15.24 m) input power cord without input plug
- High fluid temperature (>160° F) shut off switch with LED indicator light
- 30-240° F (0-115° C) dual scale pyrometer
- Hourmeter
- Electric Soft Start (optional)
- Finish: Durable Powder Coat Tronair Blue
- Length: 101 in (257 cm)
- 116 in (295 cm) with option N - Towing Trailer Package
- Width: 82 in (208 cm)
- 89 in (226 cm) with option C - Split System
- Height: 62.5 in (159 cm)
- 71 in (181 cm) with option N - Towing Trailer Package
-
-
Hydraulic Power Unit, Diesel Engine Driven, 69 Series (CE)- 63 gpm, 5000 psi, flow and pressure ratings
- 24 volt, dual battery for cold weather starts
- 125 gallon stainless steel hydraulic reservoir with desiccant breather, drain valve, and air removal system
- Bright LED lighting on engine and hydraulic instrument panels, and unit corner lights for night operation
- Bypass Valve for loading and unloading
- Convenient hangers and trays to hold and contain the hydraulic hoses when not in use on the aircraft
- FPT, 6.7 liter, turbocharged, after cooled, 6 cylinder, 200 bhp, 1800 rpm diesel engine
- Dual system with 50' (15 m) pressure and return hoses
- Easy access, light weight, removable pin hinged panels for full access to all maintenance components
- Engine grid heater for cold weather system
- Engine system monitor
- Electric reservoir fill pump with 2 micron filter and 50' (15 m) hose
- Hydraulic fluid sample port for contamination testing
- Hydraulic System Meters: Digital (0.25% FS) flow meter, digital (0.25% FS) pressure gauge, digital (0.5% FS) temperature gauge
- Hydraulic system open or closed loop
- Large 35 gallon fuel tank for 12+ hours of use
- Large forced air hydraulic heat exchanger, thermostat controlled cooling system
- Powder coated Skydrol and UV resistant painted steel panels
- Pressure control potentiometer, flow control valve
- Pressure Filtration: 2 micron, non-bypass type (beta rating >200 @ 2 micron)
- Return Filtration: 5 micron, bypass type (beta rating > 300 @ 5 micron)
- Ruggedized frame with enclosed fork lift tubes and 10,000 lb tie down rings
- Running gear rated for 10,000 lbs. and 10 mph, Four wheel Ackerman steering with leaf spring trailer towing system with two wheel parking brake
- Selector Valve to select between aircraft or HPU reservoir
- User friendly engine and hydraulic control panel for easy operation
- Hydraulic high and low reservoir shutoff feature with LED warning and indicating lights (panel and stack)
- Hydraulic high temperature shutoff feature (160º F) with LED warning and indicating lights (panel and stack)
- Engine no fuel and low fuel, high temperature, and low oil pressure LED indicating lights (panel and stack)
- Fuel/water separator with water-in-fuel (WIF) sensor
- Low coolant shut down system
- Pressure filter clogging indicator LED light with reset button
- Emergency stop button, system pressure relief valve, maintenance only access panels, return system pressure relief valve, automatic warning and shutdown systems
- Finish: Durable Powder Coat Tronair Blue
-
Hydraulic Power Unit, 59 Series with soft-start (CE) (60 hz countries)- Adjustable working pressure
- 3 phase, electric motor available in 6 voltages (50 or 60 Hz)
- Adjustable pressure compensated, variable volume, piston pump
- 150 gal (568 l) stainless steel reservoir with desiccant air filtration canister
- Large oil cooler with 3 phase electric fan (48,000 btu/hr cooling capacity)
- High efficiency, non-bypassing pressure filter with 2-micron absolute, Microglass III element (Beta rating > 400 based on ISO 4572)
- Large capacity return filter with 5 micron absolute, Microglass III element (Beta rating > 300 based on ISO 4572)
- Easy access fluid sampling valve (meets ANSI T2.24.1-1991)
- 2.5-80 gpm (10-300 lpm) dual scale flow meter
- Dual scale pressure gauge
- Standard 25 ft (7.62 m) pressure and return hoses
- Standard 50 ft (15.24 m) input power cord without input plug
- High fluid temperature (>160° F) shut off switch with LED indicator light
- 30-240° F (0-115° C) dual scale pyrometer
- Hourmeter
- Electric Soft Start (optional)
- Finish: Durable Powder Coat Tronair Blue
- Length: 101 in (257 cm)
- 116 in (295 cm) with option N - Towing Trailer Package
- Width: 82 in (208 cm)
- 89 in (226 cm) with option C - Split System
- Height: 62.5 in (159 cm)
- 71 in (181 cm) with option N - Towing Trailer Package
Aircraft Applications: -
Hydraulic Power Unit, 5L Series (CE) (50 hz countries)
- Adjustable working pressure
- 3 phase, electric motor available in 6 voltages (50 or 60 Hz)
- Adjustable pressure compensated, variable volume, piston pump
- 150 gal (568 l) stainless steel reservoir with desiccant air filtration canister
- Large oil cooler with 3 phase electric fan (48,000 btu/hr cooling capacity)
- High efficiency, non-bypassing pressure filter with 2-micron absolute, Microglass III element (Beta rating > 400 based on ISO 4572)
- Large capacity return filter with 5 micron absolute, Microglass III element (Beta rating > 300 based on ISO 4572)
- Easy access fluid sampling valve (meets ANSI T2.24.1-1991)
- 2.5-80 gpm (10-300 lpm) dual scale flow meter
- Dual scale pressure gauge
- Standard 25 ft (7.62 m) pressure and return hoses
- Standard 50 ft (15.24 m) input power cord without input plug
- High fluid temperature (>160° F) shut off switch with LED indicator light
- 30-240° F (0-115° C) dual scale pyrometer
- Hourmeter
- Electric Soft Start (optional)
- Finish: Durable Powder Coat Tronair Blue
- Length: 101 in (257 cm)
- 116 in (295 cm) with option N - Towing Trailer Package
- Width: 82 in (208 cm)
- 89 in (226 cm) with option C - Split System
- Height: 62.5 in (159 cm)
- 71 in (181 cm) with option N - Towing Trailer Package
Aircraft Applications: -
Looking For Custom Parts?
Contact Us -
Engine Compressor Washer Cart (CE)- Stainless steel fluid tanks with large fill ports, bleed-off valve and safety pop-off valve
- Operates off 125 psi (8.6 bar) shop air
- Pressure regulator with certified pressure gauge provided for flow control
- Solution agitation circuit
- 2 - ASME certified steel compressed air storage tanks with drain valves (1 on 08-4048-0013, 0 on 08-4059-0013)
- Sturdy welded steel frame
- 20 ft (6 m) output hose
- Foot brake
- Finish: Durable Powder Coat Tronair Blue
- 4 ft (1.2 m) wand assembly with shut-off valve and 4 spray nozzles: 1.5, 3, 6, and 10 gpm (6, 11, 23, and 38 lpm)
Aircraft Applications: -

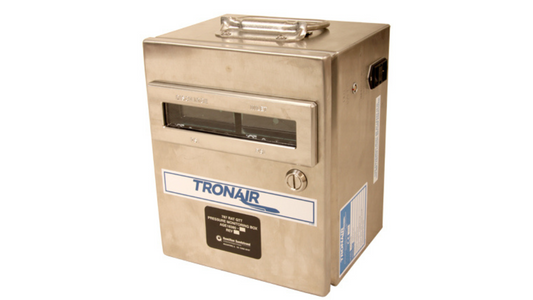

GTT Pressure Monitoring Box- Required for use with AGE17077B, may also be used with AGE17078, AGE17079A, AGE17080A
- Accurately monitor and readout inlet and discharge pressure at the GTT
- Phosphate Ester resistant heavy duty stainless steel enclosure
- Phosphate Ester resistant external cables and hardware
- Large calibrated, digital displays for easy readouts
- 30 ft (10 m) harness
- Large inlet and discharge cable labels for easy identification
- Universal input power, 90VAC - 240VAC, 50Hz - 60 Hz
- 9 ft (3 m) North American power cord
- 9 ft (3 m) international power cord
- Cable storage in unit
- Cable test port
- Screw on J3 connectors ensure a secure fit and connection
- Portable, lightweight and compact tool
- Ergonomic handle for easy transport
- Wiring connection diagram
-
Ram Air Turbine (RAT) Test Equipment- The RAT Test Tool, powered by a suitable hydraulic cart, is used to back drive the RAT during ground testing
- The hydraulic motor provides power and speed capabilities consistent with the requirements of the ground test procedures
- 20 ft (6.1 m) long pressure supply and return hoses
- Heavy duty case - may be used for easy shipping and storage
Aircraft Applications:
