Showing 1 - 12 of 23
-
-
-
Hydraulic Power Unit, 52 Series (CE)- Adjustable working pressure
- 3 phase, electric motor available in 10 voltages (50 or 60 Hz)
- Adjustable pressure compensated, variable voltage, piston pump
- 30 gal (114 l) stainless steel reservoir with desiccant air filtration
- Large oil cooler with 3 phase electric fan (16,000 btu/hr cooling capacity)
- High efficiency, non-bypassing pressure filter with 2-micron absolute, Microglass III element (Beta rating > 1,000 based on ISO 4572)
- Large capacity return filter with 5 micron absolute, Microglass III element (Beta rating > 200 based on ISO 4572)
- Easy access fluid sampling valve (meets ANSI T2.24.1-1991)
- 1-15 gpm (4-56 lpm) dual scale flow meter
- 52 Series - Standard 15 ft (4.57 m) pressure and return hoses
- Standard 50 ft (15.24 m) input power cord without input plug
- Finish: Durable Powder Coat Tronair Blue
- Length: 54 in (137 cm)
- Width: 51 in (130 cm)
- Height: 50 in (127 cm)
- HPU Quick Select Chart (P
Aircraft Applications: -
400 Hz AC, 90kVA, 28.5 VDC Diesel GPU (CE)- Powered by the award winning Doosan Tier 4f electronic engine with full-authority electronic controls for more precise control over the performance of the engine
- Extended service intervals using extended filters and lubricants, up to 500 hours between scheduled service
- Engine operates with Ultra-low Sulphur Diesel fuel
- Fuel/water separator with water-in-fuel sensor and electronic indication
- Large 35 gallon, high density cross-linked polyethylene fuel tank for 8+ hours of use
- Low fuel warning and no fuel shutdown system
- Shut down on low oil pressure and high engine temperature commonly seen listed as (LOP/HET protection)
- 12 volt control and starting circuitry for easy cold weather starting
- Automated glow plug control for cold weather starting
- Large engine Digital Display and Diagnostics module (DDD), this is a multi-function tool to view engine parameters and fault codes
- Automatic 60 second power off delay engine shutdown for turbo protection
- 3 year engine warranty
- Powerful 80kw, AVR and 90kVA alternator with SCR regulation
- Maintenance free, long life single bearing
- Automatic output build-up and protection
- Cable head sensing and output drop compensation system ensures full power is provided to aircraft
- Aircraft cable head interlock circuit
- Wiring and color code in accordance with CE, NFPA and NEC
- 30 ft (9.1 m) AC output cable
- Durable, compact, maneuverable, trailer mounted unit with fifth wheel steering
- Front wheel scrub brake for simplicity
- Weather resistant powder coated sheet metal to prevent corrosion
- Corner lights and stack light
- Large cable trays for easy cable stowage
- Finish: Durable Powder Coat Tronair Blue
- CE marked
- Unit allows simultaneous use of 400 Hz AC and 28.5 VDC
- Powerful 80kw, AVR and 90kVA alternator with SCR regulation and ripple filter for ultra low DC output ripple
- Adjustable peak output current limiting control, 2,000 amp peak, 600 amp continuous output
- 30 ft (9 cm) DC output cable
- Standard Cold Weather Features:
- 120 V Block Heater
- Larger capacity starting battery 900 CCA AGM type battery
- Automatic Glow Plugs
- Insulation package for the engine enclosure and sound dampening
-
400 Hz AC, 90kVA Diesel GPU (CE)- Powered by the award winning Doosan Tier 4f electronic engine with full-authority electronic controls for more precise control over the performance of the engine
- Extended service intervals using extended filters and lubricants, up to 500 hours between scheduled service
- Engine operates with Ultra-low Sulphur Diesel fuel
- Fuel/water separator with water-in-fuel sensor and electronic indication
- Large 35 gallon, high density cross-linked polyethylene fuel tank for 8+ hours of use
- Low fuel warning and no fuel shutdown system
- Shut down on low oil pressure and high engine temperature commonly seen listed as (LOP/HET protection)
- 12 volt control and starting circuitry for easy cold weather starting
- Automated glow plug control for cold weather starting
- Large engine Digital Display and Diagnostics module (DDD), this is a multi-function tool to view engine parameters and fault codes
- Automatic 60 second power off delay engine shutdown for turbo protection
- 3 year engine warranty
- Powerful 80kw, AVR and 90kVA alternator with SCR regulation
- Maintenance free, long life single bearing
- Automatic output build-up and protection
- Cable head sensing and output drop compensation system ensures full power is provided to aircraft
- Aircraft cable head interlock circuit
- Wiring and color code in accordance with CE, NFPA and NEC
- 30 ft (9.1 m) AC output cable
- Durable, compact, maneuverable, trailer mounted unit with fifth wheel steering
- Front wheel scrub brake for simplicity
- Weather resistant powder coated sheet metal to prevent corrosion
- Corner lights and stack light
- Large cable trays for easy cable stowage
- Finish: Durable Powder Coat Tronair Blue
- CE marked
- Standard Cold Weather Features:
- 120 V Block Heater
- Larger capacity starting battery 900 CCA AGM type battery
- Automatic Glow Plugs
- Insulation package for the engine enclosure and sound dampening
-
Vendor:TRONAIRTier 4, 28.5 Diesel GPU (28.5 vdc, 600 continuous, 2,000 amp peak) (CE)
11-2820-0000
Tier 4, 28.5 Diesel GPU (28.5 vdc, 600 continuous, 2,000 amp peak) (CE)- Powered by the award winning Doosan Tier 4f electronic engine with full-authority electronic controls for more precise control over the performance of the engine
- Extended service intervals using extended service filters and lubricants, up to 500 hours between scheduled service
- Engine operates with Ultra-low Sulphur Diesel fuel
- Fuel/water separator with water-in-fuel sensor and electronic indication
- Large 35 gallon, high density cross-linked polyethylene fuel tank for 26 + hours of use
- Low fuel warning and no fuel shutdown system
- Shut down on low oil pressure and high engine temperature commonly seen listed as (LOP/HET protection)
- 12 volt control and starting circuitry for easy cold weather starting
- Automated glow plug control for cold weather starting
- Large engine Digital Display and Diagnostics module (DDD), this is a multi-function tool to view engine parameters and fault codes
- Automatic 60 second power off delay engine shutdown for turbo protection
- 3 year engine warranty
- Powerful 38kw, six phase alternator, rectifier and ripple filter for ultra low DC output ripple
- Maintenance free, long life single bearing
- Automatic voltage build-up and protection
- Adjustable peak output current limiting control, 2,000 amp peak, 600 amp continuous output
- Cable head voltage sensing and output voltage drop compensation system ensures full power is provided to aircraft
- Aircraft cable head interlock circuit
- Wiring and color code in accordance with CE, NFPA and NEC
- 30 ft (9.1 m) DC output cable
- Durable, compact, maneuverable, trailer mounted unit with fifth wheel steering
- Front wheel scrub brake for simplicity
- Weather resistant powder coated sheet metal to prevent corrosion
- Corner lights and stack light
- Large cable trays for easy cable stowage
- Finish: Durable Powder Coat Tronair Blue
- Standard Cold Weather Features:
- 120 V Block Heater
- Larger capacity starting battery 900 CCA AGM type battery
- Automatic Glow Plugs
- Insulation package for the engine enclosure and sound dampening
-
Looking For Custom Parts?
Contact Us -
-
-

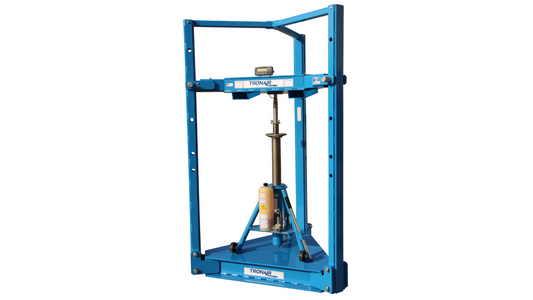

Portable Tripod Jack Proof Load Tester (CE)- Digital readout of load
- 70,000 lb maximum load capacity
- Finish: Durable Powder Coat Tronair Blue
- The Portable Tripod Jack Proof Load Tester is designed to test the hydraulic load and pressure relief valve of tripod jacks (of the following base model number):
- 02-0222-0111, 02-0234-0111, 02-0511C0132, 02-0517C0140,
- 02-0520C0110, 02-0522C0141, 02-0524C0110, 02-0526C0110,
- 02-0527C0140, 02-0536C0110, 02-0540C0110, 02-0544C0110,
- 02-0566C0110, 02-1032C0111, 02-1036C0111, 02-1040C0111,
- 02-1240C0111, 02-1248C0112, 02C1256-0111, 02-2560C0111,
- 02-7800C0110, 02-7802C0111, 02-7803C0111, 02-7804C0110,
- 02-7805C0111, 02-7809C0110, 02-7810C0111, 02-7812C0110,
- 02-7815C0110, 02-7822C0110, 02-7823C0110, 02-7827C0110,
- 02-7828C0110, 02-7837C0110, 02-7838C0110, 02-7839C0111,
- 02-7844C0111, 02-7845-0120, 02-7848-0120, 02-7849-0120,
- 02A7950C0100, 02-7851C0111, 02-7855C0100, 02-7856C0100, 02A7858-0100,
- 02-7865C0100, 02A7874C0110, 02A7885C0100, 02A7886C0100,
- 02-7898C0100, 02-7899C0100, 02A7904C0100, 02A7912C0100,
- 02A7913C0100,02A7917C0100, 02A7917C0150, 02-7928C0100,
- 02A7930C0100, 02-8130C0100
-
Axle Jack (12 ton/10.8 metric ton) (CE)- Hand pump with pressure relief valve
- Easy access filler/breather cap that can be sealed to avoid spills
- Spacer blocks provide easy adjustment of closed height (included with some models)
- Finish: Painted Blue
- Approved Aircraft Axle Jack - insert a "C" as the eighth digit, (e.g. 02-7813C0100)
Aircraft Applications: -

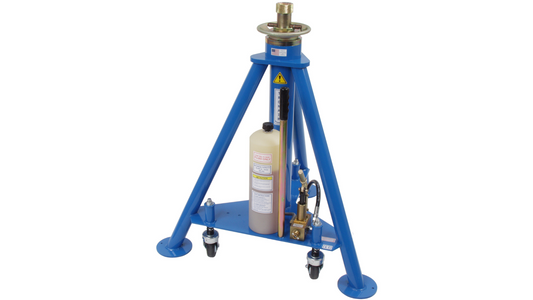

Aft Fuselage Jack (10 ton/9 metric ton) (CE)- Hand Pump with built-in pressure relief valve
- Threaded rams with improved hand wheel style safety nut
- Quick rising center extension
- Easy access filler/breather cap
- Heavy-duty wheels on all aircraft tripod jacks where spring loaded casters are not standard
- Hydraulic fluid: MIL-PRF-5606
- 3/4 in (2 cm) spherical radius cup jack pad
- Finish: Durable Powder Coat Tronair Blue
- Approved Jack - insert a "C" as the eighth digit, (e.g. 02-0517C0140)
Aircraft Applications: -

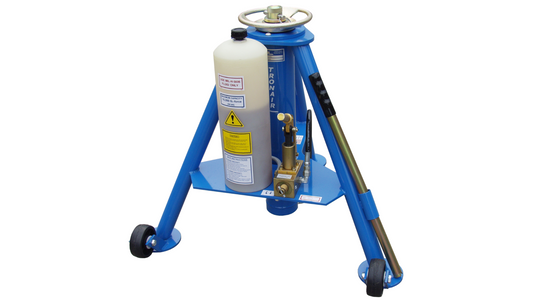

Forward Jack (5 ton) (CE)
- Hand Pump with built-in pressure relief valve
- Threaded rams with improved hand wheel style safety nut
- Quick rising center extension
- Easy access filler/breather cap
- Heavy-duty wheels on all aircraft tripod jacks where spring loaded casters are not standard
- Hydraulic fluid: MIL-PRF-5606
- 3/4 in (2 cm) spherical radius cup jack pad
- Finish: Durable Powder Coat Tronair Blue
- Approved Jack - insert a "C" as the eighth digit, (e.g. 02-0517C0140)
