Vendor:TRONAIRTiltable Four Bottle Service Cart (with manifold, high & low pressure regulators)
18-4318-0000
Tiltable Four Bottle Service Cart (with manifold, high & low pressure regulators)- 4 hose manifold to connect bottles with CGA-580 fittings (see accessories)
- High pressure regulator 25 to 4,000 psi (1.7 to 276 bar) certified gauge with 15 ft (4.6 m) #4 output hose
- Low pressure regulator 0 to 500 psi (.2 to 34.5 bar) certified gauge with 15 ft (4.6 m) #4 output hose
- Temperature range 0º to 200º F (17.7º to 93.3º C)
- Operating instructions located on instrument panel
- Sturdy welded steel constrution
- Holds four 9 inch (23 cm) diameter nitrogen bottles (bottles not included)
- 13 in (33 cm) diameter pneumatic tires
- Front wheels lock with towbar in upright position (OSHA Act 1970 Section 5(a) (1) - General Duty Clause - an employer has the general duty to provide a safe work environment free from known hazards. Potential movement of the cart on an uneven surface or incline is eliminated by the locking front wheels)
- Movable back stop adjusts to fit bottle lengths from 48 to 64 in (122 to 163 cm) to hold bottles securely in place
- Towbar with 2-3/16 in (5.6 cm) ID eyebolt
- Maximum towing speed 10 mph (16 km/hr)
- Hose storage compartment
- Reflectors to improve night visibility
- Low Profile
- CE marked
- Custom Colors Available
- Easy, one person loading and unloading of cylinders, no muscle strains from picking up cylinders (OSHA Act 1970 Section 5(a)(1) - General Duty Clause and EU OSHA Directive 90/269/EEC - Manual Handling of Loads)
- Extremely easy rotation to horizontal in use position (OSHA Act 1970 Section 5(a)(1) - General Duty Clause and EU OSHA Directive 90/269/EEC - Manual Handling of Loads)
- Extra secure locking pivot point
- Easy and affordable conversion from exsisting Tronair cart
Aircraft Applications: -
Vendor:TRONAIRTiltable Four Service Bottle Cart (booster, manifold, high & low pressure regulators) (CE)
18-4315-0000
Tiltable Four Service Bottle Cart (booster, manifold, high & low pressure regulators) (CE)- 4 hose manifold to connect bottles with CGA-580 fittings (see accessories)
- High pressure regulator 25 to 4,000 psi (1.7 to 276 bar) certified gauge with 15 ft (4.6 m) #4 output hose
- Low pressure regulator 0 to 500 psi (.2 to 34.5 bar) certified gauge with 15 ft (4.6 m) #4 output hose
- Temperature range 0º to 200º F (17.7º to 93.3º C)
- Operating instructions located on instrument panel
- Sturdy welded steel constrution
- Holds four 9 inch (23 cm) diameter nitrogen bottles (bottles not included)
- 13 in (33 cm) diameter pneumatic tires
- Front wheels lock with towbar in upright position (OSHA Act 1970 Section 5(a) (1) - General Duty Clause - an employer has the general duty to provide a safe work environment free from known hazards. Potential movement of the cart on an uneven surface or incline is eliminated by the locking front wheels)
- Movable back stop adjusts to fit bottle lengths from 48 to 64 in (122 to 163 cm) to hold bottles securely in place
- Towbar with 2-3/16 in (5.6 cm) ID eyebolt
- Maximum towing speed 10 mph (16 km/hr)
- Hose storage compartment
- Reflectors to improve night visibility
- Low Profile
- CE marked
- Custom Colors Available
- Easy, one person loading and unloading of cylinders, no muscle strains from picking up cylinders (OSHA Act 1970 Section 5(a)(1) - General Duty Clause and EU OSHA Directive 90/269/EEC - Manual Handling of Loads)
- Extremely easy rotation to horizontal in use position (OSHA Act 1970 Section 5(a)(1) - General Duty Clause and EU OSHA Directive 90/269/EEC - Manual Handling of Loads)
- Extra secure locking pivot point
- Easy and affordable conversion from exsisting Tronair cart
- 4,000 psi (276 bar) nitrogen intensifier (booster) operates off low pressure regulator
- Intensifier (booster) automatically shuts down when aircraft reaches set pressure
Aircraft Applications: -
Vendor:TRONAIRFour Bottle Service Cart (with manifold, high & low pressure regulators)
18-4303-0000
Four Bottle Service Cart (with manifold, high & low pressure regulators)- 4 hose manifold to connect bottles with CGA-580 fittings (see accessories)
- High pressure regulator 25 to 4,000 psi (1.7 to 276 bar) certified gauge with 15 ft (4.6 m) #4 output hose
- Low pressure regulator 0 to 500 psi (.2 to 34.5 bar) certified gauge with 15 ft (4.6 m) #4 output hose
- Temperature range 0º to 200º F (17.7º to 93.3º C)
- Operating instructions located on instrument panel
- Sturdy welded steel constrution
- Holds four 9 inch (23 cm) diameter nitrogen bottles (bottles not included)
- 13 in (33 cm) diameter pneumatic tires
- Front wheels lock with towbar in upright position (OSHA Act 1970 Section 5(a) (1) - General Duty Clause - an employer has the general duty to provide a safe work environment free from known hazards. Potential movement of the cart on an uneven surface or incline is eliminated by the locking front wheels)
- Movable back stop adjusts to fit bottle lengths from 48 to 64 in (122 to 163 cm) to hold bottles securely in place
- Towbar with 2-3/16 in (5.6 cm) ID eyebolt
- Maximum towing speed 10 mph (16 km/hr)
- Hose storage compartment
- Reflectors to improve night visibility
- Low Profile
- CE marked
- Custom Colors Available
-
Vendor:TRONAIRFour Bottle Service Cart (with booster, manifold, high & low pressure regulators) (CE)
18-4208-0010
Four Bottle Service Cart (with booster, manifold, high & low pressure regulators) (CE)- 4 hose manifold to connect bottles with CGA-580 fittings (see accessories)
- High pressure regulator 25 to 4,000 psi (1.7 to 276 bar) certified gauge with 15 ft (4.6 m) #4 output hose
- Low pressure regulator 0 to 500 psi (.2 to 34.5 bar) certified gauge with 15 ft (4.6 m) #4 output hose
- Temperature range 0º to 200º F (17.7º to 93.3º C)
- Operating instructions located on instrument panel
- Sturdy welded steel constrution
- Holds four 9 inch (23 cm) diameter nitrogen bottles (bottles not included)
- 13 in (33 cm) diameter pneumatic tires
- Front wheels lock with towbar in upright position (OSHA Act 1970 Section 5(a) (1) - General Duty Clause - an employer has the general duty to provide a safe work environment free from known hazards. Potential movement of the cart on an uneven surface or incline is eliminated by the locking front wheels)
- Movable back stop adjusts to fit bottle lengths from 48 to 64 in (122 to 163 cm) to hold bottles securely in place
- Towbar with 2-3/16 in (5.6 cm) ID eyebolt
- Maximum towing speed 10 mph (16 km/hr)
- Hose storage compartment
- Reflectors to improve night visibility
- Low Profile
- CE marked
- Custom Colors Available
- 4,000 psi (276 bar) nitrogen intensifier (booster) operates off low pressure regulator
- Intensifier (booster) automatically shuts down when aircraft reaches set pressure
- Durable Powder Coat Tronair Blue
Aircraft Applications: -
Nitrogen Booster (maximum 3,000 psi/207 bar)- Mounts on standard nitrogen bottles with CGA-580 connector
- 10 cfm (4.7 lps) at 90 psi (6.2 bar) shop air required
- Temperature range 0º to 200º F (17.7º to 93.3º C)
- Sturdy welded steel construction
- 15 ft (4.6m) #4 output hose with 37° JIC female swivel connector
- 5,000 psi (345 bar) certified pressure gauge
- MIL-PRF-5606 hydraulic fluid
- Repeated manual opening of input and output valves required to reach desired aircraft pressure
- Finish: Powder Coat Desert Sand
Aircraft Applications: -
Looking For Custom Parts?
Contact Us -
Tire Service Kit (300 psi/20.7 bar) (CE)- Our ATA-32 nitrogen regulators and gauges features:
- Certification documents are provided with all nitrogen gauges
- Service gauges protected by a rubber boot
- Service gauges are liquid filled to maintain accuracy
- Regulator Gauge Accuracy: ASME Grade B 3-2-3 (except 18-4216-6000: ± Full Scale 2.5%)
- Gauge Accuracy: ± Full Scale 1.5%
- Digital Gauge Accuracy: ± Full Scale .25%
- All gauges require annual calibration
- Storage container standard for Service and Pressure Gauges
-
Tire Service Gauge (300 psi/20.7 bar) (CE)- Our ATA-32 nitrogen regulators and gauges features:
- Certification documents are provided with all nitrogen gauges
- Service gauges protected by a rubber boot
- Service gauges are liquid filled to maintain accuracy
- Regulator Gauge Accuracy: ASME Grade B 3-2-3 (except 18-4216-6000: ± Full Scale 2.5%)
- Gauge Accuracy: ± Full Scale 1.5%
- Digital Gauge Accuracy: ± Full Scale .25%
- All gauges require annual calibration
- Storage container standard for Service and Pressure Gauges
-
Hydraulic Service Cart (8 gal/30 l) & (200 psi/13.8 bar)- Sturdy welded steel construction
- 8 gal (30.1 l) fluid resistant reservoir
- 2 micron filtration (beta rating > 2000 @ 4µm per ISO 4572)
- 200 psi (13.8 bar) maximum pressure
- High displacement hand pump (13 strokes per quart)
- 15 ft (4.6 m) #6 hose with 37º JIC female swivel connector
- 8 in (20 cm) semi-pneumatic tires
- Finish: Durable Powder Coat Tronair Blue
Aircraft Applications: -
Hydraulic Service Unit (2 gal/7.6 l) & (200 psi/13.8 bar)- Stainless steel construction
- 2 gal (7.6 l) reservoir
- 2 micron filtration (beta rating > 1000 @ 4µm per ISO 4572)
- 200 psi (13.8 bar) maximum pressure
- 2 in (5 cm) filler port
- High displacement hand pump (13 strokes per quart)
- 15 ft (4.6 m) #6 hose with 37º JIC female swivel connector
- Hose storage bracket
Aircraft Applications: -

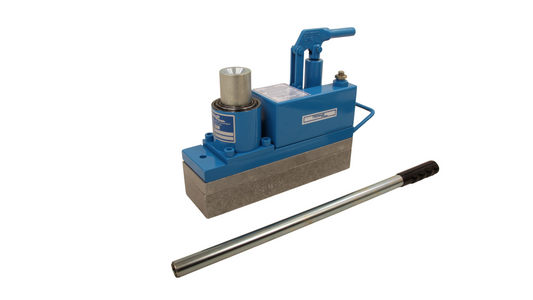

Axle Jack (12 ton/10.8 metric ton) (CE)- Hand pump with pressure relief valve
- Easy access filler/breather cap that can be sealed to avoid spills
- Spacer blocks provide easy adjustment of closed height (included with some models)
- Finish: Painted Blue
- Approved Aircraft Axle Jack - insert a "C" as the eighth digit, (e.g. 02-7813C0100)
-
