Used Ground Support Equipment

Standard Features

• High lift boom & wheel support capability
• Hold down chain & tie down straps for wheel assemblies
• Swivel locks on rear casters for improved towing
• Storage box for tie down hardware
• Foam filled tires for improved safety & reliability
• Parking brake
• Towbar with 3 inch lunette eye
• Rugged tubular steel construction
• Skydrol resistant paint (safety yellow)
• 1 year standard warranty
• Shipment on domestic skid

Optional Features

• Customer specified paint color
• Export crating

Variants

• 17500S-2 -

Standard Features

• Our ATA-32 nitrogen regulators and gauges features:
• Certification documents are provided with all nitrogen gauges
• Service gauges protected by a rubber boot
• Service gauges are liquid filled to maintain accuracy
• Regulator Gauge Accuracy: ASME Grade B 3-2-3 (except 18-4216-6000: ± Full Scale 2.5%)
• Gauge Accuracy: ± Full Scale 1.5%
• Digital Gauge Accuracy: ± Full Scale .25%
• All gauges require annual calibration
• Storage container standard for Service and Pressure Gauges

Standard Features

• Welded steel construction
• Positive locking to towbar via a ball lok-T pin
• Shear protection, both radial and/or compression/tension built in to protect nose gears as required
• Finish: Durable Powder Coat Tronair Blue

Standard Features

• The RAT Test Tool, powered by a suitable hydraulic cart, is used to back drive the RAT during ground testing
• The hydraulic motor provides power and speed capabilities consistent with the requirements of the ground test procedures
• 20 ft (6.1 m) long pressure supply and return hoses
• Heavy duty case - may be used for easy shipping and storage

Standard Features

• The RAT Test Tool, powered by a suitable hydraulic cart, is used to back drive the RAT during ground testing
• The hydraulic motor provides power and speed capabilities consistent with the requirements of the ground test procedures
• 20 ft (6.1 m) long pressure supply and return hoses
• Heavy duty case - may be used for easy shipping and storage

Standard Features

• CE marked
• 2,200 psi (151.7 bar) maximum output pressure
• 30:1 volumetric displacement
• 20:1 maximum compression ratio
• Shop air required 80 cfm (37.8 lps) at 90 psi (6.2 bar)
• 0-5,000 psi (0-345 bar) certified supply gauge
• 0-3,000 psi (0-207 bar) certified aircraft pressure gauge
• 0-160 psi (0-11 bar) certified shop air regulator gauge
• Temperature range 0º to 200º F (17.7º to 93.3º C)
• 15 ft (4.6 m) #4 stainless steel braided hose with 37º JIC female swivel connector
• In-line 15 micron nominal filter
• Booster automatically shuts down when aircraft reaches set pressure
• Finish: Powder Coat Green

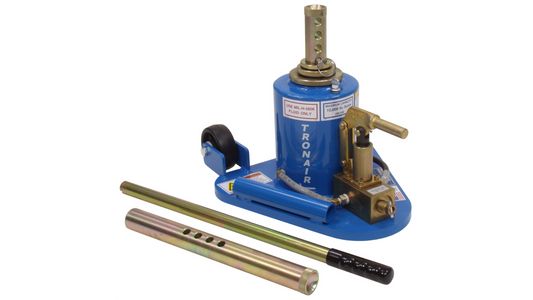

Standard Features

• Hand Pump with built-in pressure relief valve
• Threaded rams with improved hand wheel style safety nut
• Quick rising center extension
• Easy access filler/breather cap
• Heavy-duty wheels on all aircraft tripod jacks where spring loaded casters are not standard
• Hydraulic fluid: MIL-PRF-5606
• 3/4 in (2 cm) spherical radius cup jack pad
• Finish: Durable Powder Coat Tronair Blue
• Approved Jack - insert a "C" as the eighth digit, (e.g. 02-0517C0140)

Optional Features

• Air Pump (field installed) - call Tronair
• Air Pump (factory installed) - insert an "A" as the third digit of the model number (e.g. 02A0522-0140)
• Air Pump and Spring Loaded Casters (factory installed) - insert a "B" as the third digit of the model number (e.g. 02B0517-0140)
• Spring Loaded Casters (factory installed) - insert a "C" as the third digit of the model number (e.g. 02C7856C0100); not standard on 5 ton jacks

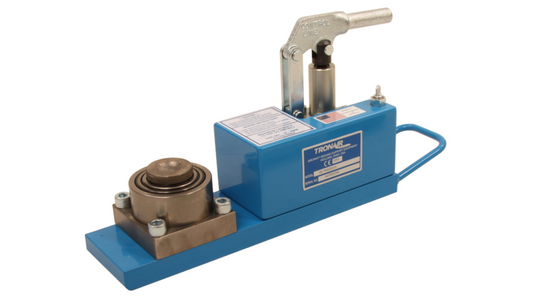

Standard Features

• Hand pump with pressure relief valve
• Easy access filler/breather cap that can be sealed to avoid spills
• Spacer blocks provide easy adjustment of closed height (included with some models)
• Finish: Painted Blue
• Approved Aircraft Axle Jack - insert a "C" as the eighth digit, (e.g. 02-7813C0100)

Standard Features

• Hand Pump with built-in pressure relief valve
• Threaded rams with improved hand wheel style safety nut
• Quick rising center extension
• Easy access filler/breather cap
• Heavy-duty wheels on all aircraft tripod jacks where spring loaded casters are not standard
• Hydraulic fluid: MIL-PRF-5606
• 3/4 in (2 cm) spherical radius cup jack pad
• Finish: Durable Powder Coat Tronair Blue
• Approved Jack - insert a "C" as the eighth digit, (e.g. 02-0517C0140)

Optional Features

• Air Pump (field installed) - call Tronair
• Air Pump (factory installed) - insert an "A" as the third digit of the model number (e.g. 02A0522-0140)
• Air Pump and Spring Loaded Casters (factory installed) - insert a "B" as the third digit of the model number (e.g. 02B0517-0140)
• Spring Loaded Casters (factory installed) - insert a "C" as the third digit of the model number (e.g. 02C7856C0100); not standard on 5 ton jacks

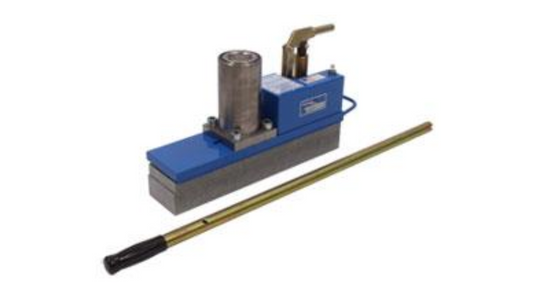

Standard Features

• Hand pump with pressure relief valve
• Easy access filler/breather cap that can be sealed to avoid spills
• Spacer blocks provide easy adjustment of closed height (included with some models)
• Finish: Painted Blue
• Approved Aircraft Axle Jack - insert a "C" as the eighth digit, (e.g. 02-7813C0100)

Standard Features

• Pressure and Return:
• Adapt hose to a specific aircraft bulkhead coupling
• Two (2) kits will be required if dual or split system is ordered
• Reservoir Fill:
• Adapt hose to a specific aircraft reservoir bulkhead coupling

Standard Features

• Pressure and Return:
• Adapt hose to a specific aircraft bulkhead coupling
• Two (2) kits will be required if dual or split system is ordered
• Reservoir Fill:
• Adapt hose to a specific aircraft reservoir bulkhead coupling

Standard Features

• Towable unit with rugged tubular frame and integrated fluid reservoir
• Polyurethane filled tires and 3 inch ID lunette ring
• Conveniently located operator panel for easy strut servicing
• Baffled dual reservoir for separate clean and waste fluid storage, including fluid sights, fill cap, desiccant breather, strut vent system, drain valve and cleanout cover
• Air operated hydraulic pump and vacuum degassing system
• Inlet connections for external regulated nitrogen and shop air
• Suction and return filtration
• Analog vacuum and pressure gauges
• Two 25 foot service hoses with strut safety chucks mounted on hose racks
• Skydrol resistant paint (white)
• 1 year standard warranty
• Shipment on domestic skid with protective cover
• Customer supplied adapters

Optional Features

• Two retractable hose reels with 25 foot long service hoses
• Return fluid sight
• Customer specified paint color

Variants

• 884400B-1 - None
• 884400B-2 - Hose reels
• Currently Viewing 884400B-3 - FLUID SIGHT, HOSE REELS,37° FLARED N2 INLET FITTING

Standard Features

• Sturdy welded steel construction
• 8 gal (30.1 l) fluid resistant reservoir
• 2 micron filtration (beta rating > 2000 @ 4µm per ISO 4572)
• 200 psi (13.8 bar) maximum pressure
• High displacement hand pump (13 strokes per quart)
• 15 ft (4.6 m) #6 hose with 37º JIC female swivel connector
• 8 in (20 cm) semi-pneumatic tires
• Finish: Durable Powder Coat Tronair Blue

Standard Features

• 8 gal (30 l) polyethylene reservoir
• 15 ft (4.6 m) #4 hose with 37º JIC female swivel connector
• Shut off valve for static testing
• 2 micron filtration (beta rating > 2000 @ 4µm per ISO 4572)
• Dual stage manual hand pump
• Stroke displacement: 2.1 cu in/stroke to 500 psi, .4 cu in/stroke to 5,000 psi
• 8 in (20 cm) semi-pneumatic tires
• Dual hose selector valve standard on 06-5004 and 06-5041 series only
• Sturdy welded steel construction
• Finish: Durable Powder Coat Tronair Blue

Standard Features

• Continuous duty air supply REQUIRED for operation of unit:
• 15-7609-6000-FJ - 110 SCFM at 100 psi (6.9 bar) minimum (150 psi) max
• 1 1/2 in (4 cm) 20 ft. (6.1 m) detachable cabin supply hose with quick disconnect
• 1 in (2.5 cm) ID minimum inlet hose required
• Replaceable air inlet filter element
• ¼ in (0.6 cm) diameter x 20 ft (6 m) long cabin sensor feedback hose
• ¼ in (0.6 cm) diameter x 20 ft (6 m) long door seal supply hose
• Pressure relief valve set at 13.25 to 13.75 psi (.91 to .95 bar)
• Cabin pressure 0 to 15 psi (0 to 0.97 bar) certified gauges
• System pressure 0 to 60 psi (0 to 11 bar) certified gauges
• Door seal pressure 0 to 100 psi (0 to 6.9 bar) certified gauge
• Certified flow meter
• 150 psi (10.3 bar) maximum shop air supply pressure
• 0 to 6,000 ft/minute (0 to 1,829 m/minute) rate of climb indicator
• ATA transport case with wheels and a retractable handle
• CE marked
• 15-7609-6000-FJ - Ambient temperature gauge 50 to 300º F (10 to 149º C)
• 15-7609-6000-FJ - Incoming air pressure gauge 0 to 200 psi (0 to 13.8 bar)
• 15-7609-6000-FJ - Incoming air shut off valve
• Air Force Approved for F-16 Fighter Jet
