TRONAIR

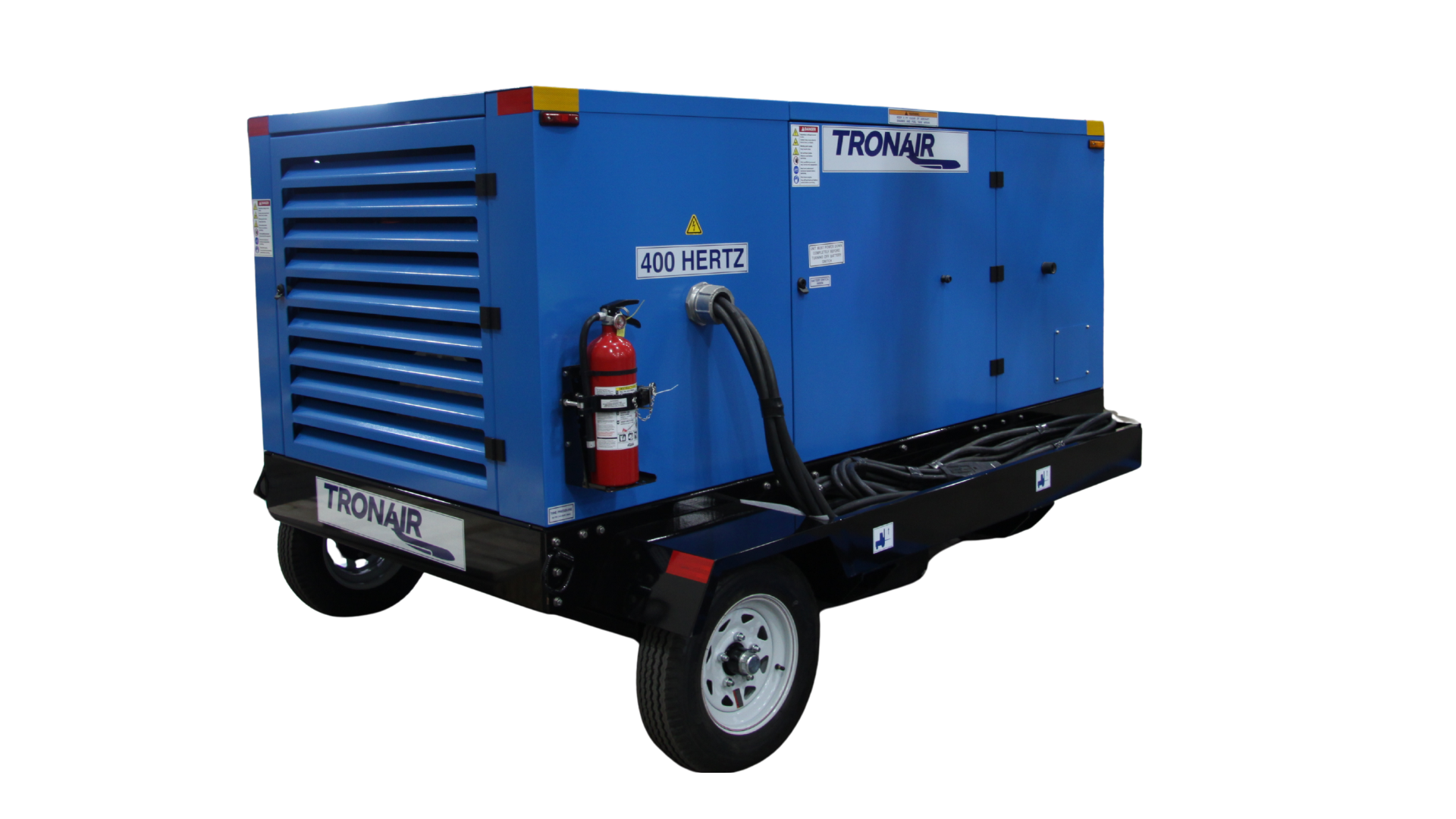

400 Hz AC, 90kVA Diesel GPU (CE)

11-4090-0000

Model11-4090-0000

Electrical power (ata-24)

Does this product fit your model?

View Aircraft Applications
Available to Order
Request a Quote
Icons/Caret-Right

Separate Adaptor may be required for some aircraft models. View Adaptor

View full details

Standard Features:

Powered by the award winning Doosan Tier 4f electronic engine with full-authority electronic controls for more precise control over the performance of the engine
Extended service intervals using extended filters and lubricants, up to 500 hours between scheduled service
Engine operates with Ultra-low Sulphur Diesel fuel
Fuel/water separator with water-in-fuel sensor and electronic indication
Large 35 gallon, high density cross-linked polyethylene fuel tank for 8+ hours of use
Low fuel warning and no fuel shutdown system
Shut down on low oil pressure and high engine temperature commonly seen listed as (LOP/HET protection)
12 volt control and starting circuitry for easy cold weather starting
Automated glow plug control for cold weather starting
Large engine Digital Display and Diagnostics module (DDD), this is a multi-function tool to view engine parameters and fault codes
Automatic 60 second power off delay engine shutdown for turbo protection
3 year engine warranty
Powerful 80kw, AVR and 90kVA alternator with SCR regulation
Maintenance free, long life single bearing
Automatic output build-up and protection
Cable head sensing and output drop compensation system ensures full power is provided to aircraft
Aircraft cable head interlock circuit
Wiring and color code in accordance with CE, NFPA and NEC
30 ft (9.1 m) AC output cable
Durable, compact, maneuverable, trailer mounted unit with fifth wheel steering
Front wheel scrub brake for simplicity
Weather resistant powder coated sheet metal to prevent corrosion
Corner lights and stack light
Large cable trays for easy cable stowage
Finish: Durable Powder Coat Tronair Blue
CE marked
Standard Cold Weather Features:
120 V Block Heater
Larger capacity starting battery 900 CCA AGM type battery
Automatic Glow Plugs
Insulation package for the engine enclosure and sound dampening

TRONAIR

11-4090-0000

Request a Quote

Specifications

Dimensions

  • Height In (Cm): 74.5 (189)
  • Length In (Cm): 113.5 (288)
  • Weight Lb (Kg): 3,800 (1,724)
  • Width In (Cm): 79 (200)

Aircraft Applications

Airbus - A220-100 (CS100),

Airbus - A220-300 (CS300),

Airbus - A300,

Airbus - A310,

Airbus - A318,

Airbus - A319,

Airbus - A320,

Airbus - A321 Neo,

Airbus - A321,

Airbus - A330-200,

Airbus - A330-300,

Airbus - A340-200,

Airbus - A340-300,

Airbus - A340-500,

Airbus - A340-600,

Airbus - A350-900,

Airbus - A380,

ATR - 42,

ATR - 72,

BAe - 146-100, -200, -300/Avro RJ100,

BAe - ATP,

Bell - UH-1,

Bell - UH-1H,

Boeing - 707,

Boeing - 717,

Boeing - 727-100,

Boeing - 727-200,

Boeing - 737-100,

Boeing - 737-200,

Boeing - 737-300,

Boeing - 737-400,

Boeing - 737-500,

Boeing - 737-600,

Boeing - 737-700,

Boeing - 737-800,

Boeing - 737-900,

Boeing - 737-BBJ,

Boeing - 737-BBJ2,

Boeing - 737 MAX,

Boeing - 747,

Boeing - 757,

Boeing - 767,

Boeing - 777,

Boeing - KC-46,

Boeing - KC-46A,

Boeing - MD-80,

Boeing Rotorcraft - 234 Chinook,

Boeing Rotorcraft - CH47, MH47 Chinook,

Bombardier (Business) - 6500,

Bombardier (Business) - Challenger 300,

Bombardier (Business) - Challenger 350,

Bombardier (Business) - Challenger 600,

Bombardier (Business) - Challenger 601,

Bombardier (Business) - Challenger 604,

Bombardier (Business) - Challenger 650,

Bombardier (Business) - Challenger 850,

Bombardier (Business) - CL-215,

Bombardier (Business) - CL-215T,

Bombardier (Business) - CL-415,

Bombardier (Business) - Global 5000,

Bombardier (Business) - Global 5500,

Bombardier (Business) - Global 6000,

Bombardier (Business) - Global 6500,

Bombardier (Business) - Global 7500 (7000),

Bombardier (Business) - Global 8000,

Bombardier (Business) - Global Express XRS,

Bombardier (Business) - Global Express,

Bombardier (Regional) - Challenger 870,

Bombardier (Regional) - Challenger 890,

Bombardier (Regional) - CRJ100,

Bombardier (Regional) - CRJ1000,

Bombardier (Regional) - CRJ200,

Bombardier (Regional) - CRJ700,

Bombardier (Regional) - CRJ705,

Bombardier (Regional) - CRJ900,

Bombardier (Regional) - Dash 8-100,

Bombardier (Regional) - Dash 8-200,

Bombardier (Regional) - Dash 8-300,

Bombardier (Regional) - Dash 8-Q400,

Comac - C909 (ARJ21),

Embraer - E170 (ERJ-170),

Embraer - E175-E2,

Embraer - E175 (ERJ-175),

Embraer - E190-E2,

Embraer - E190 (ERJ-190),

Embraer - E195-E2,

Embraer - E195 (ERJ-195),

Fairchild Dornier - Dornier DO328 Jet,

Fairchild Dornier - Dornier DO328,

Fokker - 100,

Fokker - 28,

Fokker - 50,

Gulfstream - G350,

Gulfstream - G450,

Gulfstream - G500,

Gulfstream - G550,

Gulfstream - G600,

Gulfstream - G650,

Gulfstream - G650ER,

Gulfstream - G700,

Gulfstream - II,

Gulfstream - III,

Gulfstream - IV,

Gulfstream - IVSP,

Gulfstream - V,

Gulfstream - VSP,

Lockheed - C-130,

Lockheed - L-1011,

McDonnell Douglas - DC-10,

McDonnell Douglas - DC-8 Series 60,

McDonnell Douglas - DC-9 Series 10,

McDonnell Douglas - DC-9 Series 20,

McDonnell Douglas - DC-9 Series 30,

McDonnell Douglas - DC-9 Series 33,

McDonnell Douglas - DC-9 Series 40,

McDonnell Douglas - DC-9 Series 50,

McDonnell Douglas - MD-11,

Saab - 2000,

Sikorsky - MH-60R, SH-60B/F, HH-60J, S-70B, S-70C-6, S-70i,

Sikorsky - UH-60 Black Hawk, MH-60S Seahawk
