MALABAR

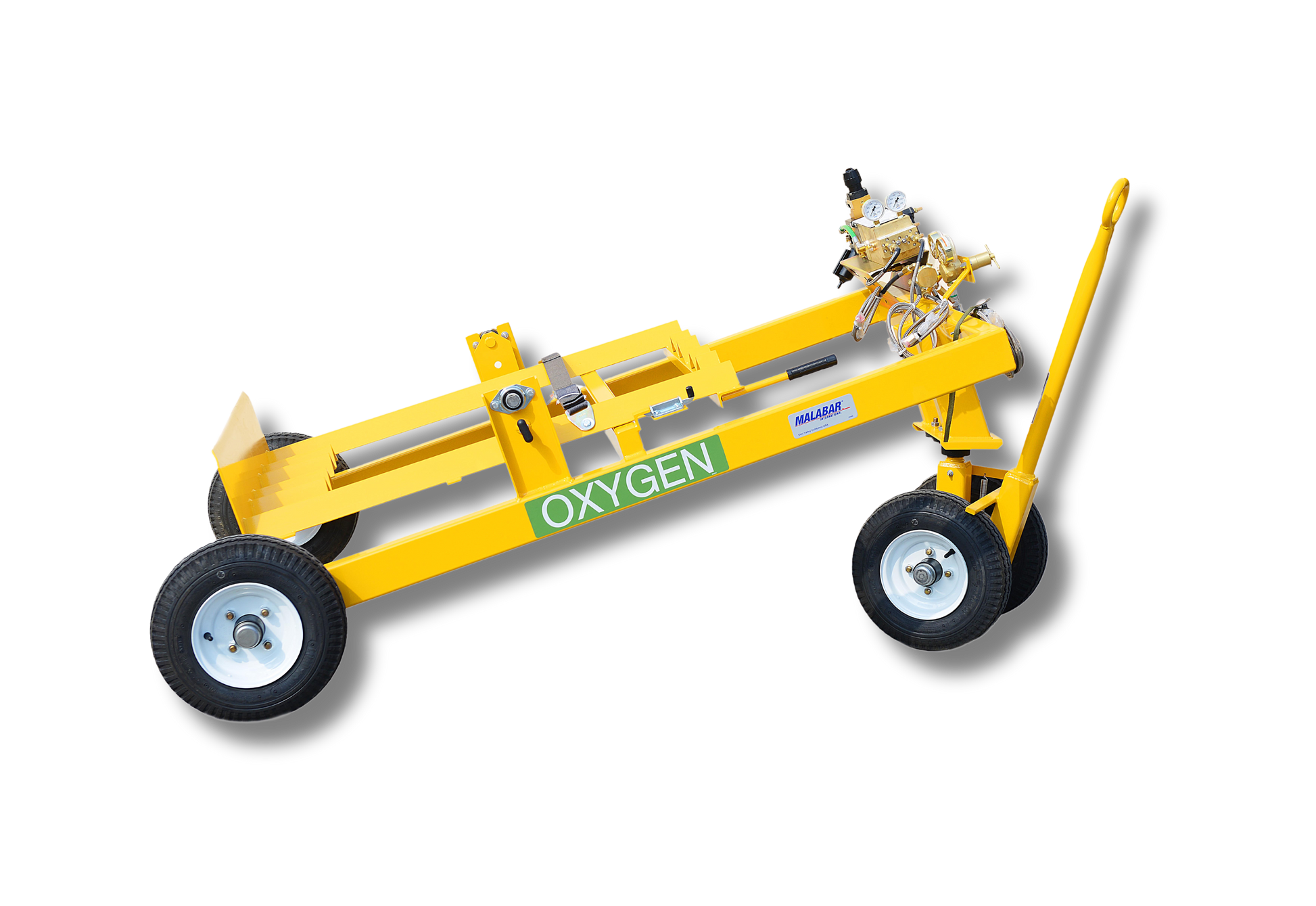

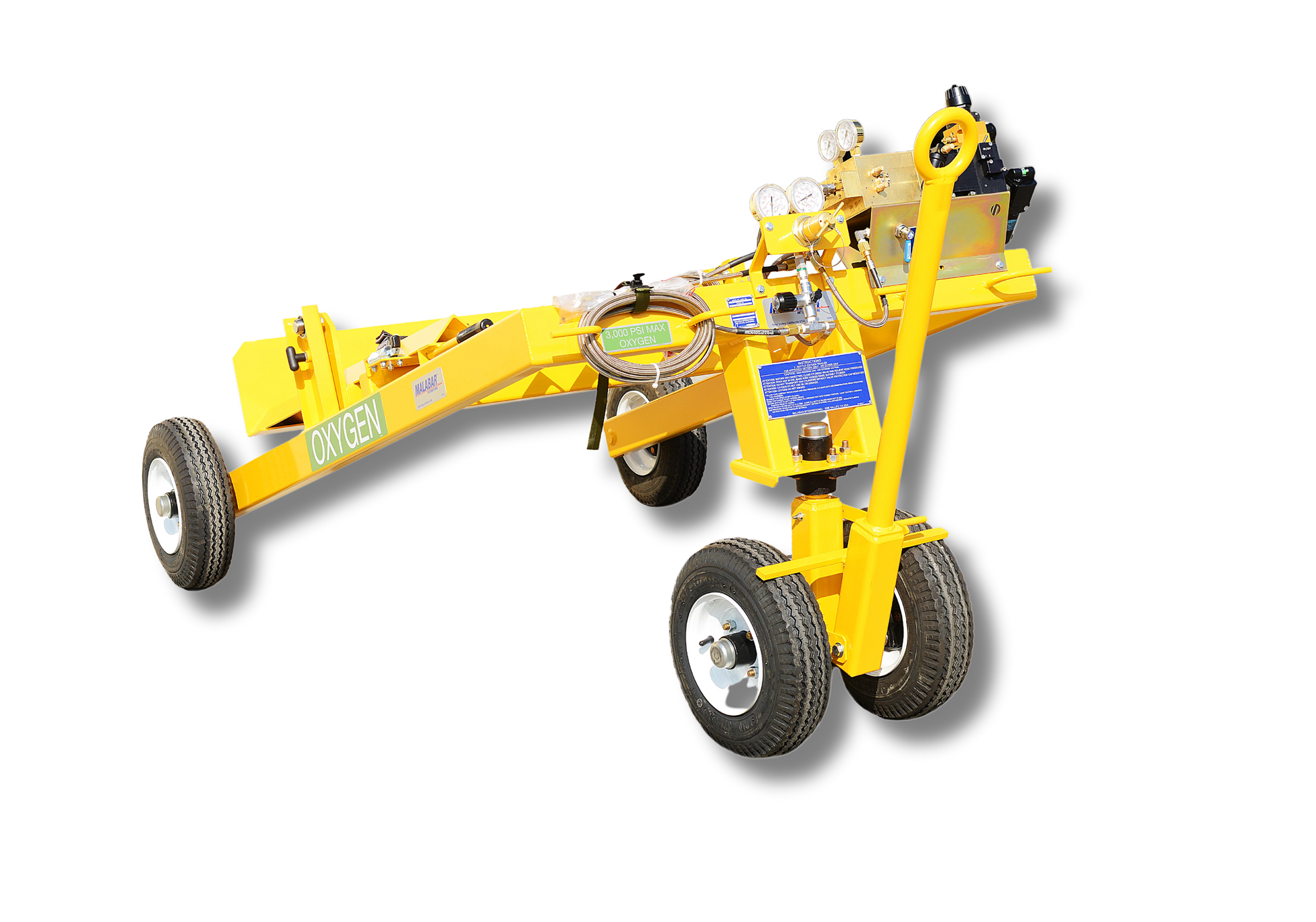

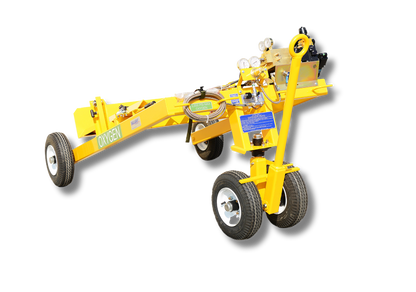

O2 Service Cart, 4-Bottle

894300-2

Model894300-2

Servicing (ata-12)

Does this product fit your model?

View Aircraft Applications
Available to Order
Request a Quote
View full details

Standard Features

  • Rugged tubular steel frame
  • Bottle restraint strap
  • Oxygen delivery system with high quality regulator and gauges
  • Oxygen hose includes AN800-3 (3/8-24 thread) oxygen charge adapter with dust plug
  • Towbar with 3 inch ID lunette ring and parking brake
  • Skydrol resistant paint (safety yellow)
  • 1 year standard warranty
  • Shipment on domestic skid

Optional Features

  • Oxygen boost pump powered by air
  • 2400 psig oxygen bottles (furnished empty) with CGA540 valve fittings installed
  • Separate CGA540 bottle valve fittings
  • Separate BS-341-3 bottle valve fittings
  • Separate DIN-477-9 bottle valve fittings
  • Customer specified paint color
  • Export crating
MALABAR

894300-2

Request a Quote

Specifications

Type/Other

  • Booster: No

Performance

  • Bottle Capacity: 4
  • High Operating Pressure (Psi): 0-4000

Fuel

  • Gas: Oxygen

Dimensions

  • Height In (Cm): 47 (119.4)
  • Length In (Cm): 91 (231.1)
  • Weight Lb (Kg): 440 (200)
  • Width In (Cm): 55 (139.7)
