Showing 13 - 24 of 41
-

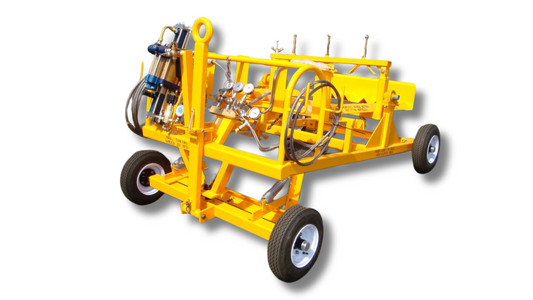

Standard Features
- Bottle Frame - tilts up-right for ease of bottle removal and installation (Bottles not included) NOTE : Standard Gaseous Bottles are 9" to 10" diameter by 48" long.
- Towing Clevis - mounted on rear for axle jack towing and swings away for ease of bottle removal and installation
- Tow Bar - for ease of maneuvering. When stored in up-right lock position, the parking brake is actuated
- Four Wheel Design - for sharp turn stability and safety, with low center of gravity
- Delivery Capacity - Three (3) bottles delivering up to 3600 PSI which provides a maximum capacity of 1035 cubic feet of nitrogen through low and high pressure valves, gauges and hoses
- Two (2) High Pressure Nylon Hoses with Urethane covers, delivering up to 5,000 PSI. Meets or exceeds SAE 100R8. Includes CGA580 fittings.
- Schrader S-3647 & Dill 6044 Air Chucks (Tires/Struts)
- Tires - pneumatic tires to cushion and absorb shock
- Maximum Speed - 20 MPH (32 kmh) towing speed when bottles are secured properly
- Skydrol Resistant Yellow Paint
Aircraft Applications: -
Standard Features
- CE Marked
- Easy, one person loading/unloading
- Use with 9 ¾ diameter, 60 tall and weighing less than 150 lbs Nitrogen cylinders; CGA 580 connection with check valves, 3000 psi max
- Cylinders fully captured
- Pneumatic tires/tapered wheel bearings
- Narrow width
- Very low profile, fits under most aircraft wings
- Parking brake
- Hose compartment storage tray
- Instrument Panel
- Powder coated heavy duty steel construction
- Compact frame allows for a tight turning radius
Aircraft Applications: -
Standard Features
- Sturdy welded steel construction
- 9 in (23 cm) diameter bottles, not included, reference: 230 ft3 (6.5 m3) gas bottle
- 13 in (33 cm) pneumatic tires
- Fit bottle lengths from 48 to 64 in (122 to 163 cm) to hold bottles securely in place (back stop on 12-3104-0000 is adjustable)
- 20-4521-9000 comes with oxygen cleaned regulator
- Front wheels lock with towbar in upright position
- Towbar with 2-3/16 in (5.6 cm) ID eyebolt
- Hose storage compartment
- Maximum towing speed 10 mph (16 km)
- Reflectors for night visibility
- Finish: Powder Coat Orange- 20-4521-9000
Aircraft Applications: -
-
-
Standard Features
- CE Marked
- Easy, one person loading/unloading
- Use with ¾ , 60talland weighing less than 150 lbs Nitrogen cylinders; CGA 580 connection with check valves, 3000 psi max
- Cylinders fully captured
- Pneumatic tires/tapered wheel bearings
- Narrow width
- Very low profile, fits under most aircraft wings
- Parking brake
- Hose compartment storage tray
- Instrument Panel
- Powder coated heavy duty steel construction
- compact frame allows for a tight turning radius
- Stable and efficient rotational motion guidance under variable weights, speeds and high load conditions keeping the cylinders in the correct location
- Struts control the rotating of the cylinders from the vertical and horizontal positions
- Accommodates cylinders ¾ , 60talland weighing less than 150 lbs
- Manufactured of high strength materials to ensure the cylinders are secure
- Locks into horizontal or vertical position by a spring loaded plunger
Aircraft Applications: -
Looking For Custom Parts?
Contact Us -
Standard Features
- Sturdy welded steel construction
- 9 in (23 cm) diameter bottles, not included, reference: 230 ft3 (6.5 m3) gas bottle
- 13 in (33 cm) pneumatic tires
- Fit bottle lengths from 48 to 64 in (122 to 163 cm) to hold bottles securely in place (back stop on 12-3104-0000 is adjustable)
- 20-4521-9000 comes with oxygen cleaned regulator
- Front wheels lock with towbar in upright position
- Towbar with 2-3/16 in (5.6 cm) ID eyebolt
- Hose storage compartment
- Maximum towing speed 10 mph (16 km)
- Reflectors for night visibility
Aircraft Applications: -
-

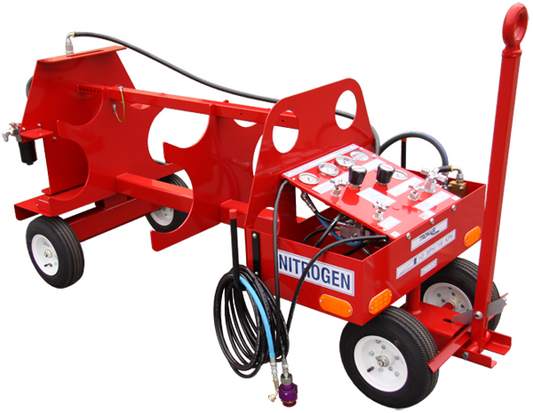

Standard Features
- 4 hose manifold to connect bottles with CGA-580 fittings (see accessories)
- Low pressure regulator 0 to 500 psi (.2 to 34.5 bar) certified gauge with 15 ft (4.6 m) #4 output hose
- Low pressure regulator output to hydraulic system 0 to 150 psi (0 to 10.3 bar) with 15 ft (4.6 m) service hose
- Nitrogen blow out system regulates the pressure to the aircraft and checks they hydraulic system for leaks prior to filling with hydraulic fluid
- Temperature range 0º to 200º F (17.7º to 93.3º C)
- Operating instructions located on instrument panel
- Sturdy welded steel constrution
- Holds four 9 inch (23 cm) diameter nitrogen bottles (bottles not included)
- 13 in (33 cm) diameter pneumatic tires
- Front wheels lock with towbar in upright position
- Movable back stop adjusts to fit bottle lengths from 48 to 64 in (122 to 163 cm) to hold bottles securely in place
- Towbar with 23/16 in (5.6 cm) ID eyebolt
- Maximum towing speed 10 mph (16 km/hr)
- Hose storage compartment
- Reflectors to improve night visibility
- Low Profile
- CE marked
- Finish: Powder Coat Red
Aircraft Applications: -

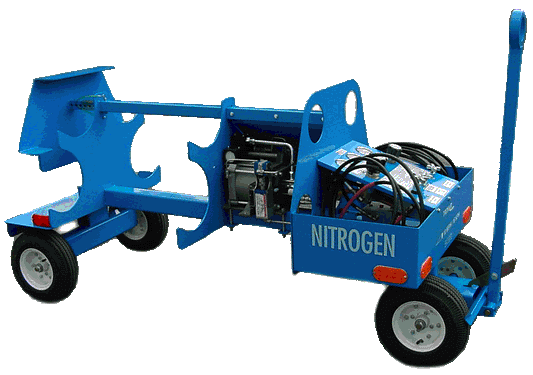

Standard Features
- 4 hose manifold to connect bottles with CGA-580 fittings (see accessories)
- High pressure regulator 25 to 4,000 psi (1.7 to 276 bar) certified gauge with 15 ft (4.6 m) #4 output hose
- Low pressure regulator 0 to 500 psi (.2 to 34.5 bar) certified gauge with 15 ft (4.6 m) #4 output hose
- Temperature range 0º to 200º F (17.7º to 93.3º C)
- Operating instructions located on instrument panel
- Sturdy welded steel constrution
- Holds four 9 inch (23 cm) diameter nitrogen bottles (bottles not included)
- 13 in (33 cm) diameter pneumatic tires
- Front wheels lock with towbar in upright position (OSHA Act 1970 Section 5(a) (1) - General Duty Clause - an employer has the general duty to provide a safe work environment free from known hazards. Potential movement of the cart on an uneven surface or incline is eliminated by the locking front wheels)
- Movable back stop adjusts to fit bottle lengths from 48 to 64 in (122 to 163 cm) to hold bottles securely in place
- Towbar with 2-3/16 in (5.6 cm) ID eyebolt
- Maximum towing speed 10 mph (16 km/hr)
- Hose storage compartment
- Reflectors to improve night visibility
- Low Profile
- CE marked
- Custom Colors Available
- 4,000 psi (276 bar) nitrogen intensifier (booster) operates off low pressure regulator
- Intensifier (booster) automatically shuts down when aircraft reaches set pressure
- CGA-350 connectors
- 2 additional 10 ft (3 m) hoses
- Finish: Powder Coat Orange
Aircraft Applications: -
Standard Features
- Easy loading
- Use with all standard nine inch (9 in/22.9 cm) diameter Nitrogen bottles; CGA 580 connection
- Adjustable bottle stop
- Bottles fully captured
- Pneumatic tires
- Parking brake
- Hose compartment and storage hooks
- Instrument Panel
- 4 gallon plastic collection tank with hose connection
- Low pressure nitrogen hose for hydraulic system input
- Low pressure nitrogen hose for hydraulic system return
Aircraft Applications: -

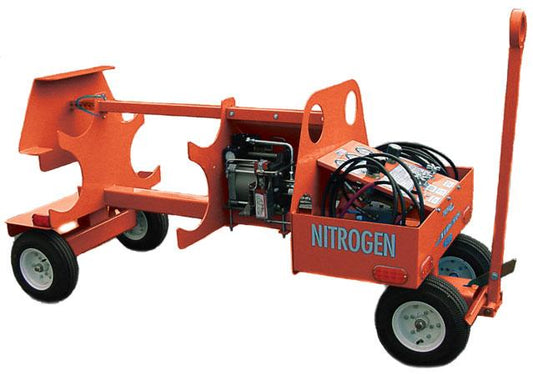

Vendor:TRONAIRFour Bottle Service Cart (booster, manifold, high & low pressure regulators) (CE)
18-4306-0000
Standard Features
- 4 hose manifold to connect bottles with CGA-580 fittings (see accessories)
- High pressure regulator 25 to 4,000 psi (1.7 to 276 bar) certified gauge with 15 ft (4.6 m) #4 output hose
- Low pressure regulator 0 to 500 psi (.2 to 34.5 bar) certified gauge with 15 ft (4.6 m) #4 output hose
- Temperature range 0º to 200º F (17.7º to 93.3º C)
- Operating instructions located on instrument panel
- Sturdy welded steel constrution
- Holds four 9 inch (23 cm) diameter nitrogen bottles (bottles not included)
- 13 in (33 cm) diameter pneumatic tires
- Front wheels lock with towbar in upright position (OSHA Act 1970 Section 5(a) (1) - General Duty Clause - an employer has the general duty to provide a safe work environment free from known hazards. Potential movement of the cart on an uneven surface or incline is eliminated by the locking front wheels)
- Movable back stop adjusts to fit bottle lengths from 48 to 64 in (122 to 163 cm) to hold bottles securely in place
- Towbar with 2-3/16 in (5.6 cm) ID eyebolt
- Maximum towing speed 10 mph (16 km/hr)
- Hose storage compartment
- Reflectors to improve night visibility
- Low Profile
- CE marked
- Custom Colors Available
- 4,000 psi (276 bar) nitrogen intensifier (booster) operates off low pressure regulator
- Intensifier (booster) automatically shuts down when aircraft reaches set pressure
Aircraft Applications:
