TRONAIR

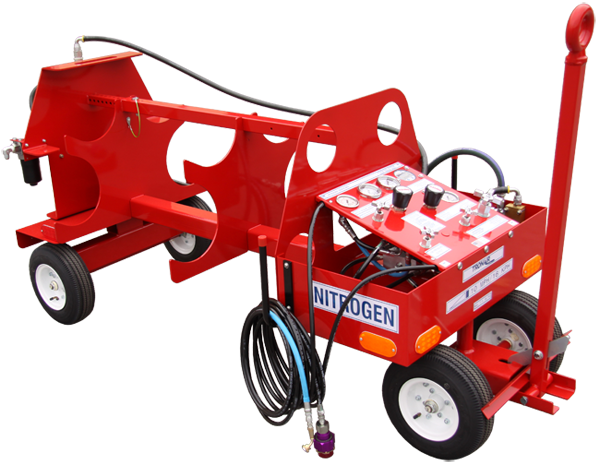

CART, 4 BOTTLE/HYD TEST (CE)

18-4314-9800

Model18-4314-9800

Servicing (ata-12)

Does this product fit your model?

View Aircraft Applications
Available to Order
Request a Quote
View full details

Standard Features

  • 4 hose manifold to connect bottles with CGA-580 fittings (see accessories)
  • Low pressure regulator 0 to 500 psi (.2 to 34.5 bar) certified gauge with 15 ft (4.6 m) #4 output hose
  • Low pressure regulator output to hydraulic system 0 to 150 psi (0 to 10.3 bar) with 15 ft (4.6 m) service hose
  • Nitrogen blow out system regulates the pressure to the aircraft and checks they hydraulic system for leaks prior to filling with hydraulic fluid
  • Temperature range 0º to 200º F (17.7º to 93.3º C)
  • Operating instructions located on instrument panel
  • Sturdy welded steel constrution
  • Holds four 9 inch (23 cm) diameter nitrogen bottles (bottles not included)
  • 13 in (33 cm) diameter pneumatic tires
  • Front wheels lock with towbar in upright position
  • Movable back stop adjusts to fit bottle lengths from 48 to 64 in (122 to 163 cm) to hold bottles securely in place
  • Towbar with 23/16 in (5.6 cm) ID eyebolt
  • Maximum towing speed 10 mph (16 km/hr)
  • Hose storage compartment
  • Reflectors to improve night visibility
  • Low Profile
  • CE marked
  • Finish: Powder Coat Red
TRONAIR

18-4314-9800

Request a Quote

Specifications

Fuel

  • Gas: Nitrogen

Dimensions

  • Height In (Cm): 47 (118.6)
  • Length In (Cm): 81 (206.7)
  • Weight Lb (Kg): 370 (169)
  • Width In (Cm): 38.5 (97.8)

Performance

  • Low Operating Pressure (Psi): 0-5000
