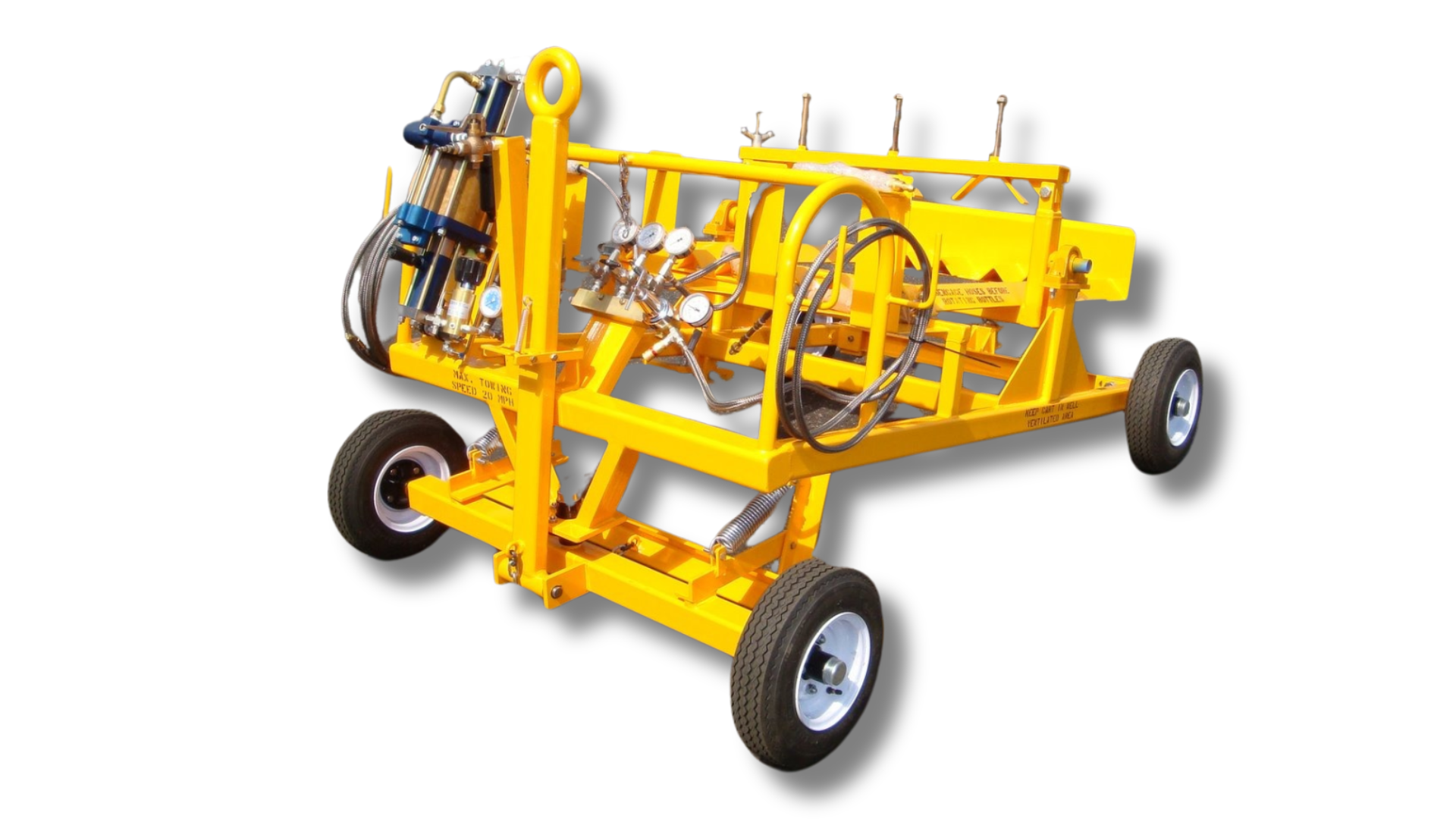

COLUMBUS JACK

Cart, Nitrogen

7046-011

Model7046-011

Servicing (ata-12)
Available to Order
Request a Quote
View full details

Standard Features

  • Bottle Frame - tilts up-right for ease of bottle removal and installation (Bottles not included) NOTE : Standard Gaseous Bottles are 9" to 10" diameter by 48" long.
  • Towing Clevis - mounted on rear for axle jack towing and swings away for ease of bottle removal and installation
  • Tow Bar - for ease of maneuvering. When stored in up-right lock position, the parking brake is actuated
  • Four Wheel Design - for sharp turn stability and safety, with low center of gravity
  • Delivery Capacity - Three (3) bottles delivering up to 3600 PSI which provides a maximum capacity of 1035 cubic feet of nitrogen through low and high pressure valves, gauges and hoses
  • Two (2) High Pressure Nylon Hoses with Urethane covers, delivering up to 5,000 PSI. Meets or exceeds SAE 100R8. Includes CGA580 fittings.
  • Schrader S-3647 & Dill 6044 Air Chucks (Tires/Struts)
  • Tires - pneumatic tires to cushion and absorb shock
  • Maximum Speed - 20 MPH (32 kmh) towing speed when bottles are secured properly
  • Skydrol Resistant Yellow Paint
COLUMBUS JACK

7046-011

Request a Quote

Specifications

Specifications

Type/Other

  • Booster: No

Performance

  • Bottle Capacity: 3
  • High Operating Pressure (Psi): 0-4000
  • Low Operating Pressure (Psi): 0-250

Fuel

  • Gas: Nitrogen

Dimensions

  • Height In (Cm): 37 (94)
  • Length In (Cm): 70 (177.8)
  • Weight Lb (Kg): 780 (354)
