COLUMBUS JACK

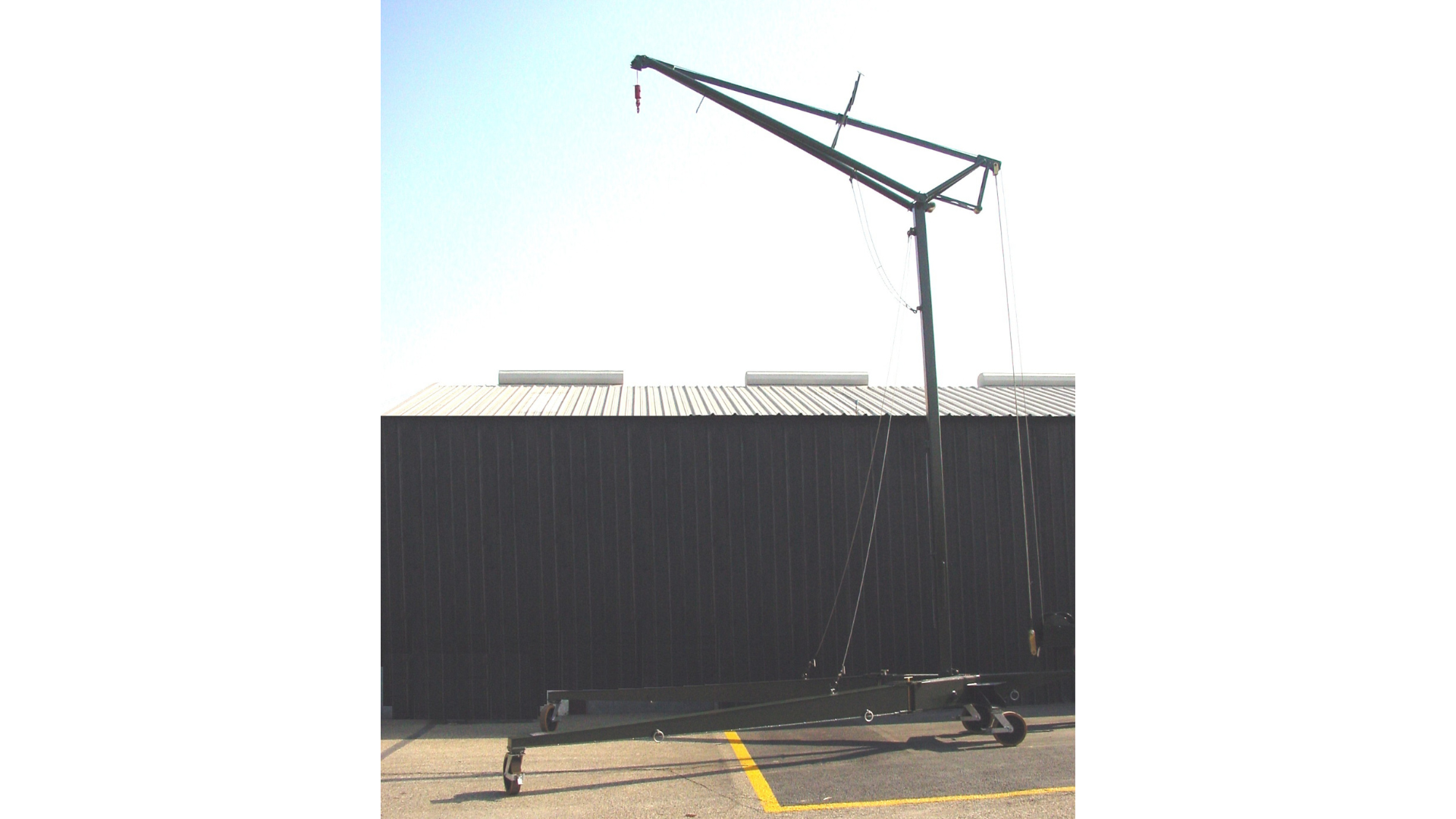

Utility Crane (200 Lbs)
9609-010
SKU:Model9609-010
Does this product fit your model?
View Aircraft Applications
Available to Order
Standard Features
- 2,000 pound capacity at any height
- Air transportable with Tie Down Rings
- 12 Poly Tread Swivel Casters with Swivel Locks and Caster Brakes
- Completely self-contained with manually operated Winch
- Rapid Deployment - No Tools Required
- Towable up to 5 mph in Transport Mode
- High degree of reliability
- Very low maintenance
- Used in adverse environments
- Skydrol Resistant Yellow
COLUMBUS JACK
9609-010
Specifications
Performance
- Capacity Lb (Kg): 2000 (907.2)
Dimensions
- Hook Height In (Cm): Position 1: 297 (754.4) Position 2: 303 (769.6) Position 3: 309 (784.9) Position 4: 315 (800.1)
- Horizontal Reach In (Cm): Position 1: 127 (322.6) Position 2: 123 (312.4) Position 3: 119 (302.3) Position 4: 115 (292.1)
- Overall Height In (Cm): Position 1: 315 (800.1) Position 2: 321 (815.3) Position 3: 327 (830.6) Position 4: 332 (843.3)
- Outrigger Extended Width In (Cm): Position 1: 175 (444.5) Position 2: 175 (444.5) Position 3: 175 (444.5) Position 4: 175 (444.5)
Resources
-
Current Operation and Service Manual
Please Note, this is the latest version of the OSM. If you need an OSM specific to your model and serial number, please use our OSM Search Tool here.
