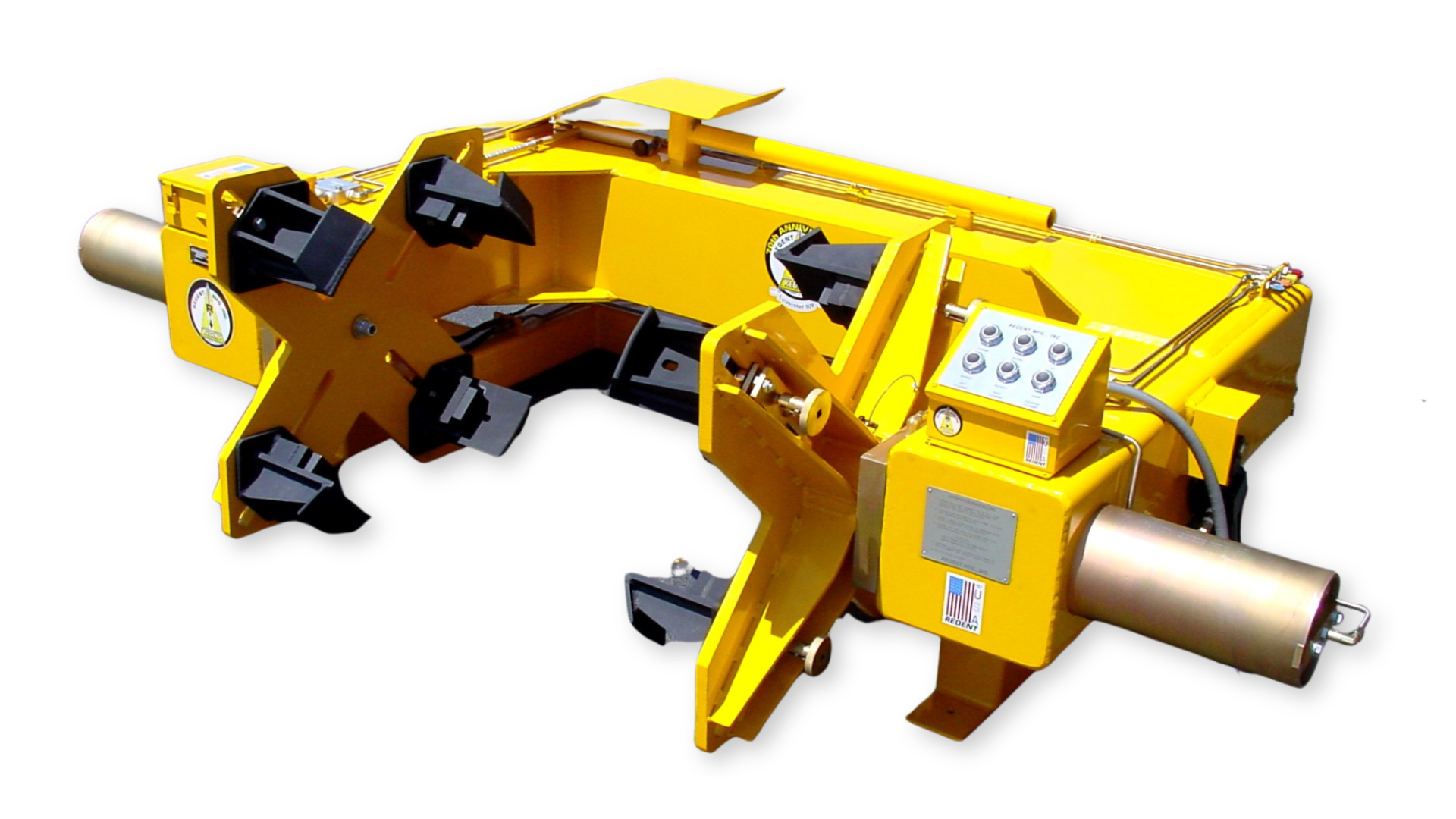

COLUMBUS JACK
Beadbreaker
9323-020
SKU:Model9323-020
Does this product fit your model?
View Aircraft Applications
Available to Order
Standard Features
- 60,000 Lb Capacity
- 2 Hydraulic Cylinder Assemblies
- Electric Driven Hydraulic Pump
- Universal Transformer operates on all major electrical voltages:
- 220 VAC, 1P, 50/60 Hz
- 220 VAC, 3P, 50/60 Hz
- 380 VAC, 3P, 50/60 Hz
- 440 VAC, 3P, 50/60 Hz
- Frame hydraulically raises to center of tire assembly
- 8 adjustable spades for bias and radial tires
- Spades are mechanically adjusted
- Small Wheel Ramp
- No special tools required
- Skydrol resistant yellow paint
COLUMBUS JACK
9323-020
Specifications
Performance
- Capacity Lb (Kg): 60,000 (27,216)
Dimensions
- Rim Diameter In (Cm): 12-31 (30.5-78.8)
- Length In (Cm): 62 (157.5)
- Width In (Cm): 120 (304.8)
- Height In (Cm): 36 (91.4)
- Weight Lb (Kg): 2,650 (1,202)
Resources
- 9323-020 Sell Sheet
-
Current Operation and Service Manual
Please Note, this is the latest version of the OSM. If you need an OSM specific to your model and serial number, please use our OSM Search Tool here.
