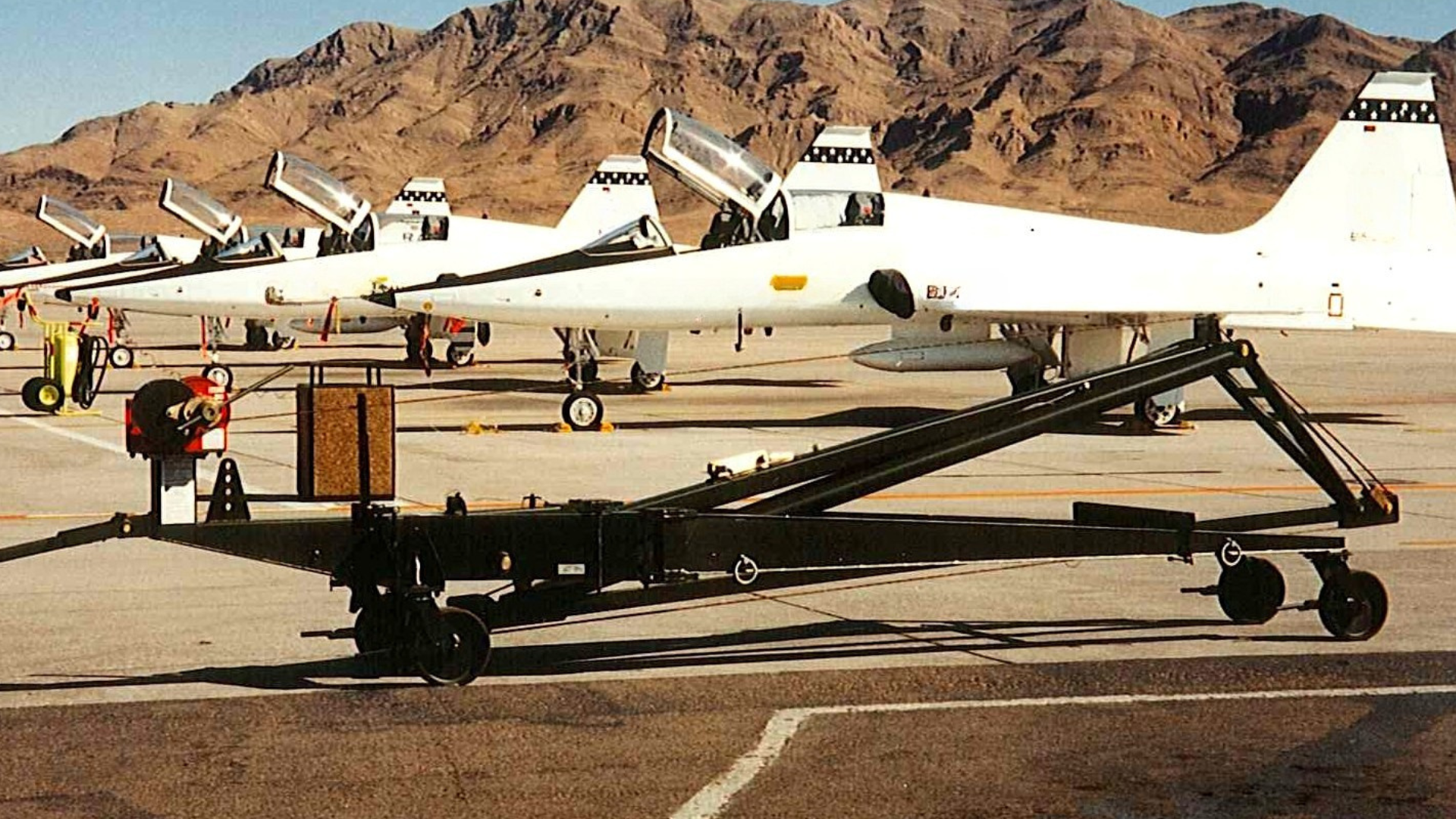

Portable Floor Crane

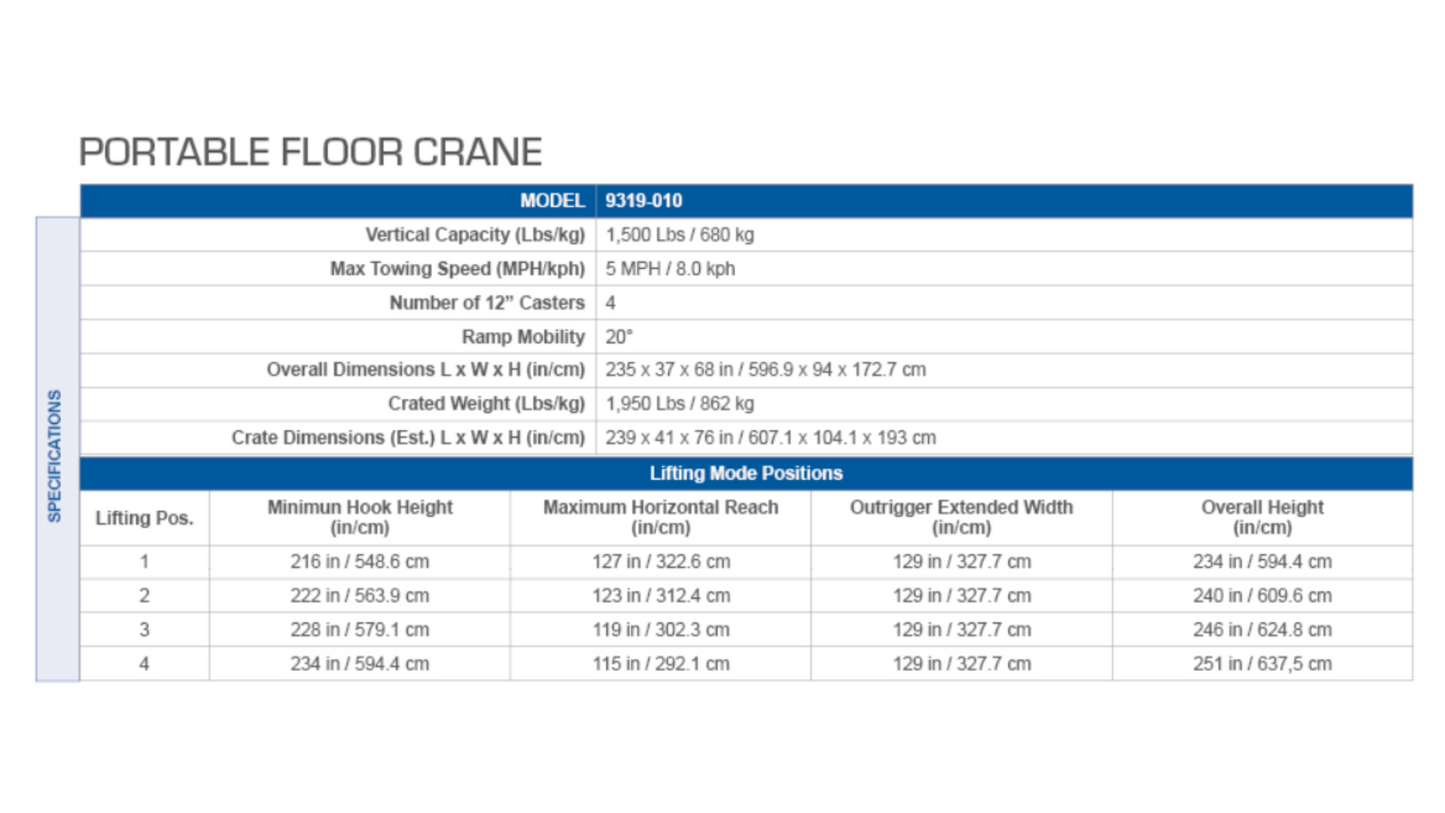

Performance

• Capacity Lb (Kg): 1500 (680)
• Maximum Towing Speed (Mph): 5
• Number Of Outriggers/Casters: 4 (12" casters)
• Ramp Mobility (Degrees): 20

Dimensions

• Height In (Cm): 68 (172.7)
• Hook Height In (Cm): Lifting Position 1: 216 (548.6) Lifting Position 2: 222 (563.9) Lifting Position 3: 228 (579.1) Lifting Position 4: 234 (594.4)
• Horizontal Reach In (Cm): Lifting Position 1: 127 (322.6) Lifting Position 2: 123 (312.4) Lifting Position 3: 119 (302.3) Lifting Position 4: 115 (292.1)
• Length In (Cm): 235 (595.9)
• Overall Height In (Cm): Lifting Position 1: 234 (594.4) Lifting Position 2: 240 (609.6) Lifting Position 3: 246 (624.8) Lifting Position 4: 251 (637.5)
• Outrigger Extended Width In (Cm): Lifting Position 1: 129 (327.7) Lifting Position 2: 129 (327.7) Lifting Position 3: 129 (327.7) Lifting Position 4: 129 (327.7)
• Weight Lb (Kg): 1500 (680)
• Width In (Cm): 37 (94)
