MALABAR

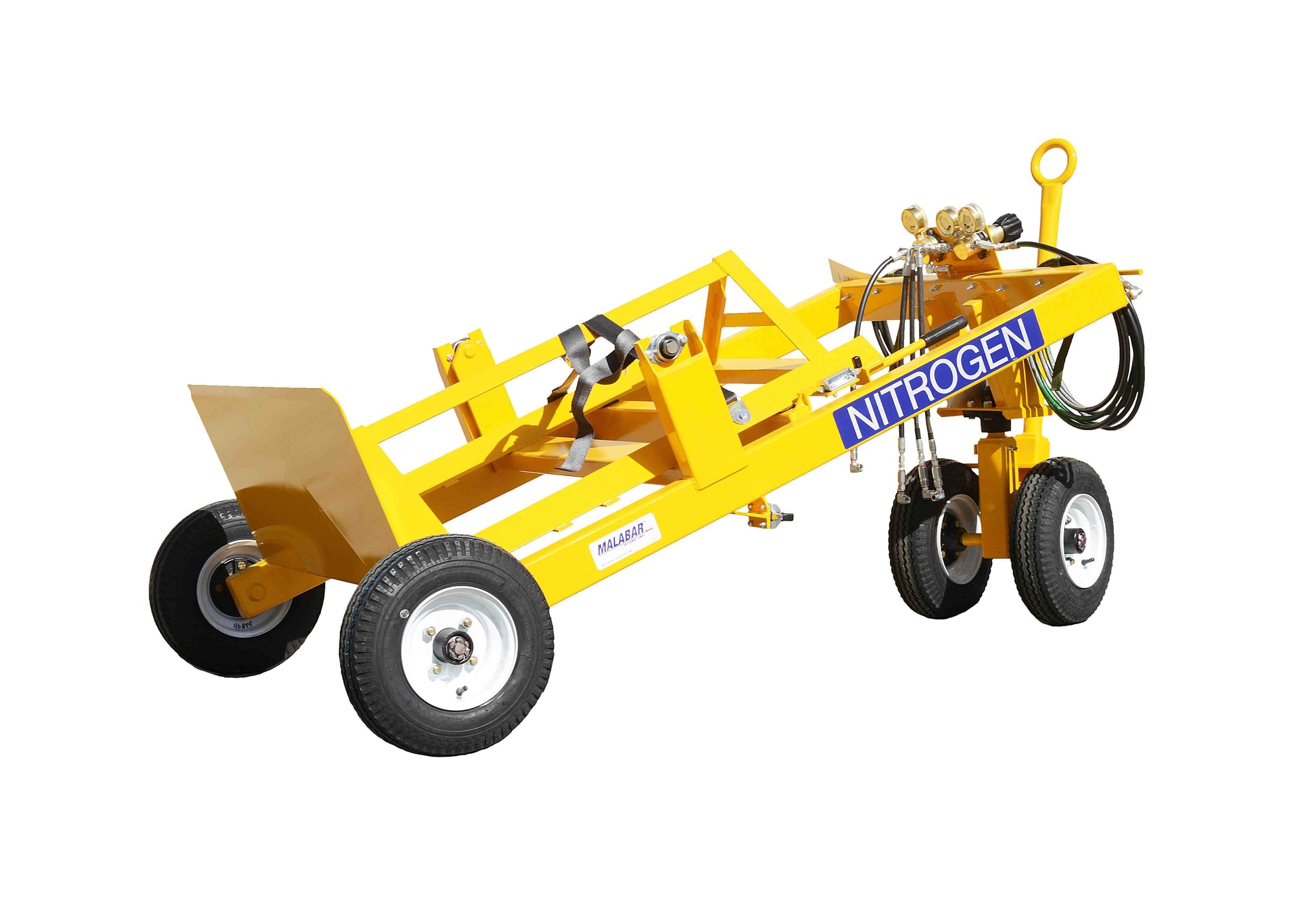

N2 Service Cart, 4-Bottle
894300-1
SKU:Model894300-1
Available to Order
Standard Features
- Rugged tubular steel frame
- Bottle restraint strap
- Two regulators with relief valves and gauges
- High pressure nitrogen hose with safety chuck to prevent filling low pressure tires from high pressure system
- Low pressure nitrogen hose with Schrader air chuck
- Towbar with 3 inch ID lunette ring and parking brake
- Skydrol resistant paint (safety yellow)
- 1 year standard warranty
- Shipment on domestic skid
Optional Features
- Nitrogen boost pump powered by air or nitrogen bottles
- 3600 psig nitrogen bottles (furnished empty) with CGA680 valve fittings installed
- Separate CGA680 bottle valve fittings
- Separate BS-341-3 bottle valve fittings
- Separate DIN-477-10 bottle valve fittings
- Separate CGA580 bottle valve fittings
- Customer specified paint color
- Export crating
MALABAR
894300-1
Specifications
Resources
Specifications
Type/Other
- Booster: No
Performance
- Bottle Capacity: 4
- High Operating Pressure (Psi): 0-4000
- Low Operating Pressure (Psi): 0-250
Fuel
- Gas: Nitrogen
Dimensions
- Height In (Cm): 47 (119.4)
- Length In (Cm): 91 (231.1)
- Weight Lb (Kg): 440 (200)
- Width In (Cm): 55 (139.7)
Resources
-
Current Operation and Service Manual
Please Note, this is the latest version of the OSM. If you need an OSM specific to your model and serial number, please use our OSM Search Tool here.
