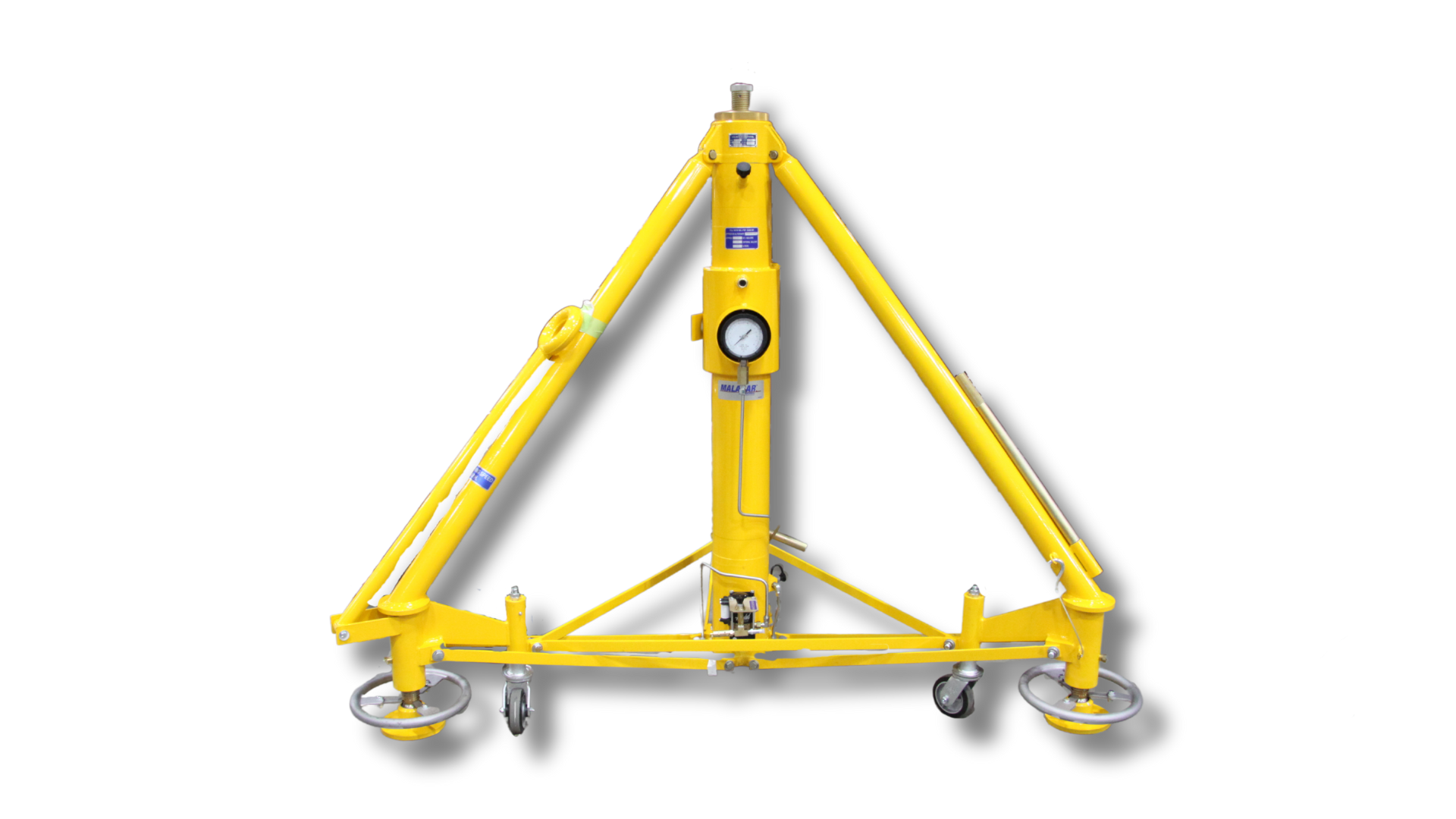

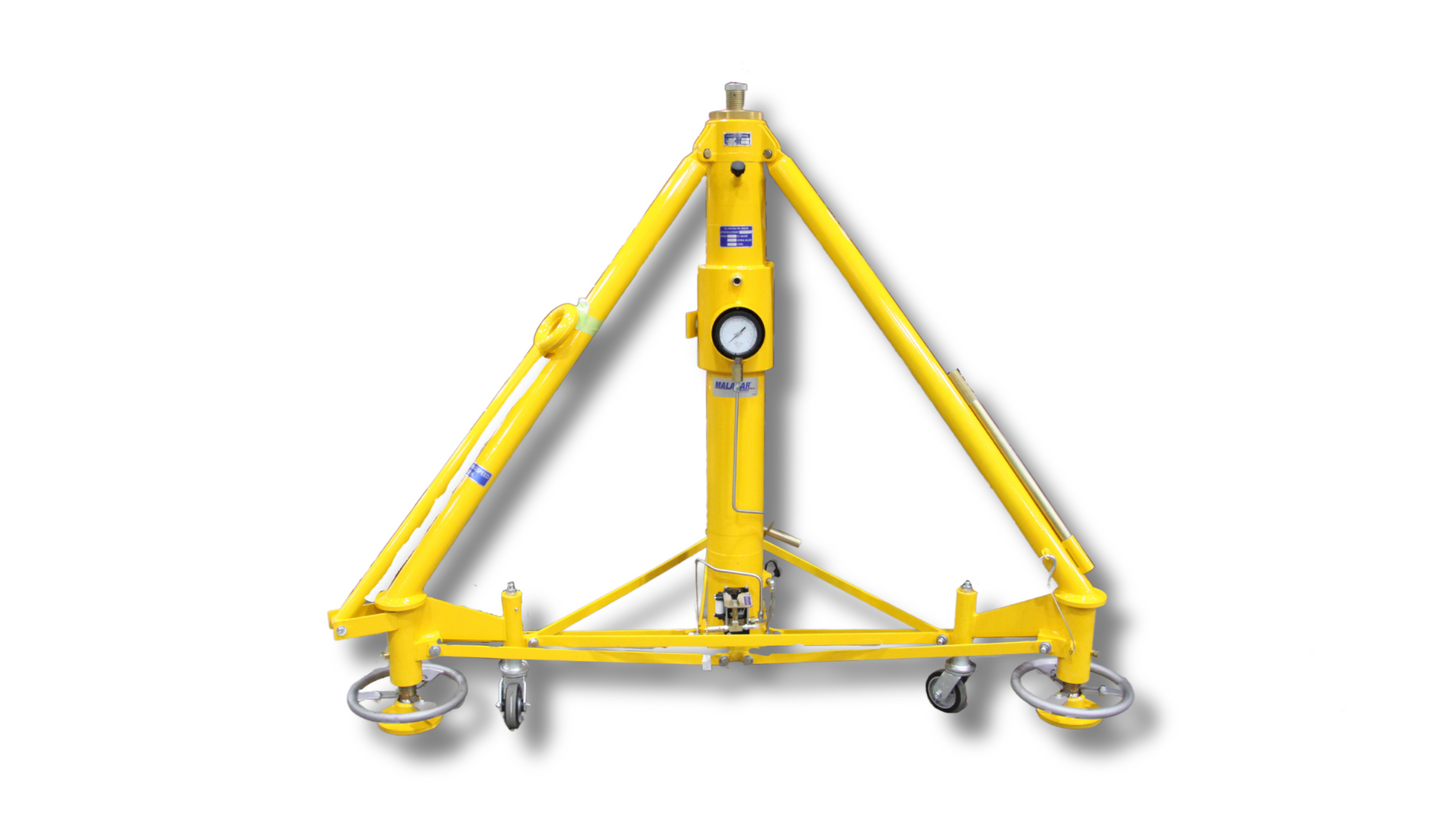

TRIPOD MODEL 8934 11-TON

Performance

• Capacity Tons: 11
• Maximum Towing Speed (Mph): 5

Dimensions

• Closed Height In (Cm): 67 (170.2)
• Extended Height In (Cm): 138 (350.5)
• Hydraulic Extension In (Cm) (Hydraulic Lift): 53 (134.6)
• Mechanical Extension In (Cm) (Extension Screw): 18 (45.7)
• Weight Lb (Kg): 600 (272)

Fluids

• Hydraulic Fluid: MIL-PRF-5606 or equivalent
• Reservoir Capacity (Gal): 3.7

Type/Other

• Single (S) Or Multi (M) Stage: S

• Current Operation and Service Manual
  Please Note, this is the latest version of the OSM. If you need an OSM specific to your model and serial number, please use our OSM Search Tool here.
