MALABAR

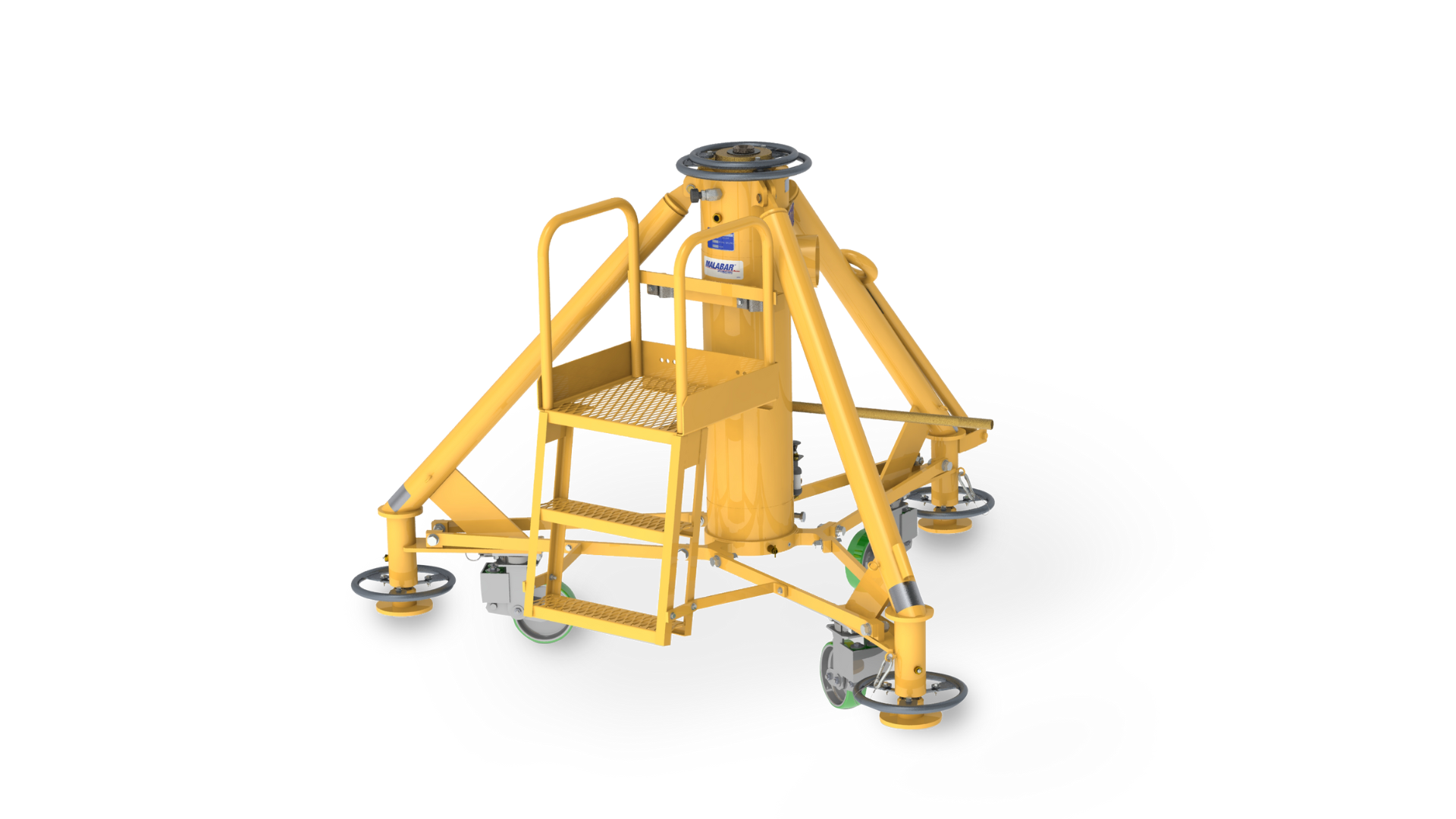

8923 Tripod Jack (12 Ton)

892300-5

Model892300-5

Lifting and shoring (ata-7)

Does this product fit your model?

View Aircraft Applications
Available to Order
Request a Quote
View full details

Standard Features

  • Rugged tubular steel frame
  • Manual hand pump with high, medium, and low pressure operating positions
  • Heavy duty spring loaded swivel casters for smooth jack maneuverability
  • Secondary cylinder seal to protect against contaminants and prolong life of primary seal
  • Rain hat (covers jack upper head)
  • Adjustable swivel feet with handwheels and level indicator
  • Hard chrome plated cylinder bore
  • All unpainted parts are plated to resist corrosion
  • Skydrol resistant paint (yellow)
  • Factory proof load @ 150% of rated capacity
  • 3 year standard warranty
  • Shipment on domestic skid

Optional Features

  • Air operated hydraulic pump
  • Load gauge for load indication (reads tons/psig)
  • Ladder/platform
  • Tow handle for ease of towing
  • Safety locknuts with handwheels
  • Air connection for remote air manifold operation
  • Customer specified paint color
  • Export crating

Variants

  • 892300-11 - AIR PUMP, LOCKNUT WITH HANDWHEEL, TOW HANDLE, LADDER
  • 892300-3 - AIR PUMP, TOW HANDLE, LADDER
  • Currently Viewing 892300-5 - AIR PUMP, GAUGE, TOW HANDLE
MALABAR

892300-5

Request a Quote

Specifications

Performance

  • Capacity Tons: 12

Dimensions

  • Closed Height In (Cm): 60 (152.4)
  • Extended Height In (Cm): 142 (360.7)
  • Hydraulic Extension In (Cm) (Hydraulic Lift): 70 (177.8)
  • Mechanical Extension In (Cm) (Extension Screw): 12 (30.5)
  • Weight Lb (Kg): 710 (322)

Fluids

  • Hydraulic Fluid: MIL-PRF-5606 or equivalent
  • Reservoir Capacity (Gal): 6.8

Type/Other

  • Single (S) Or Multi (M) Stage: M
