MALABAR

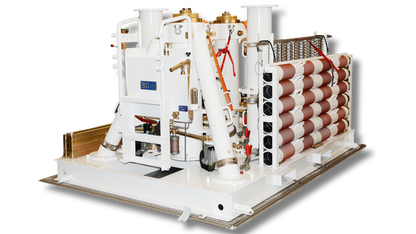

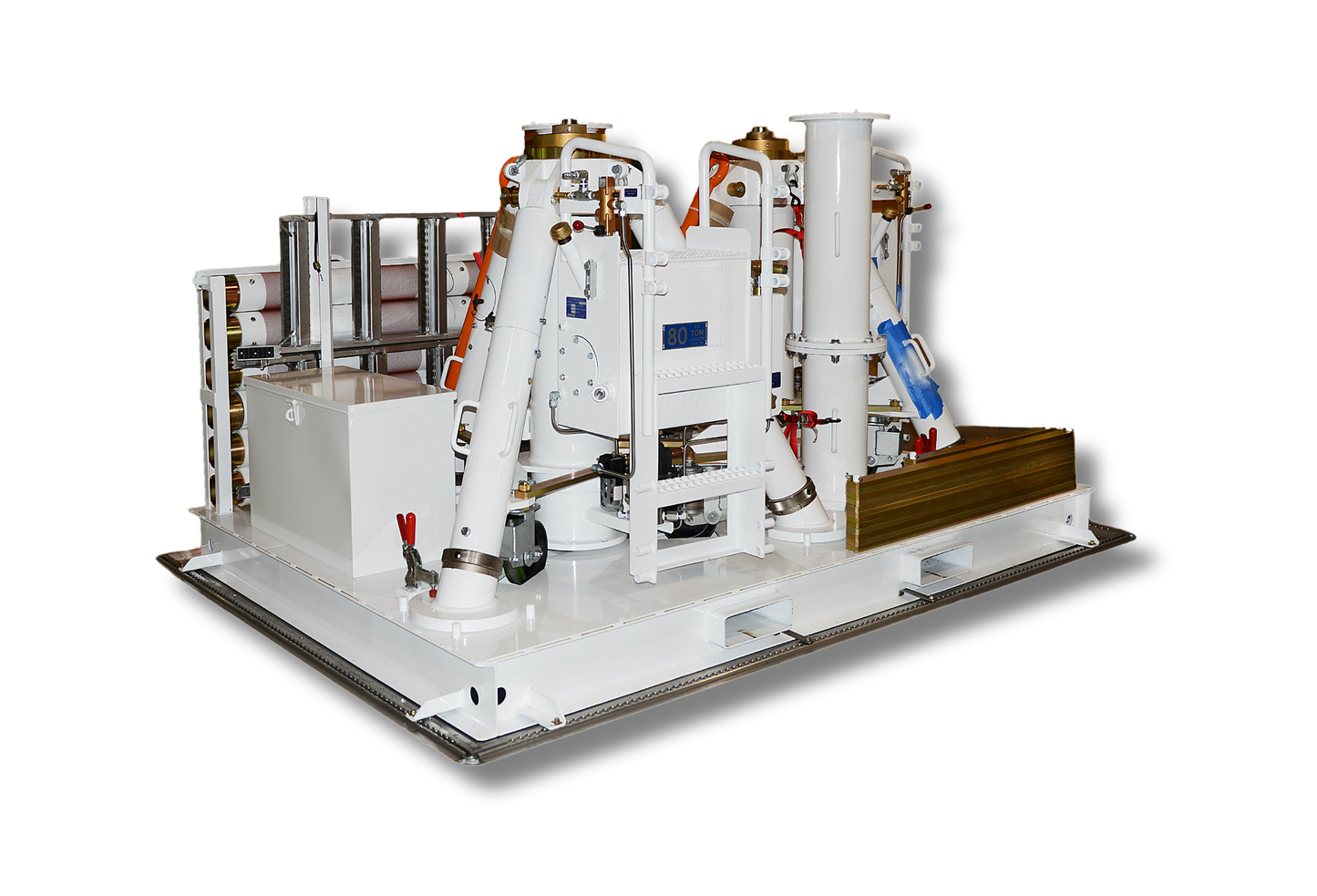

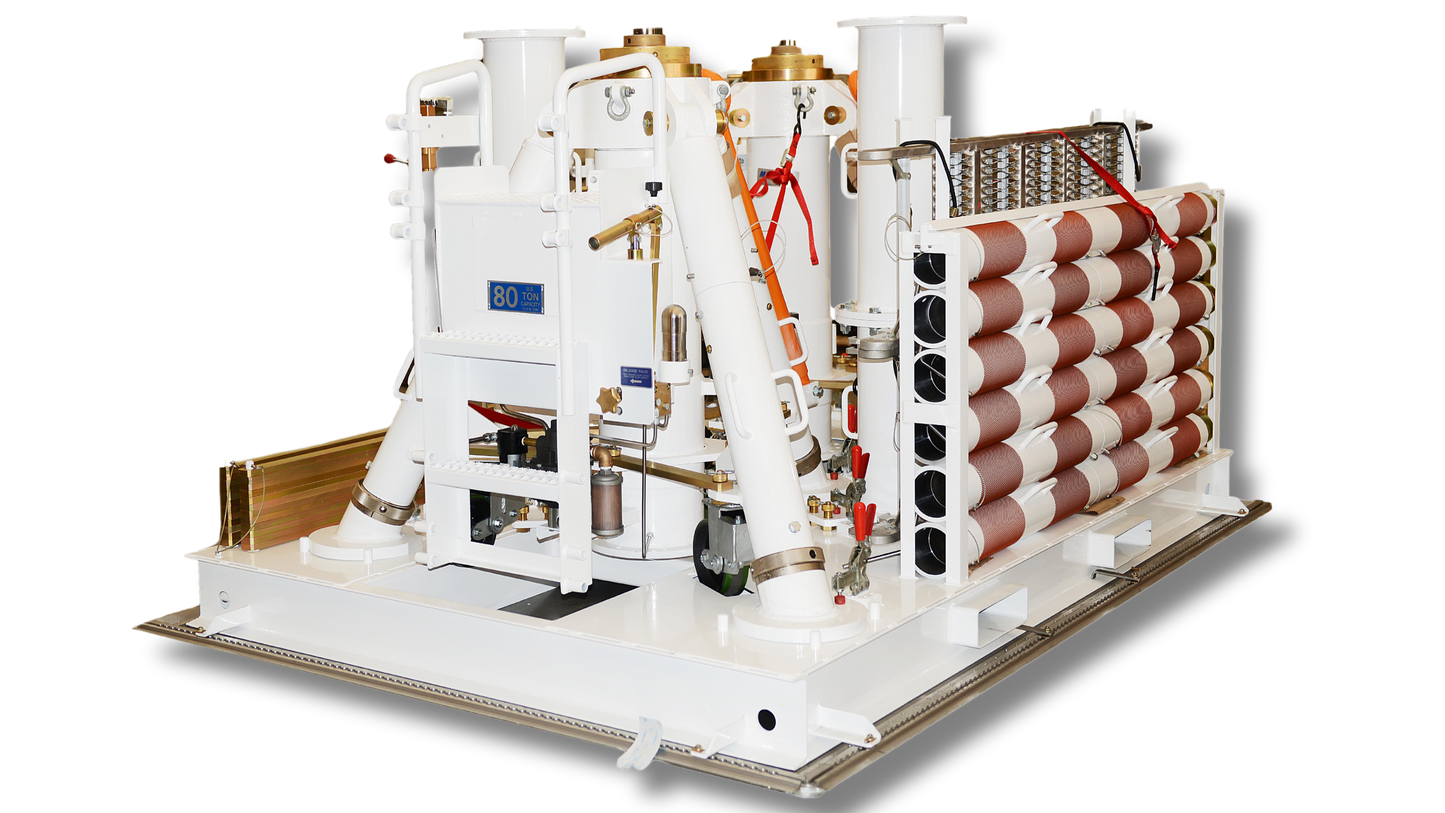

Universal Rapid Deployment Jack Set (80 Ton)

890100

Model890100

Lifting and shoring (ata-7)

Does this product fit your model?

View Aircraft Applications
Available to Order
Request a Quote
View full details

Standard Features

  • Four Model 8902 Tripod Jacks
  • Two pallet racks
  • Two 15 inch x 30 inch x 12-1/4 inch storage boxes
  • One B777 Tail Jack Extender
  • All unpainted parts are plated to resist corrosion
  • Skydrol resistant paint (safety yellow)
  • 1 year standard warranty
  • Pallet racks securely store jacks and are ready to be transported on standard 88 inch x 125 inch air cargo pallets
  • Toggle clamps, quick release pins and bungee cords are easily removed to rapidly deploy jacks

Optional Features

  • Four portable load gauge kits
  • Two 88 inch x 125 inch air cargo pallets
  • One jack extender kit (extends three Model 8902 Tripod Jacks to position 4 configuration. Contains one A330/340/350 tail jack extender)
  • Customer specified paint color

Variants

  • Currently Viewing 890100 - NONE
  • 890100-3 - Cargo Pallet (88" x 125")
MALABAR

890100

Request a Quote

Specifications

Performance

  • Capacity Tons: 80
  • Maximum Towing Speed (Mph): 5

Dimensions

  • Closed Height In (Cm): 155 (393.7)
  • Hydraulic Extension In (Cm) (Hydraulic Lift): 76 (193)
  • Mechanical Extension In (Cm) (Extension Screw): 15 (381)
  • Weight Lb (Kg): 4200 (1905)

Fluids

  • Hydraulic Fluid: MIL-PRF-5606 or equivalent
  • Reservoir Capacity (Gal): 23

Type/Other

  • Jack Application: 890200
