MALABAR

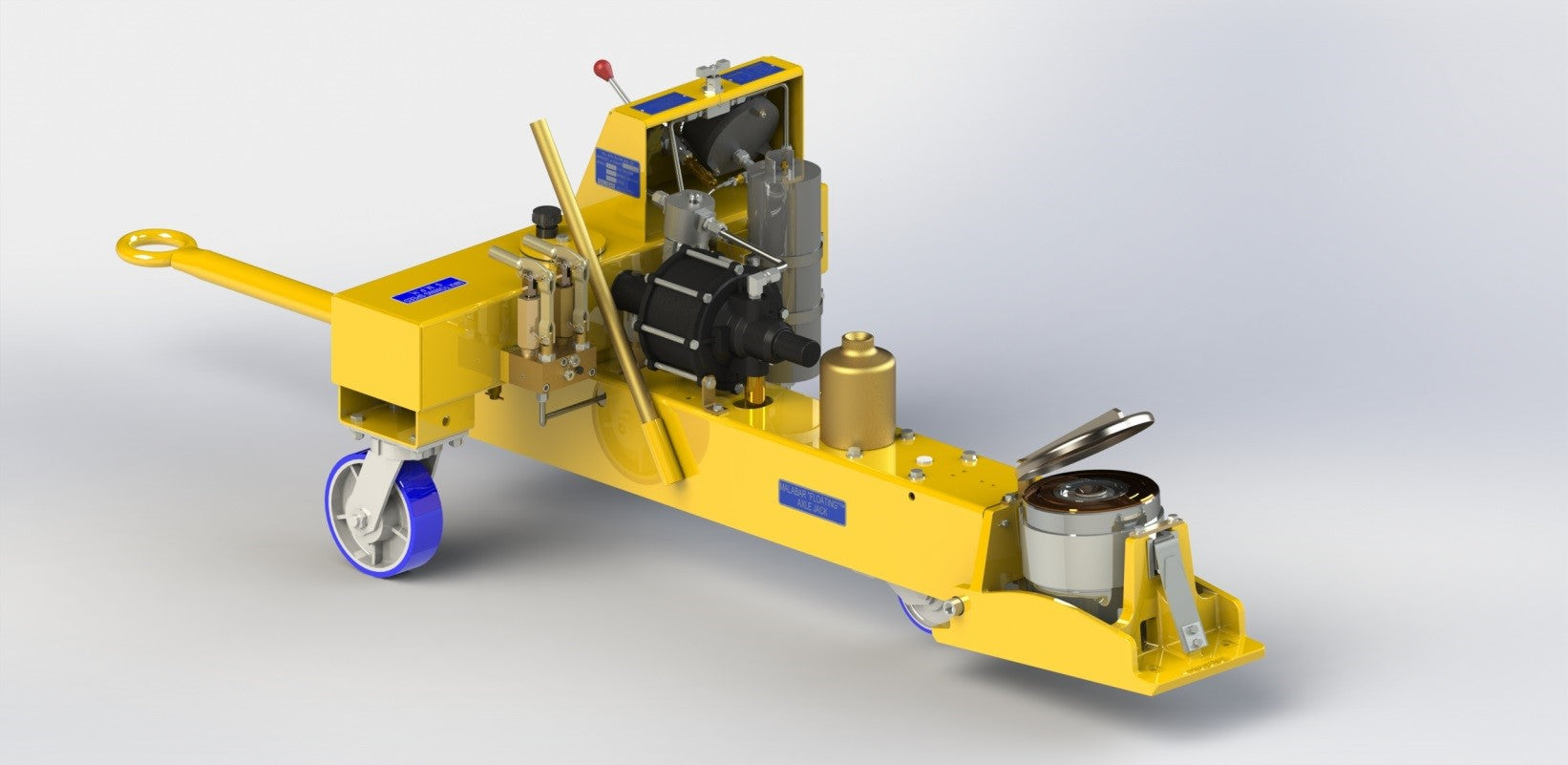

8899 Axle Jack (95 Ton)

889900-17

Model889900-17

Lifting and shoring (ata-7)

Does this product fit your model?

View Aircraft Applications
Available to Order
Request a Quote
View full details

Standard Features

  • Patented floating cylinder assembly allows unit to track arc of landing gear jack point, eliminating excessive side loads on jack and landing gear thus providing safer operation and extending jack life
  • Double acting auto-retract cylinder assembly incorporates a fluid bath for sealing surfaces to minimize corrosion and extend seal life. It also includes Skydrol resistant seals and bronze upper bearings for longer service life.
  • Auto-retract plungers remain fully retracted while jack is being towed or in storage to protect against corrosion, contaminants and accidental damage
  • Single valve control for simple and easy aircraft raising, lowering and auto-retract. Jack retracts to full retracted position automatically, which provides for easy removal from under aircraft jack point after each operation.
  • Control console with all controls conveniently mounted for ease of operation
  • Hydraulic fuse at the cylinder assembly prevents lowering of load in the event of a hose failure
  • 8 inch diameter heavy duty swivel casters and retractable front wheel with Skydrol resistant tread. Shock absorbing spring loaded front caster retracts automatically while jacking.
  • Two manual hand pumps (one high pressure, low volume and one low pressure, high volume)
  • Oil filter cap with filtered air vent and dipstick
  • Hard chrome plated cylinder and plunger bores
  • All unpainted parts are plated to resist corrosion
  • Skydrol resistant paint (safety yellow)
  • Factory proof load @ 125% of rated capacity
  • 1 year standard warranty
  • Fully enclosed shipping container with skid

Optional Features

  • Standard air operated hydraulic pump
  • High speed air operated hydraulic pump
  • Load gauge for load indication (reads tons/psig)
  • Air line lubricator (for air operated hydraulic pump)
  • Rain hat (covers cylinder assembly)
  • Customer specified paint color

Variants

  • 889900-16 - HIGH FLOW AIR PUMP, LUBRICATOR (REQUIRES HIGH FLOW AIR PUMP), RAIN HAT
  • Currently Viewing 889900-17 - HIGH FLOW AIR PUMP, GAUGE, LUBRICATOR (REQUIRES HIGH FLOW AIR PUMP), RAIN HAT
MALABAR

889900-17

Request a Quote

Specifications

Performance

  • Capacity Tons: 95

Dimensions

  • Closed Height In (Cm): 10.5 (27)
  • Extended Height In (Cm): 26 (66)
  • Hydraulic Extension In (Cm) (Hydraulic Lift): 10.88 (27.6)
  • Length In (Cm): 63.5 (161)
  • Mechanical Extension In (Cm) (Extension Screw): 4.62 (11.7)
  • Weight Lb (Kg): 580 (263)
  • Width In (Cm): 10 (25)

Type/Other

  • Hand Pump/Air Pump: Air Pump
  • Single (S) Or Multi (M) Stage: M
