MALABAR

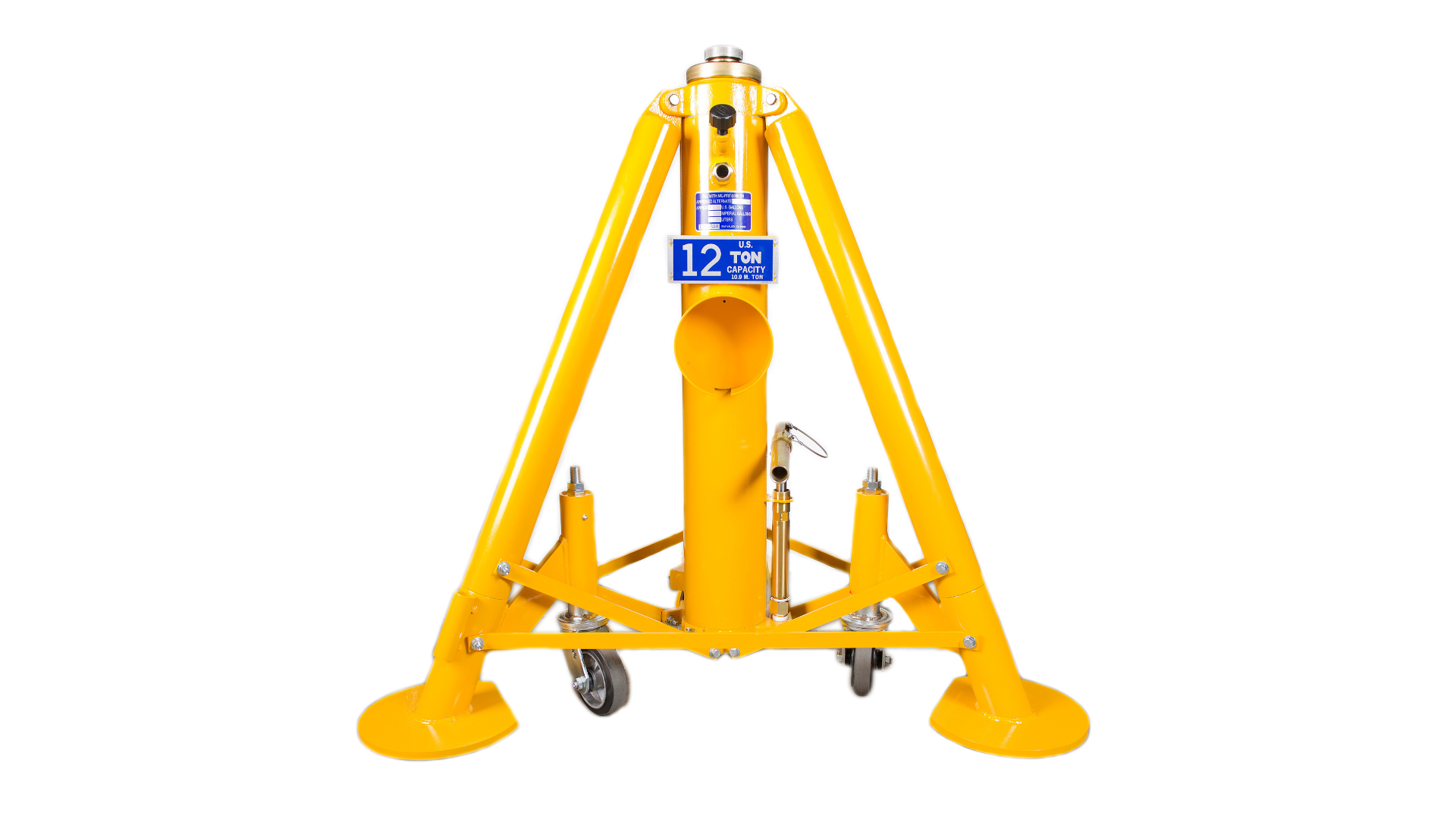

8857 Tripod Jack (12 Ton)

885700-9

Model885700-9

Lifting and shoring (ata-7)
Available to Order
Request a Quote
View full details

Standard Features

  • Manual hand pump with high, medium and low pressure operating positions
  • Heavy duty swivel casters
  • Rain hat (covers jack upper head)
  • Hard chrome plated cylinder bore
  • All unpainted parts are plated to resist corrosion
  • Skydrol resistant paint (safety yellow)
  • Factory proof load @ 150% of rated capacity
  • 3 year standard warranty
  • Shipment on domestic skid

Optional Features

  • Air operated hydraulic pump
  • Load gauge for load indication (reads tons/psig)
  • Tow handle for ease of towing
  • 18 inch leg extension kit
  • Customer specified paint color
  • Export crating
MALABAR

885700-9

Request a Quote

Specifications

Resources

Specifications

Performance

  • Capacity Tons: 12

Dimensions

  • Closed Height In (Cm): 42 (107)
  • Extended Height In (Cm): 78 (198)
  • Hydraulic Extension In (Cm) (Hydraulic Lift): 26 (66)
  • Mechanical Extension In (Cm) (Extension Screw): 10 (25.4)
  • Weight Lb (Kg): 550 (249)

Type/Other

  • Hand Pump/Air Pump: Hand Pump
  • Single (S) Or Multi (M) Stage: S
