MALABAR

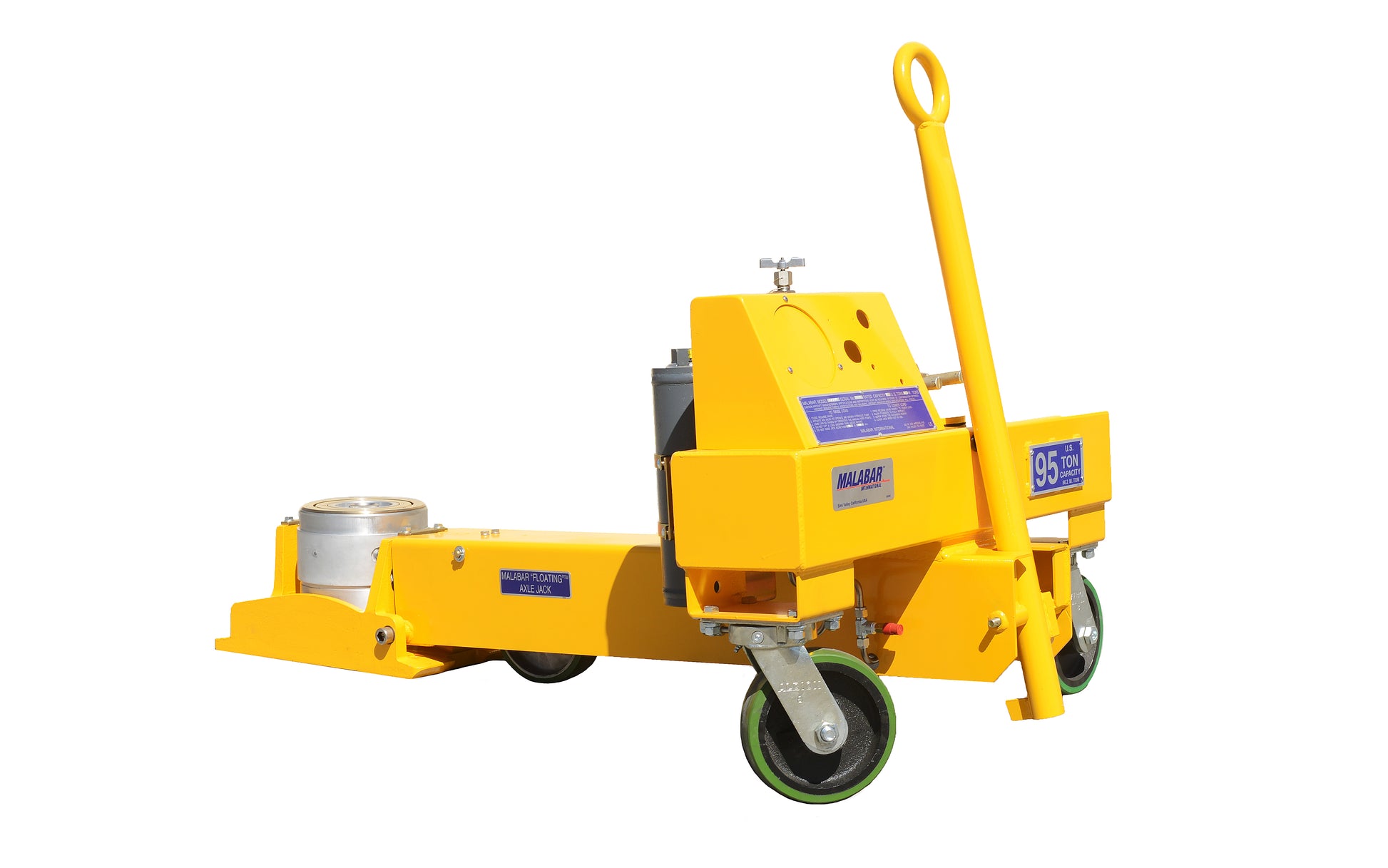

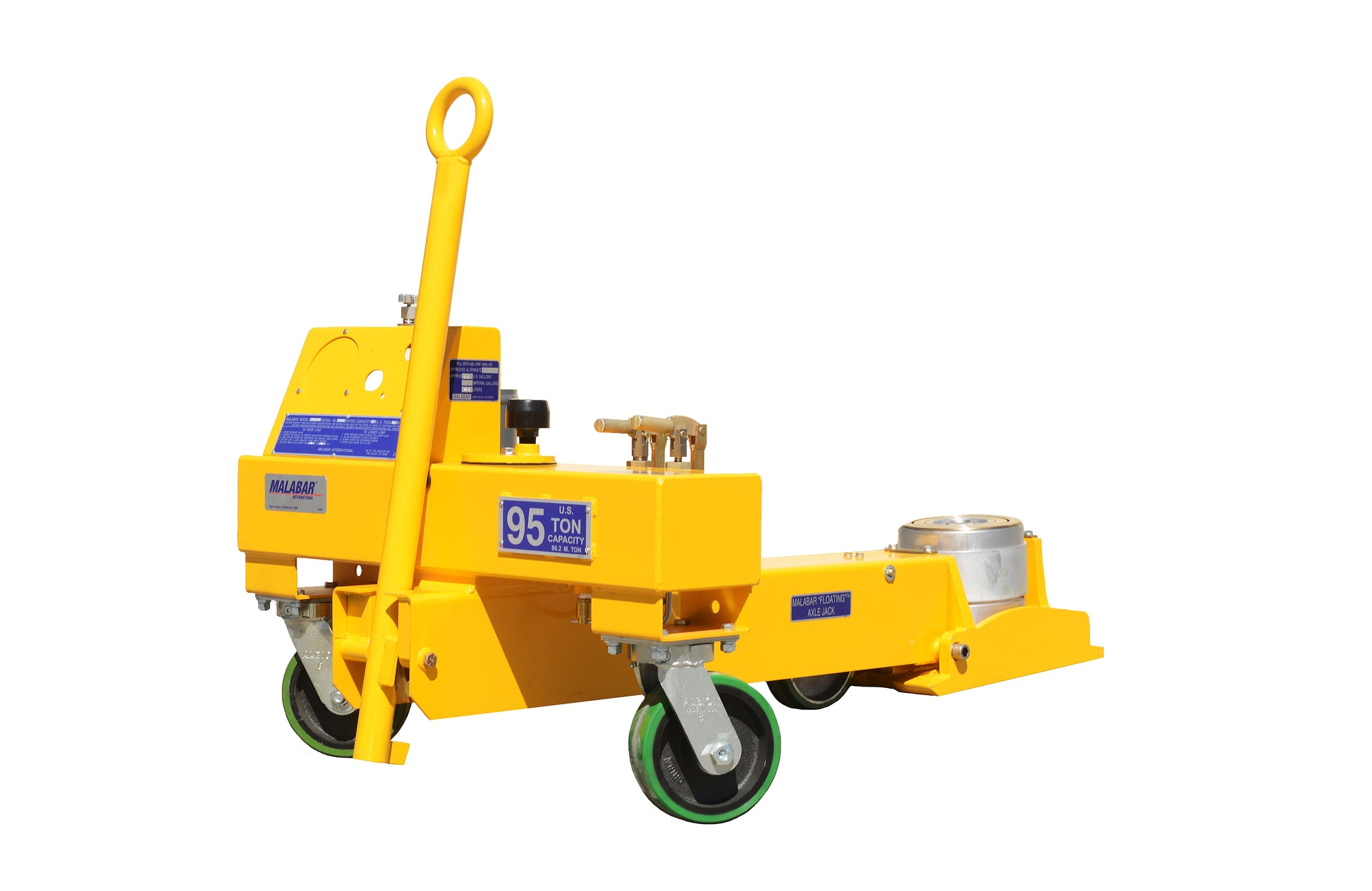

95P10AR Axle Jack (95 Ton)

885500-17

Model885500-17

Lifting and shoring (ata-7)

Does this product fit your model?

View Aircraft Applications
Available to Order
Request a Quote
Icons/Caret-Right

Separate Adaptor may be required for some aircraft models. View Adaptor

View full details

Standard Features:

Patented floating cylinder assembly allows unit to track arc of landing gear jack point, eliminating excessive side loads on jack and landing gear thus providing safer operation and extending jack life
Double acting auto-retract cylinder assembly incorporates a fluid bath for sealing surfaces to minimize corrosion and extend seal life. It also includes Skydrol resistant seals and bronze upper bearings for longer service life.
Auto-retract plungers remain fully retracted while jack is being towed or in storage to protect against corrosion, contaminants and accidental damage
Single valve control for simple and easy aircraft raising, lowering and auto-retract. Jack retracts to full retracted position automatically which provides for easy removal from under aircraft jack point after each operation.
Control console with all controls conveniently mounted for ease of operation
Hydraulic fuse at the cylinder assembly prevents lowering of load in the event of a hose failure
8 inch diameter heavy duty swivel casters and retractable front wheel with Skydrol resistant tread. The tow handle actuated front wheel provides improved ground clearance for towing.
Two manual hand pumps (one high pressure, low volume and one low pressure, high volume)
Oil filter cap with filtered air vent and dipstick
Hard chrome plated cylinder and plunger bores
All unpainted parts are plated to resist corrosion
Skydrol resistant paint (safety yellow)
Factory proof load @ 125% of rated capacity
1 year standard warranty
Fully enclosed shipping container with skid

MALABAR

885500-17

Request a Quote

Specifications

Performance

  • Capacity Tons: 95

Dimensions

  • Closed Height In (Cm): 10.5 (27)
  • Extended Height In (Cm): 26 (66)
  • Hydraulic Extension In (Cm) (Hydraulic Lift): 10.88 (27.6)
  • Length In (Cm): 63.5 (161)
  • Mechanical Extension In (Cm) (Extension Screw): 4.62 (11.7)
  • Weight Lb (Kg): 580 (263)
  • Width In (Cm): 10 (25)

Type/Other

  • Hand Pump/Air Pump: Air Pump
  • Single (S) Or Multi (M) Stage: M

Aircraft Applications

Airbus - Wide Body Universal,

Boeing - Wide Body Universal
