MALABAR

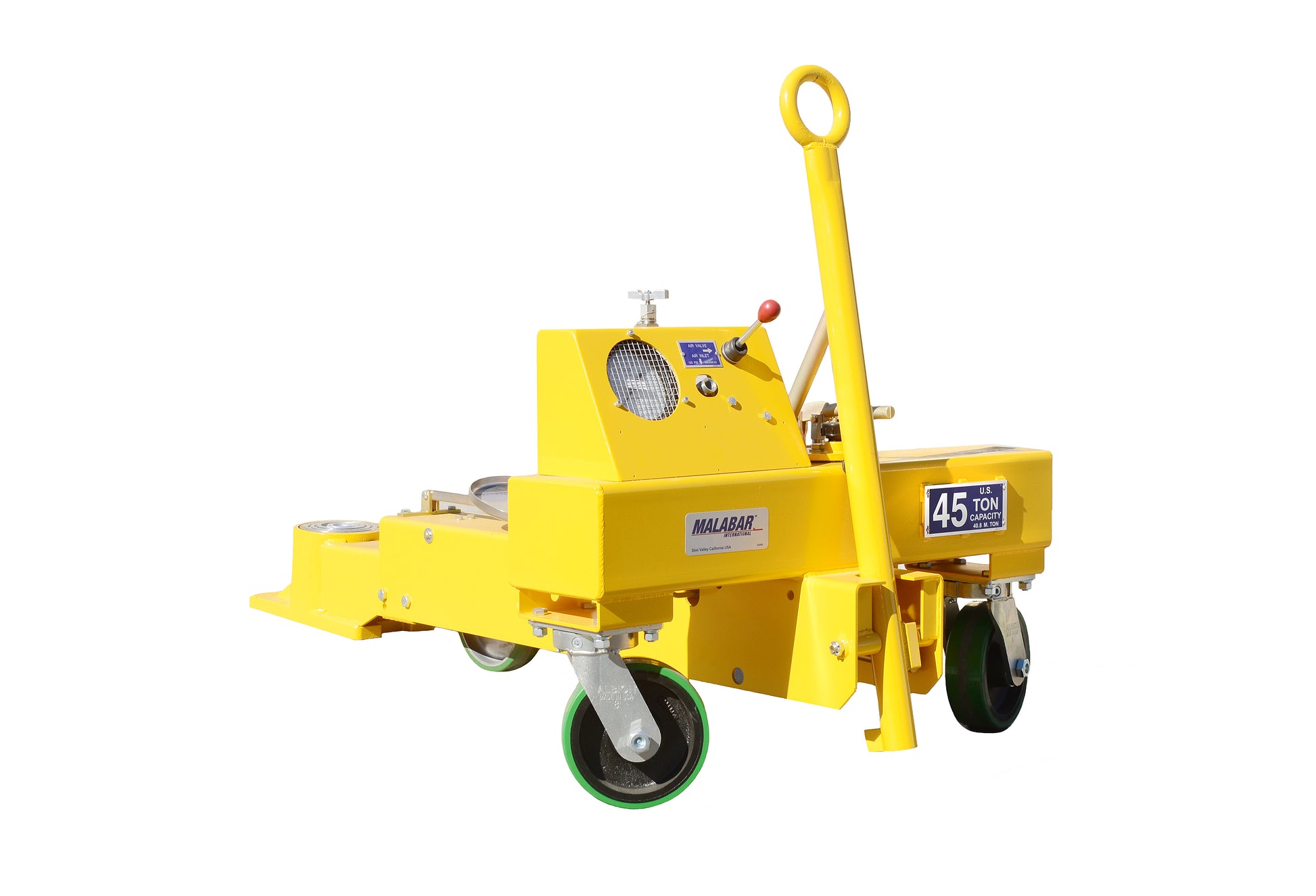

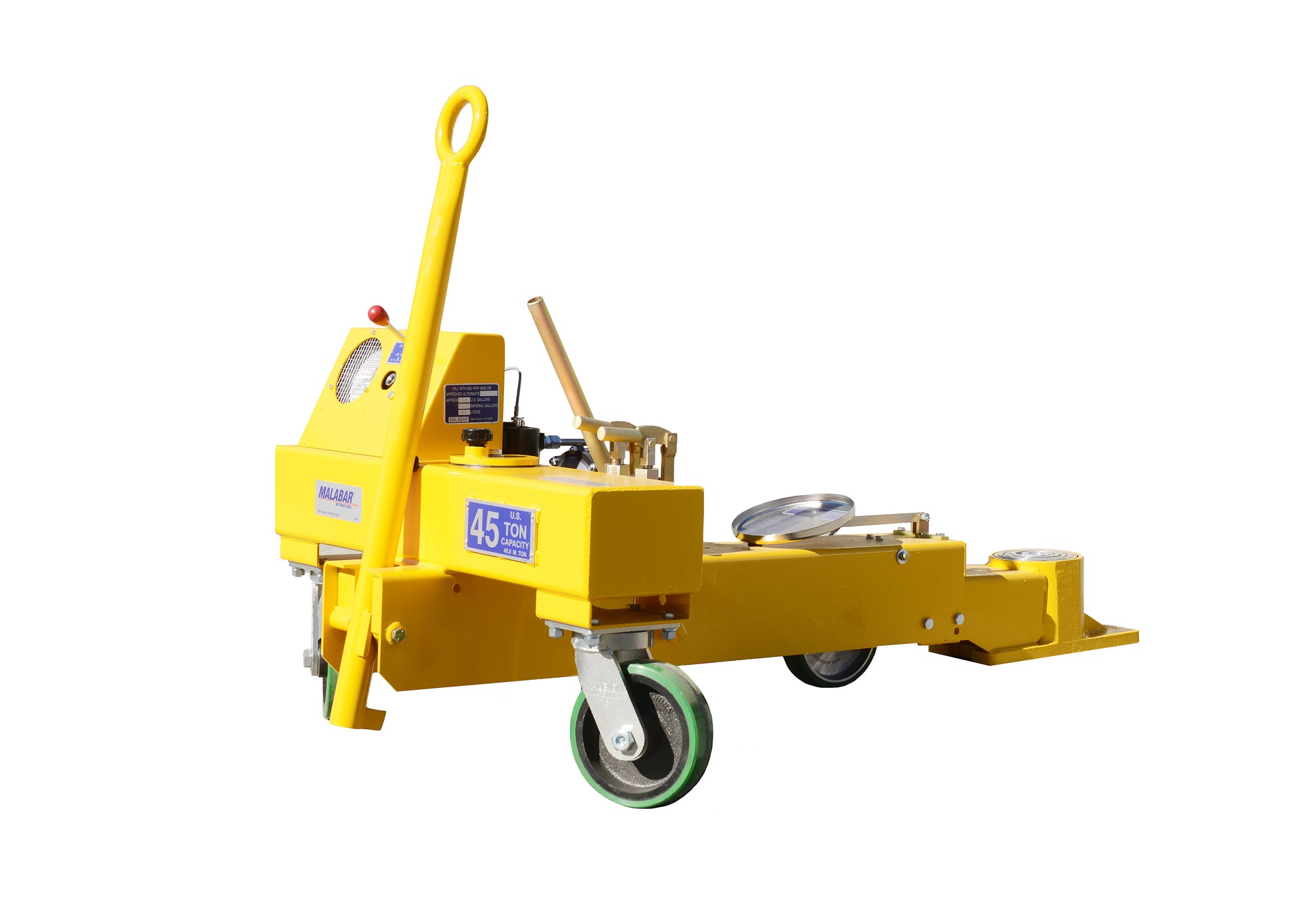

8842 Axle Jack (45 Ton)
884200-7
SKU:Model884200-7
Does this product fit your model?
View Aircraft Applications
Available to Order
Standard Features
- Hard chrome plated cylinder and plunger bores
- Single valve control for simple and easy aircraft raising and lowering
- Control console with all controls conveniently mounted for ease of operation
- 8 inch diameter heavy duty swivel casters and retractable front wheel with Skydrol resistant tread. The tow handle actuated front wheel provides improved ground clearance for towing.
- Hydraulic fuse at the cylinder assembly prevents lowering of load in the event of a fluid line failure
- Two manual hand pumps (one high pressure, low volume and one low pressure, high volume)
- Oil filter cap with filtered air vent and dipstick
- All unpainted parts are plated to resist corrosion
- Skydrol resistant paint (safety yellow)
- Factory proof load @ 62.5 tons
- 1 year standard warranty
- Fully enclosed shipping container with skid
Optional Features
- Air operated hydraulic pump
- Air retract (for fast plunger retraction)
- Load gauge for load indication (reads tons/psig)
- Long extension screw (1 inch extra low/extended height)
- Air line lubricator (for air operated hydraulic pump)
- Rain hat (covers cylinder assembly)
- Customer specified paint color
Variants
MALABAR
884200-7
Specifications
Performance
- Capacity Tons: 45
Dimensions
- Closed Height In (Cm): 7 (18)
- Extended Height In (Cm): 22 (56)
- Hydraulic Extension In (Cm) (Hydraulic Lift): 12 (30.5)
- Length In (Cm): 66 (168)
- Mechanical Extension In (Cm) (Extension Screw): 3 (7.6)
- Weight Lb (Kg): 450 (204)
- Width In (Cm): 7 (18)
Type/Other
- Hand Pump/Air Pump: Air Pump
- Single (S) Or Multi (M) Stage: M
