MALABAR

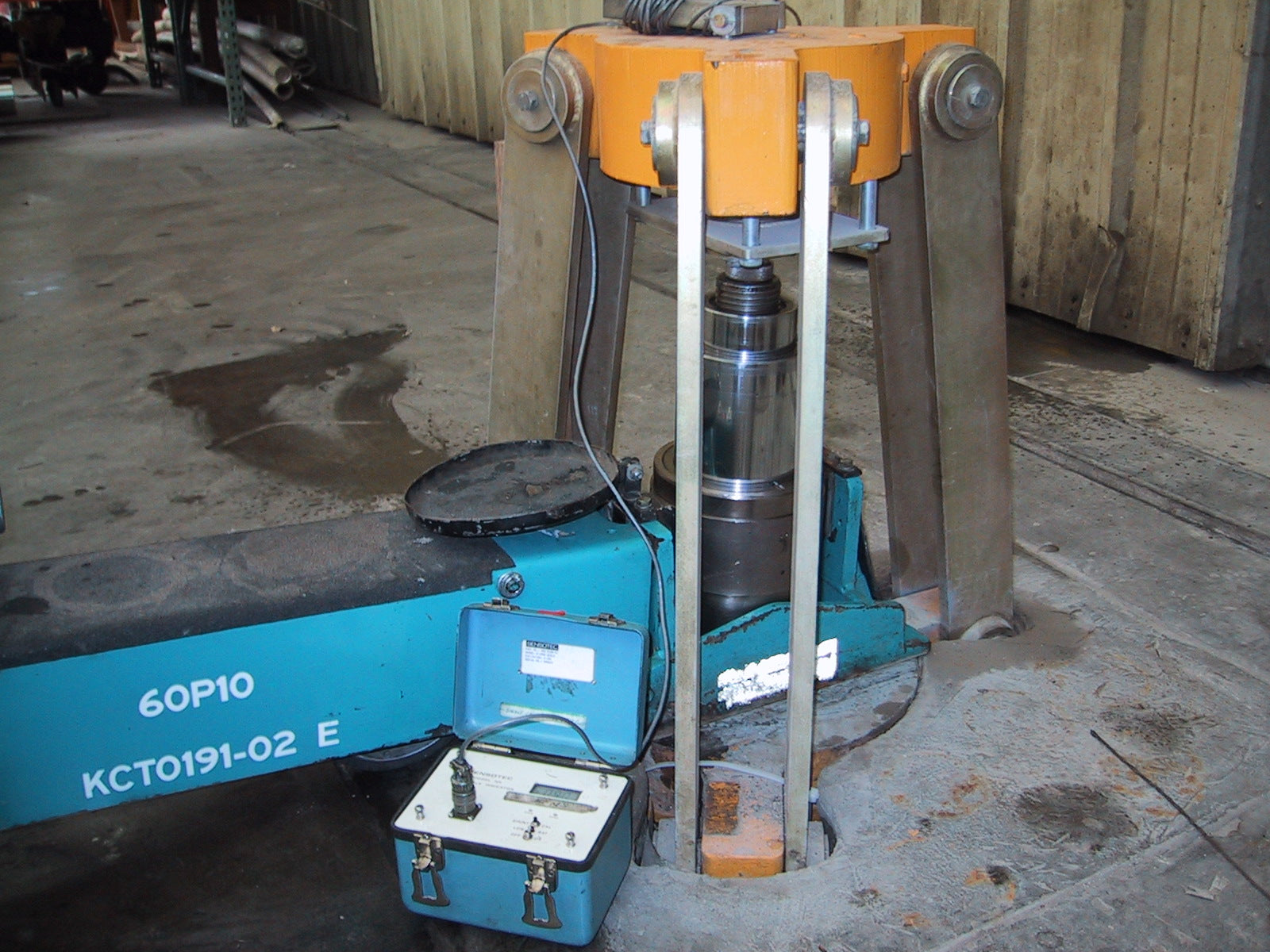

Universal Axle Jack Test Stand (100 Ton)
883300-2
SKU:Model883300-2
Available to Order
Standard Features
- Rugged steel base, load bars and head
- Integral lift bar for easy transportability
- 100 ton capacity electronic load cell
- Portable read-out (digital indicator)
- 10 foot long cable to connect portable read-out to load cell
- Battery operated with four standard "D" size batteries
- Easy zero and span adjustments
- Read-out includes shunt-cal feature to verify calibration
- Multiple 3/4 inch and 1/2 inch (19 and 12.7 mm) spherical radius jack adapters
Optional Features
- Repair kit
- Export crating
- Customer specified paint color
Variants
- Currently Viewing 883300-2 - ELECTRONIC LOAD CELL
- 883300-4 - PARTIAL ASSEMBLY USED IN CONJUNCTION WITH 8429E
MALABAR
883300-2
Specifications
Resources
Specifications
Dimensions
- Height In (Cm): 33.12 (84.1)
- Length In (Cm): 24.31 (61.8)
- Weight Lb (Kg): 775 (352)
- Width In (Cm): 27.56 (70)
Type/Other
- Portable: Yes
Performance
- Rated Capacity Tons: 100
Resources
-
Current Operation and Service Manual
Please Note, this is the latest version of the OSM. If you need an OSM specific to your model and serial number, please use our OSM Search Tool here.
