MALABAR

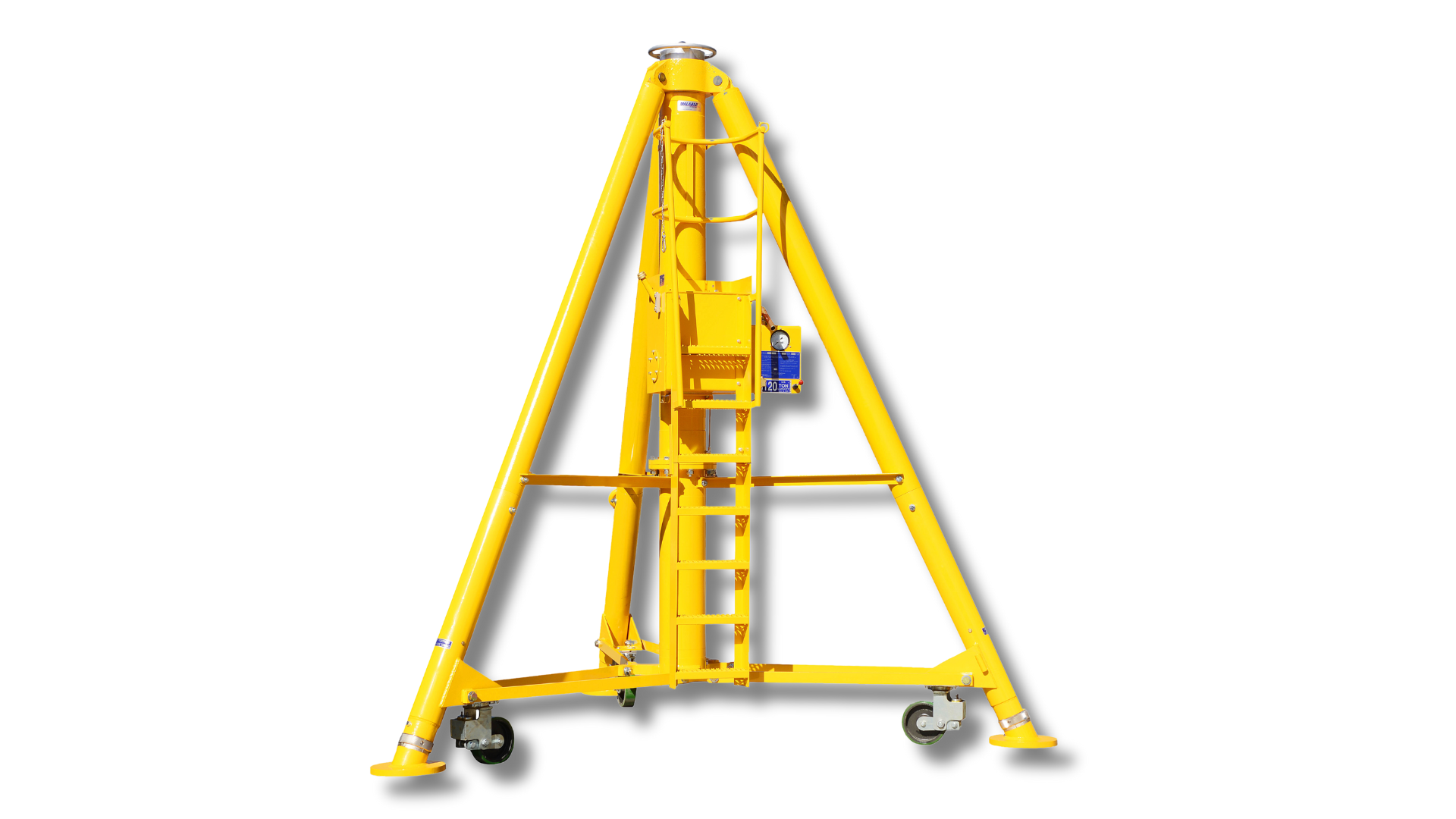

8811B Tripod Jack (120 Ton)

881100B-7

Model881100B-7

Lifting and shoring (ata-7)

Does this product fit your model?

View Aircraft Applications
Available to Order
Request a Quote
View full details

Standard Features

  • Manual hand pump with high, medium and low pressure operating positions
  • Heavy duty tow handle and swivel casters with swivel locks for improved towing
  • Spring loaded swivel casters for smooth jack maneuverability
  • Hydraulic thermal relief valve for added protection and safety in the event of internal fluid expansion due to temperature
  • Secondary cylinder seal for protection against contaminants and prolong life of primary seal
  • Rain hat (covers jack upper head)
  • Hard chrome plated cylinder bore
  • All unpainted parts plated for corrosion resistance
  • Skydrol resistant paint (safety yellow standard)
  • Factory proof loaded @ 150% of rated capacity
  • 3 year standard warranty
  • Shipment on domestic skid

Optional Features

  • Leg kit 1 - 98 inch low height
  • Leg kit 2 - 116 inch low height
  • Leg kit 3 - 160 inch low height
  • Air operated hydraulic pump
  • Load gauge for load indication (reads tons/psig)
  • Adjustable swivel feet with level for leveling jack
  • Hydraulic operated casters provide ease in jack leveling and increased ground clearance for towing
  • Shock absorber (requires hydraulic casters)
  • Ladder/platform
  • Platform mounted operating controls allow oneperson to position locknut while controlling lifting and lowering operations
  • Customer specified paint color
  • Export crating

Variants

  • 881100B-11-5 - AIR PUMP, GAUGE, 160" JACK LOW HEIGHT ADJUSTABLE FOOT LEG KIT, LADDER
  • 881100B-13 - AIR PUMP, GAUGE, 98" JACK LOW HEIGHT ADJUSTABLE FOOT LEG KIT, ADJUSTABLE FOOT WITH HYDRAULIC CASTER, LADDER, RAIN HAT
  • 881100B-4 - AIR PUMP, GAUGE, 98" JACK LOW HEIGHT ADJUSTABLE FOOT LEG KIT, ADJUSTABLE FOOT WITH HYDRAULIC CASTER, SHOCK ABSORBER (REQUIRES HYDRAULIC CASTER), LADDER, RAIN HAT
  • Currently Viewing 881100B-7 - AIR PUMP, GAUGE, 116" JACK LOW HEIGHT ADJUSTABLE FOOT LEG KIT, ADJUSTABLE FOOT WITH HYDRAULIC CASTER, SHOCK ABSORBER (REQUIRES HYDRAULIC CASTER), LADDER, RAIN HAT
  • 881100B-8 - AIR PUMP, GAUGE, 98" JACK LOW HEIGHT ADJUSTABLE FOOT LEG KIT, LADDER
MALABAR

881100B-7

Request a Quote

Specifications

Dimensions

  • Base Radius: 33.5
  • Closed Height In (Cm): 98 (249)
  • Extended Height In (Cm): 202 (513)
  • Hydraulic Extension In (Cm) (Hydraulic Lift): 76 (193)
  • Mechanical Extension In (Cm) (Extension Screw): 28 (71.1)
  • Weight Lb (Kg): 4800 (2177)

Performance

  • Capacity Tons: 120

Type/Other

  • Hand Pump/Air Pump: Air Pump
  • Single (S) Or Multi (M) Stage: S
