MALABAR

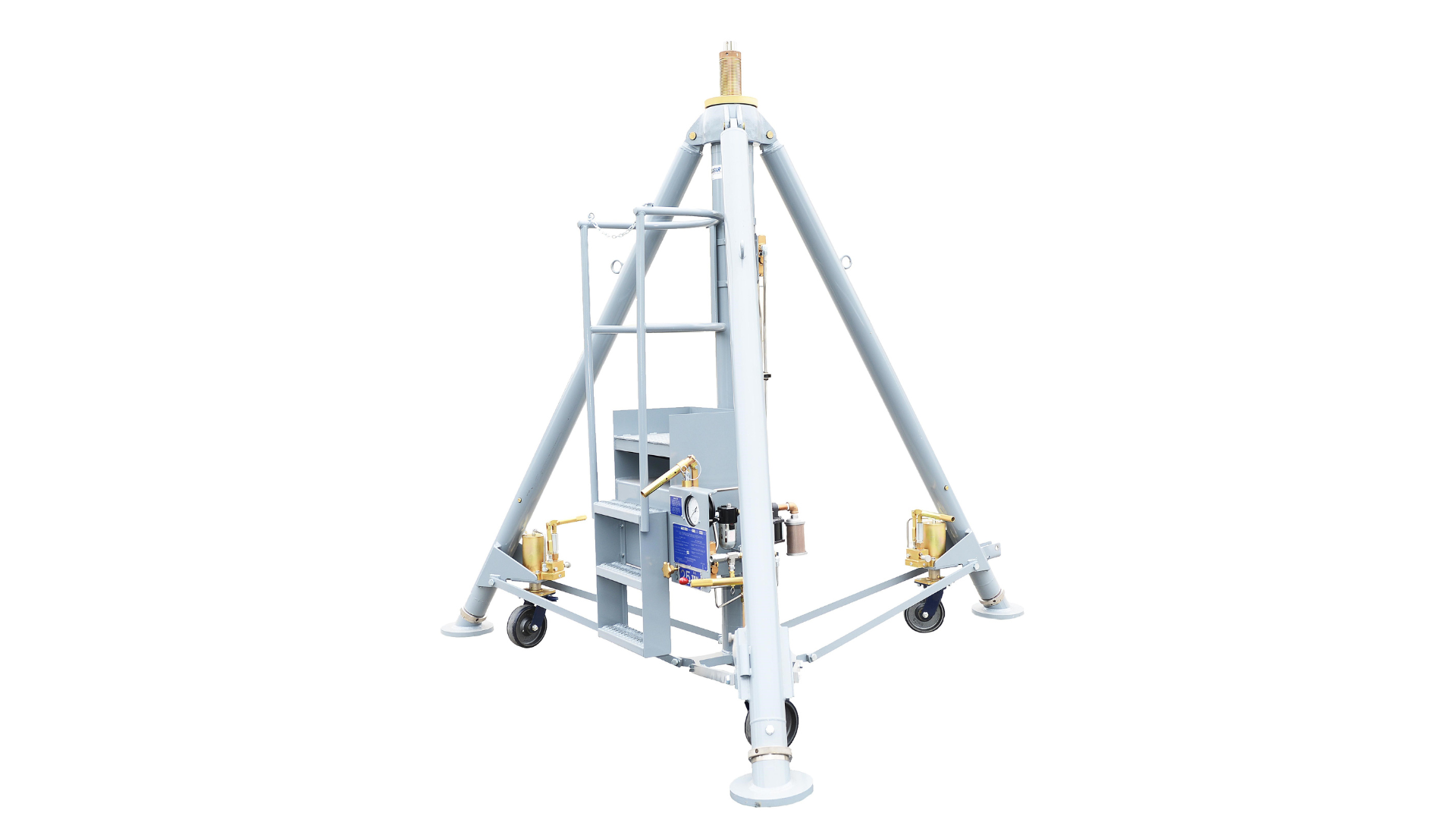

8810B Tripod Jack (30 Ton)

881000B-10

Model881000B-10

National Stocking Number: 1730-01-632-6801

Lifting and shoring (ata-7)

Does this product fit your model?

View Aircraft Applications
Available to Order
Request a Quote
View full details

Standard Features

  • Manual hand pump with high, medium and low pressure operating positions
  • Heavy duty tow handle and swivel casters with swivel locks for improved towing
  • Hydraulic "thermal" relief valve for added protection and safety in the event of internal fluid expansion due to temperature
  • Secondary cylinder seal for protection against contaminants and to prolong life of primary seal
  • Rain hat (covers jack upper head)
  • Hard chrome plated cylinder bore
  • All unpainted parts are plated to resist corrosion
  • Skydrol resistant paint (safety yellow)
  • Factory proof load @ 150% of rated capacity
  • 3 year standard warranty
  • Shipment on domestic skid

Optional Features

  • Air operated hydraulic pump
  • Load gauge for load indication (reads tons/psig)
  • Adjustable swivel feet with level for leveling jack
  • Hydraulic operated casters provide ease in jack leveling and increased ground clearance for towing
  • Platform mounted operating controls allow one person to position locknut while controlling lifting and lowering operations
  • Ladder/platform
  • Customer specified paint color
  • Export crating
MALABAR

881000B-10

Request a Quote

Specifications

Aircraft Applications

Resources

Specifications

Dimensions

  • Base Radius: 33
  • Closed Height In (Cm): 99 (251)
  • Extended Height In (Cm): 213 (541)
  • Hydraulic Extension In (Cm) (Hydraulic Lift): 82 (208.3)
  • Mechanical Extension In (Cm) (Extension Screw): 32 (81.3)
  • Weight Lb (Kg): 2000 (907)

Performance

  • Capacity Tons: 30

Type/Other

  • Hand Pump/Air Pump: Hand Pump
  • Single (S) Or Multi (M) Stage: S
