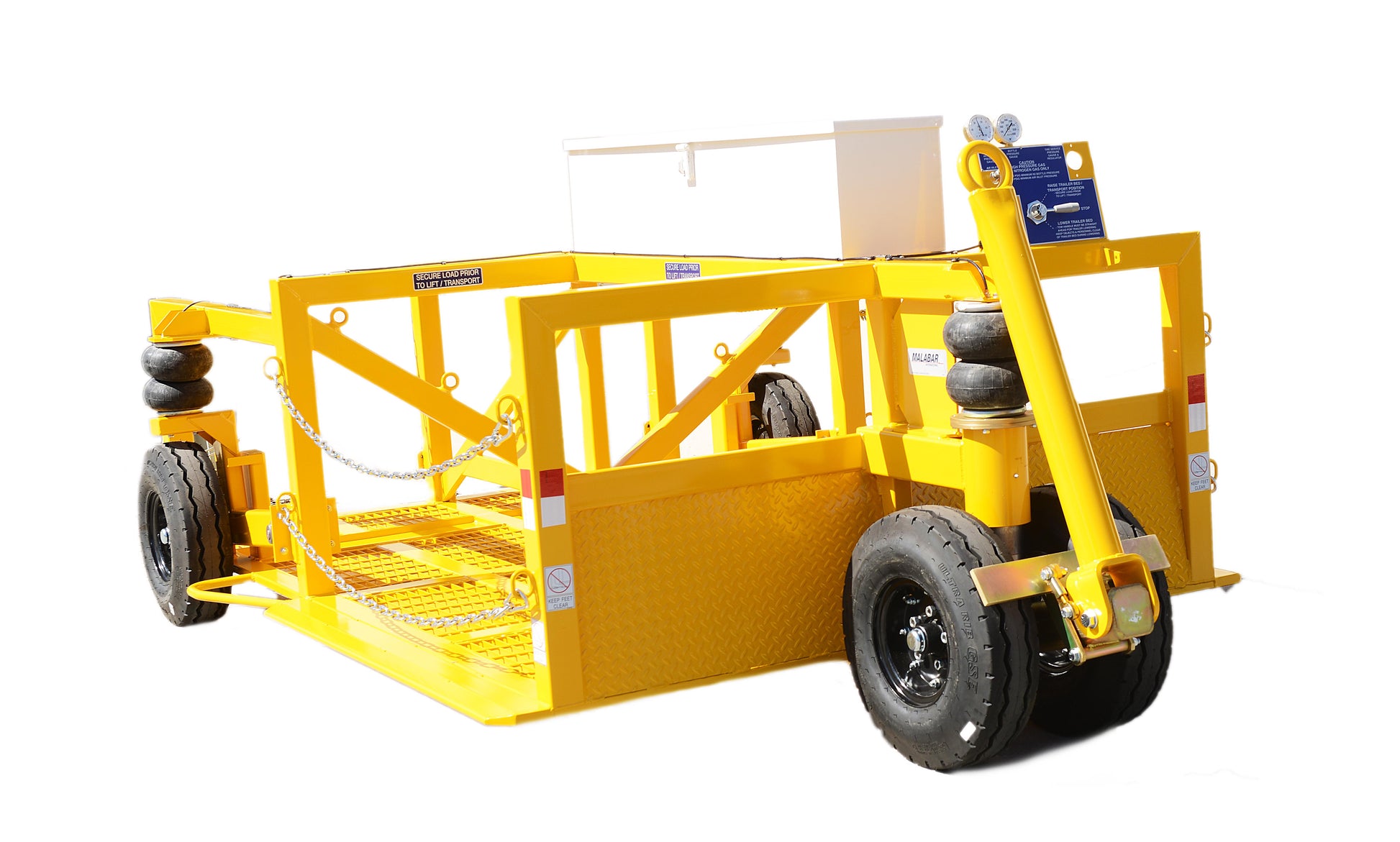

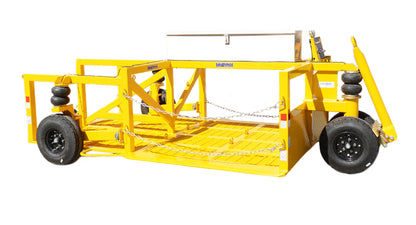

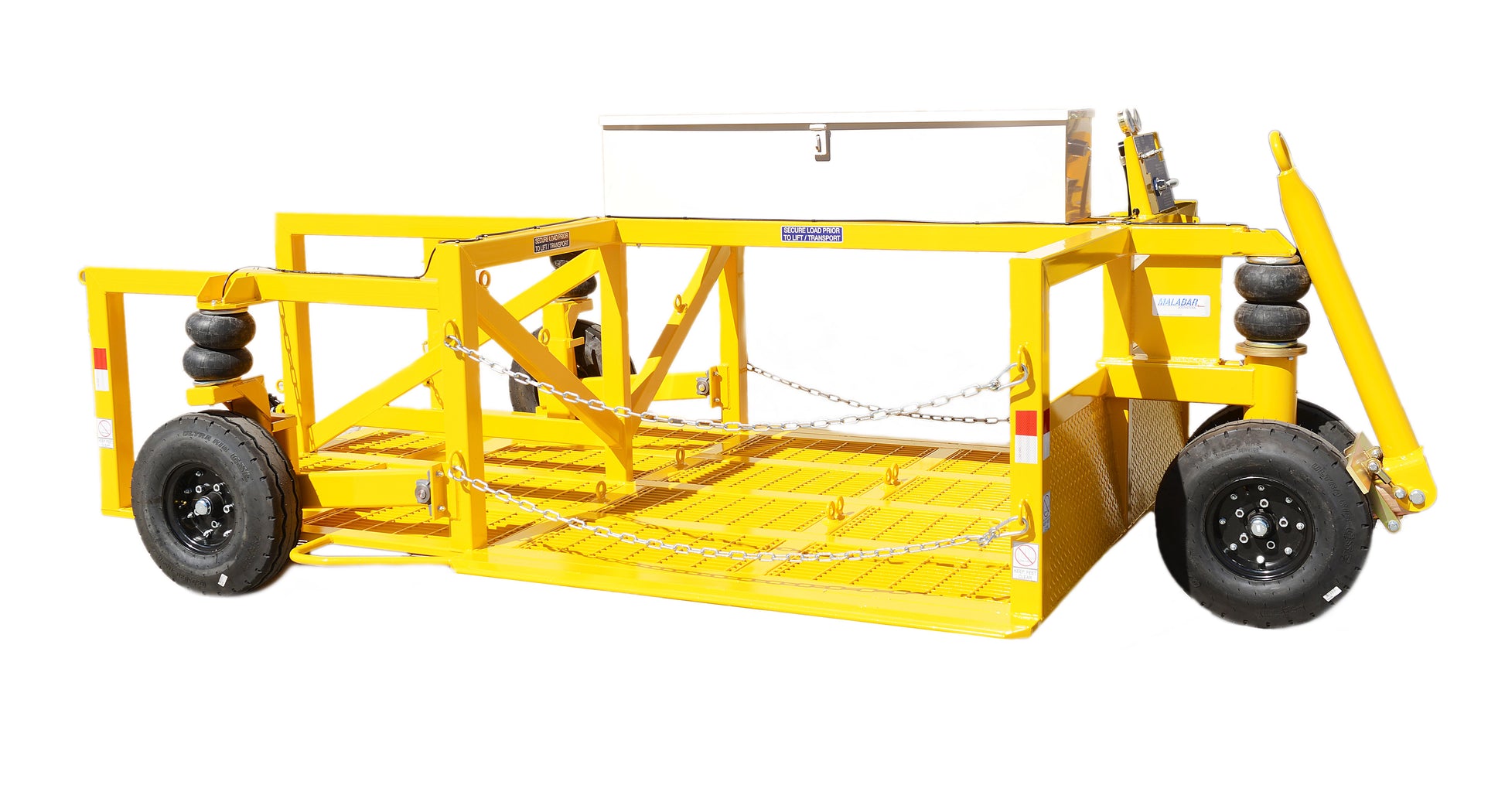

8784B EZ Load Service Trailer

Standard Features

• Self contained lift system to raise and lower trailer bed for easy load and unload operations. Lift system utilizes an on-board nitrogen bottle (2400 psig or 3600 psig) and pneumatic lift actuators.
• Conveniently located control panel with system pressure gauges (to monitor system operation) and safety relief valve
• Single valve control located on control panel raises, lowers or maintains position of trailer bed
• High capacity 6.00 x 9 (21 inch diameter) poly filled tires eliminate flats due to punctures and provide a cushioned ride
• 12 inch x 11 inch x 57 inch long storage box for landing gear hand tools
• Aircraft tire restraint chains and equipment tie-down straps and padeyes
• Auxiliary tow pintle
• Heavy duty tubular steel construction with bar grating to reduce slipping on trailer bed surface
• Rugged large diameter tubular steel tow handle with integral adjustable parking brake and 3 inch lunette eye
• All unpainted parts are plated to resist corrosion
• Skydrol resistant paint (safety yellow)
• 1 year standard warranty
• Shipment on domestic skid

Optional Features

• Two extra tow pintles
• Cover for control panel
• Side chains for jack compartments
• Aircraft tire service regulator and hose assembly
• U.S. DOT standard 3600 psig nitrogen bottle
• Customer specified paint color
• Export crating

Variants

• Currently Viewing 878400B-1 - NONE
• 878400B-10 - PANEL COVER
• 878400B-11 - 2 EXTRA PINTLE HOOKS, PANEL COVER, SIDE CHAINS
• 878400B-12 - 2 EXTRA PINTLE HOOKS, SIDE CHAINS, TIRE SERVICE, NITROGEN BOTTLE
• 878400B-13 - 2 EXTRA PINTLE HOOKS, SIDE CHAINS, TIRE SERVICE WITH HOSE REEL
• 878400B-2 - TIRE SERVICE, NITROGEN BOTTLE
• 878400B-3 - 2 EXTRA PINTLE HOOKS, PANEL COVER, SIDE CHAINS, TIRE SERVICE, NITROGEN BOTTLE
• 878400B-4 - 2 EXTRA PINTLE HOOKS, PANEL COVER, SIDE CHAINS, TIRE SERVICE
• 878400B-7 - PANEL COVER, SIDE CHAINS, TIRE SERVICE
• 878400B-8 - SIDE CHAINS, TIRE SERVICE
• 878400B-9 - PANEL COVER, SIDE CHAINS, NITROGEN BOTTLE
