MALABAR

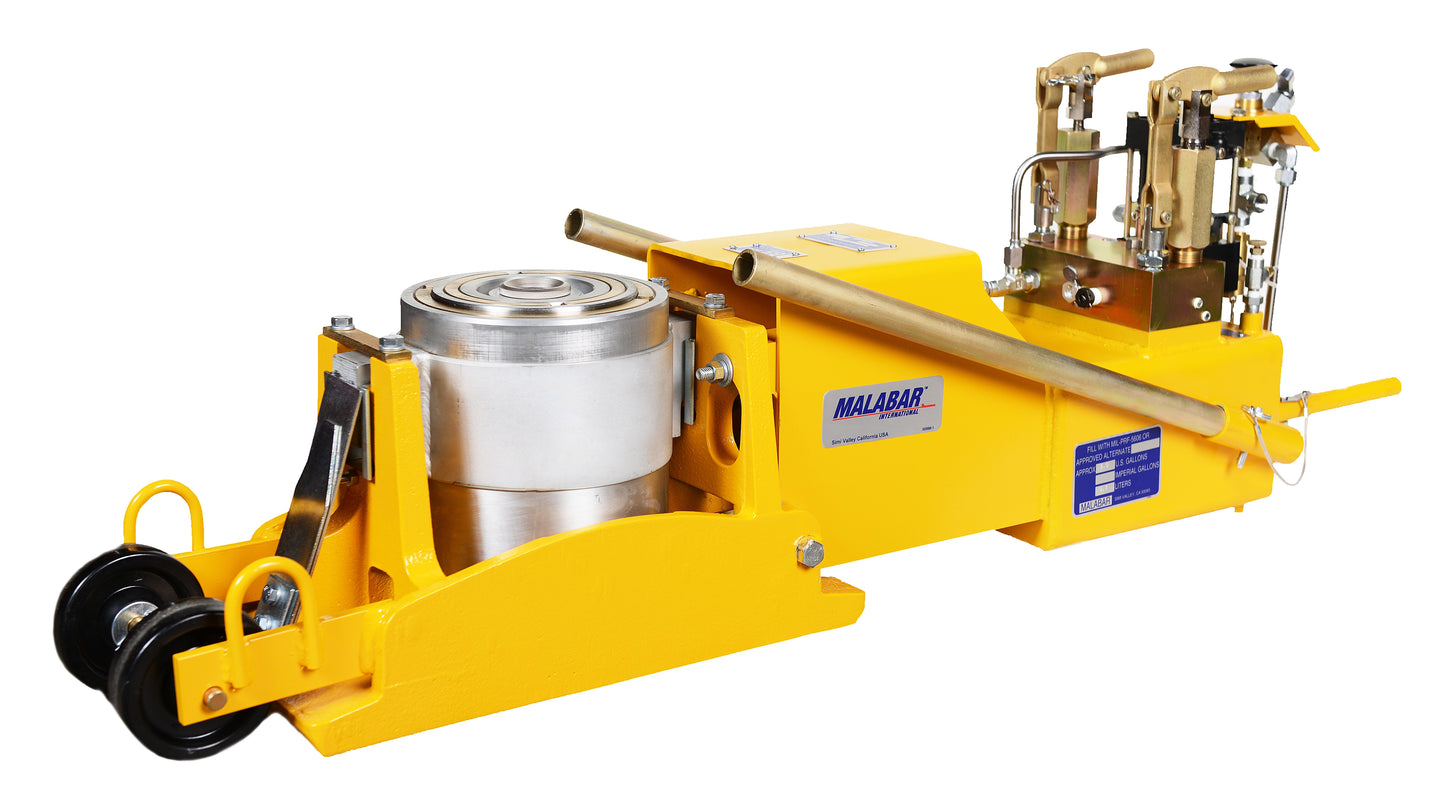

8714 Axle Jack (65 Ton)

871400

Model871400

Lifting and shoring (ata-7)

Does this product fit your model?

View Aircraft Applications
Icons/Info

1 Units In Stock & Ready to Ship

Shipping within 2-3 business days
Request a Quote
Icons/Caret-Right

Separate Adaptor may be required for some aircraft models. View Adaptor

View full details

Standard Features:

Patented floating cylinder assembly allows unit to track arc of landing gear jack point, eliminating excessive side loads on jack and landing gear, thus providing safer operation and extending jack life
Hard chrome plated cylinder and plunger bores
Extension screw and hand pump parts are plated to resist corrosion
Two manual hand pumps (one high pressure, low volume and one low pressure, high volume)
Air operated hydraulic pump for power operation
Skydrol resistant paint (safety yellow)
Hydraulic fuse at the cylinder assembly prevents lowering of load in the event of a hose failure
Factory proof load @ 150% of rated capacity
1 year standard warranty
Fully enclosed shipping container

MALABAR

871400

Request a Quote

Specifications

Performance

  • Capacity Tons: 65

Dimensions

  • Closed Height In (Cm): 10.25 (26)
  • Extended Height In (Cm): 26 (66)
  • Hydraulic Extension In (Cm) (Hydraulic Lift): 11 (27.9)
  • Length In (Cm): 46 (117)
  • Mechanical Extension In (Cm) (Extension Screw): 4.75 (12.1)
  • Weight Lb (Kg): 270 (122)
  • Width In (Cm): 10.625 (27)

Type/Other

  • Hand Pump/Air Pump: Hand Pump
  • Single (S) Or Multi (M) Stage: M
