MALABAR

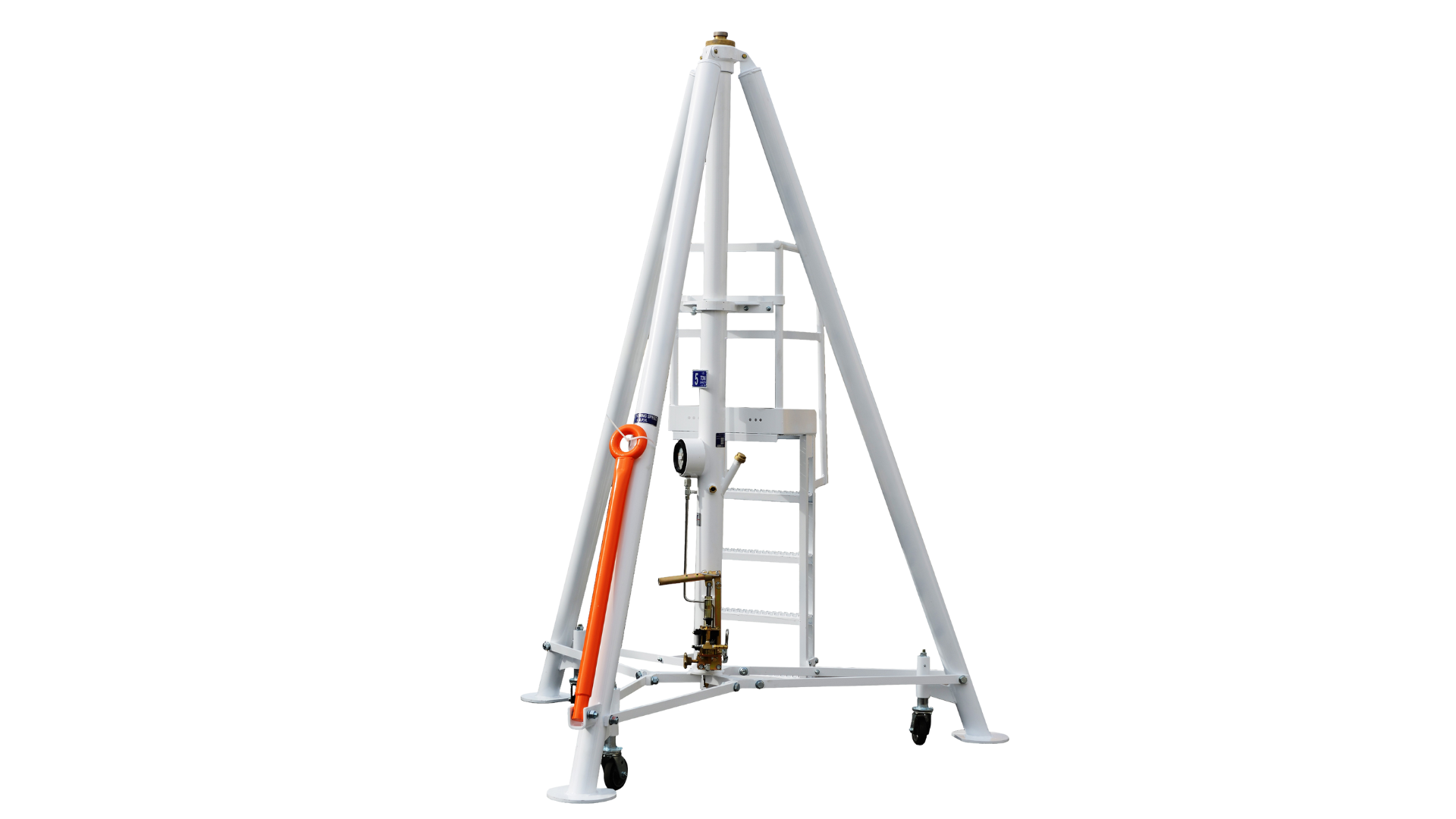

8704 Tripod Jack (5 Ton)

870400-5

Model870400-5

Lifting and shoring (ata-7)

Does this product fit your model?

View Aircraft Applications
Available to Order
Request a Quote
View full details

Standard Features

  • Manual hand pump with high, medium and low pressure operating positions
  • Heavy duty swivel casters
  • Rain hat (covers jack upper head)
  • Hard chrome plated cylinder bore
  • All unpainted parts are plated to resist corrosion
  • Skydrol resistant paint (safety yellow)
  • Factory proof load @ 150% of rated capacity
  • 3 year standard warranty
  • Shipment on domestic skid

Optional Features

  • Air operated hydraulic pump
  • Load gauge for load indication (reads tons/psig)
  • Ladder/platform
  • Customer specified paint color
  • Export crating
MALABAR

870400-5

Request a Quote

Specifications

Performance

  • Capacity Tons: 5

Dimensions

  • Closed Height In (Cm): 118 (300)
  • Extended Height In (Cm): 158 (401)
  • Hydraulic Extension In (Cm) (Hydraulic Lift): 32 (81.3)
  • Mechanical Extension In (Cm) (Extension Screw): 8 (20.3)
  • Weight Lb (Kg): 1000 (454)

Type/Other

  • Hand Pump/Air Pump: Hand Pump
  • Single (S) Or Multi (M) Stage: S
