MALABAR

8688A Aircraft Weigh System

868800A-1

SKU:Model868800A-1

Does this product fit your model?

View Aircraft Applications
Available to Order
View full details

Standard Features

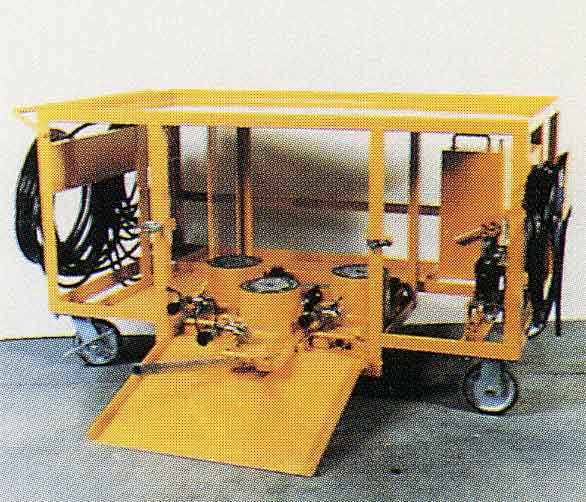

  • Rugged power cart with high capacity air operated hydraulic pump and vacuum retract system
  • Weigh jack loading ramp, 10 ga steel work top and four wheel running gear with friction brakes
  • Weigh jack and electronic weigh kit storage areas
  • Hydraulic reservoir with fluid level sight and manifold with release valve and shutoff valves
  • Two hand pumps (high and low pressure)
  • Conveniently located single valve control for raising and lowering weigh jacks
  • Three hydraulic hoses on hose racks with mating quick disconnect couplings for 50 ton weigh jacks
  • Three 50 ton capacity weight jacks with load cell sockets, extension screws, dual wheels, high pressure shutoff valves and quick disconnect nipples
  • 10 ton capacity weigh jack with load cell socket, extension screw, integral hand pump, relief valve and hydraulic reservoir
  • All weigh jacks include hard chrome plated cylinder and plunger bores, plated extension screws and are proof load tested to 150% of their rated capacity
  • All unpainted parts are plated to resist corrosion
  • Skydrol resistant paint (safety yellow)
  • Shipment on domestic skid

Optional Features

  • Customer specified paint color
  • Export crating

Specifications

Specifications

Fluids

  • Hydraulic Fluid: MIL-PRF-5606 or equivalent
  • Reservoir Capacity (Gal): 5.5
