MALABAR

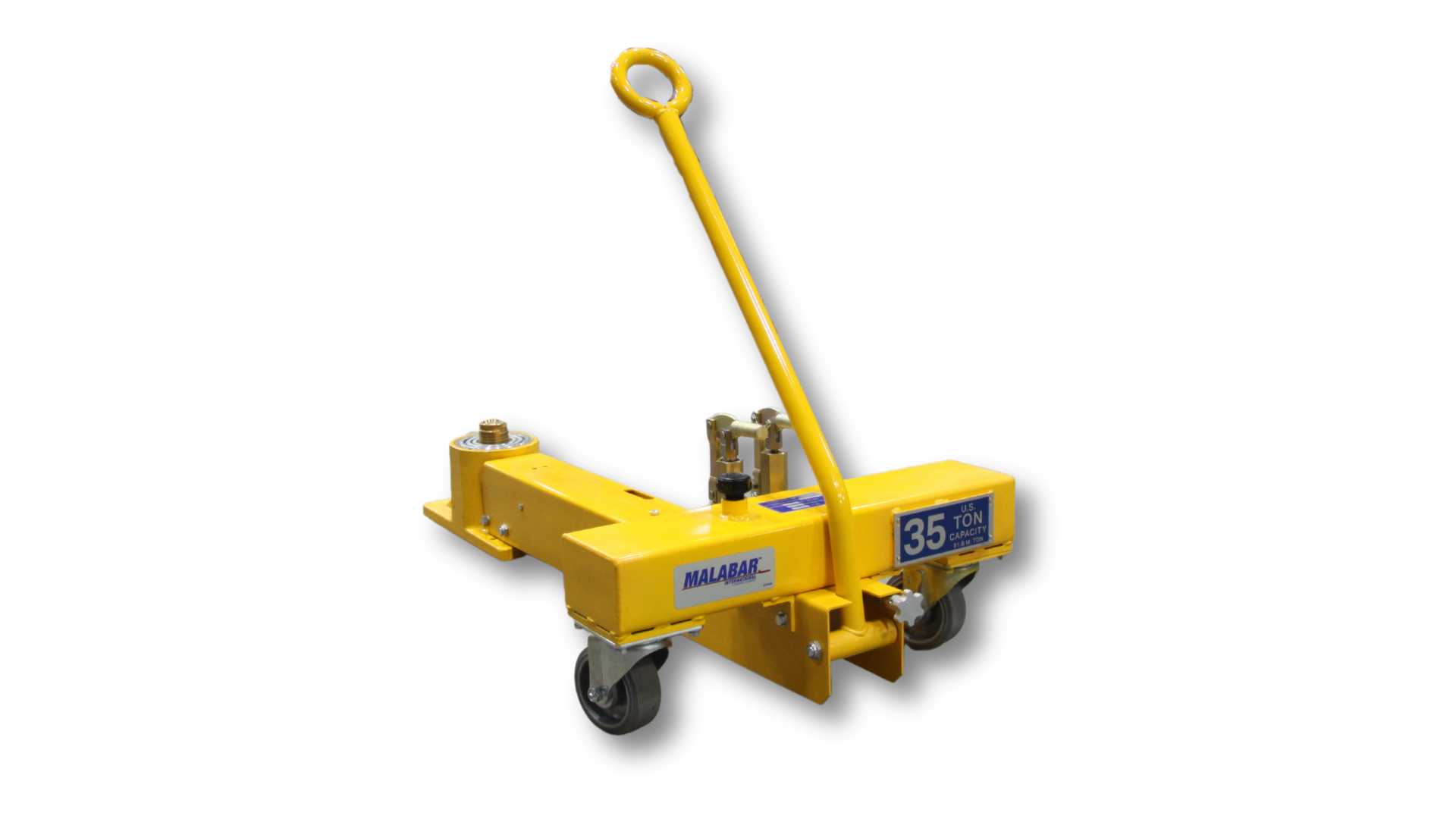

832R Axle Jack (35 Ton)

83200R-1

Model83200R-1

Lifting and shoring (ata-7)

Does this product fit your model?

View Aircraft Applications
Available to Order
Request a Quote
View full details

Standard Features

  • Cylinder assembly includes bronze lower bearings for longer service life
  • Single valve control for simple and easy aircraft raising and lowering
  • 5 inch diameter heavy duty swivel casters and retractable front wheel
  • Retractable spring loaded front wheel provides improved ground clearance for towing
  • Check valve at the cylinder assembly prevents lowering of load in the event of a hose failure
  • Two manual hand pumps (one high pressure, low volume and one low pressure, high volume)
  • Oil filter cap with filtered air vent and dipstick
  • Hard chrome plated cylinder and plunger bores
  • All unpainted parts are plated to resist corrosion
  • Skydrol resistant paint (safety yellow)
  • Factory proof load @ 150% of rated capacity
  • 1 year standard warranty
  • Fully enclosed shipping container with skid

Optional Features

  • Air operated hydraulic pump
  • Air retract (for fast plunger retraction)
  • Load gauge for load indication (reads tons/psig)
  • Rain hat (covers cylinder assembly)
  • Customer specified paint color

Variants

  • Currently Viewing 83200R-1 - NONE
  • 83200R-8 - AIR PUMP, RAIN HAT
MALABAR

83200R-1

Request a Quote

Specifications

Aircraft Applications

Resources

Specifications

Performance

  • Capacity Tons: 35

Dimensions

  • Closed Height In (Cm): 7 (18)
  • Extended Height In (Cm): 22 (56)
  • Hydraulic Extension In (Cm) (Hydraulic Lift): 12 (30.5)
  • Length In (Cm): 54.3125 (138)
  • Mechanical Extension In (Cm) (Extension Screw): 3 (7.6)
  • Weight Lb (Kg): 350 (159)
  • Width In (Cm): 6.875 (17)

Type/Other

  • Hand Pump/Air Pump: Hand Pump
  • Single (S) Or Multi (M) Stage: M
