MALABAR

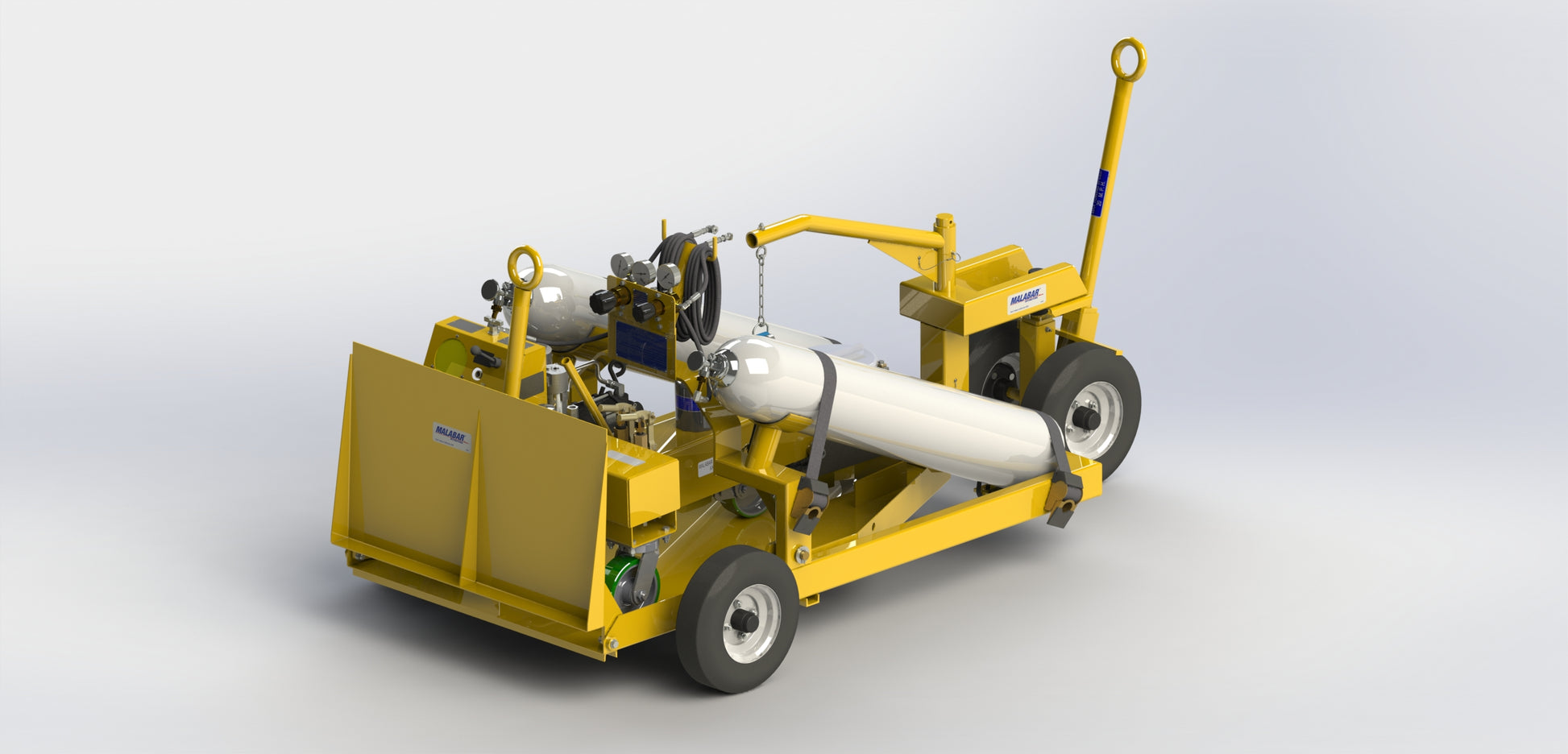

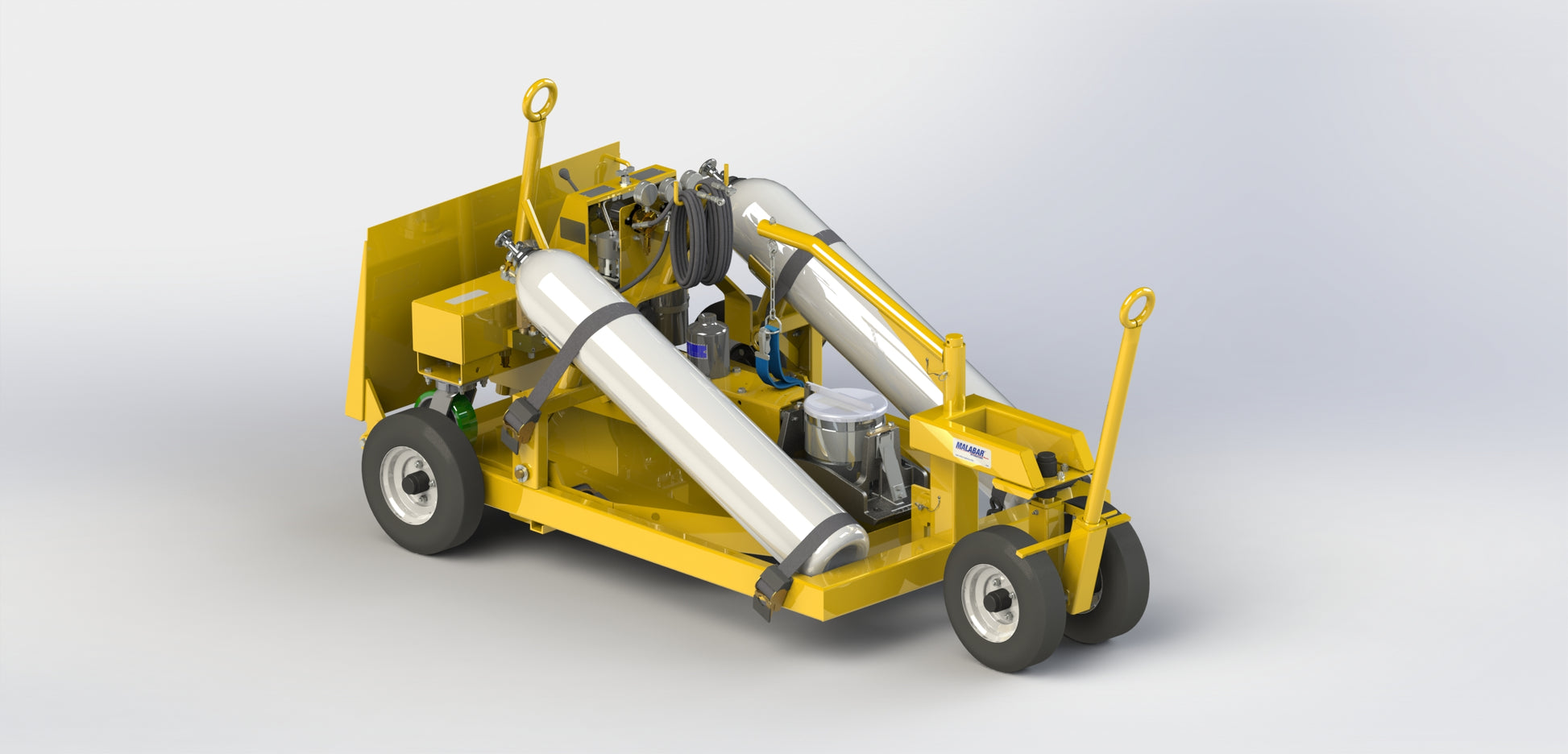

8309 AOG Trailer

830900

Model830900

Landing gear (ata-32)
Available to Order
Request a Quote
View full details

Standard Features

  • Rugged tubular steel frame
  • Bottle and axle jack restraint straps
  • Two regulators with relief valves and gauges
  • High pressure nitrogen hose with safety chuck to prevent filling low pressure tires from high pressure system
  • Low pressure nitrogen hose with Schrader air chuck
  • Towbar with 3 inch ID lunette ring and parking brake
  • Skydrol resistant paint (safety yellow)
  • 1 year standard warranty
  • Shipment on domestic skid

Optional Features

  • 3600 psig nitrogen bottles (furnished empty) with CGA680 valve fittings installed
  • Separate CGA680 bottle valve fittings
  • Separate BS-341-3 bottle valve fittings
  • Separate BS-341-3 bottle valve fittings
  • Separate DIN-477-10 bottle valve fittings
  • Separate CGA580 bottle valve fittings
  • Customer specified paint color
  • Export crating
MALABAR

830900

Request a Quote

Specifications

Specifications

Performance

  • Bottle Capacity: 2
  • High Operating Pressure (Psi): 0-4000
  • Low Operating Pressure (Psi): 0-250

Fuel

  • Gas: Nitrogen

Dimensions

  • Height In (Cm): 43 (109.2) - 48 (121.9)
  • Length In (Cm): 105 (266.7) - 135 (342.9)
  • Weight Lb (Kg): 700 (318) - 840 (382)
  • Width In (Cm): 57 (144.8)
