MALABAR

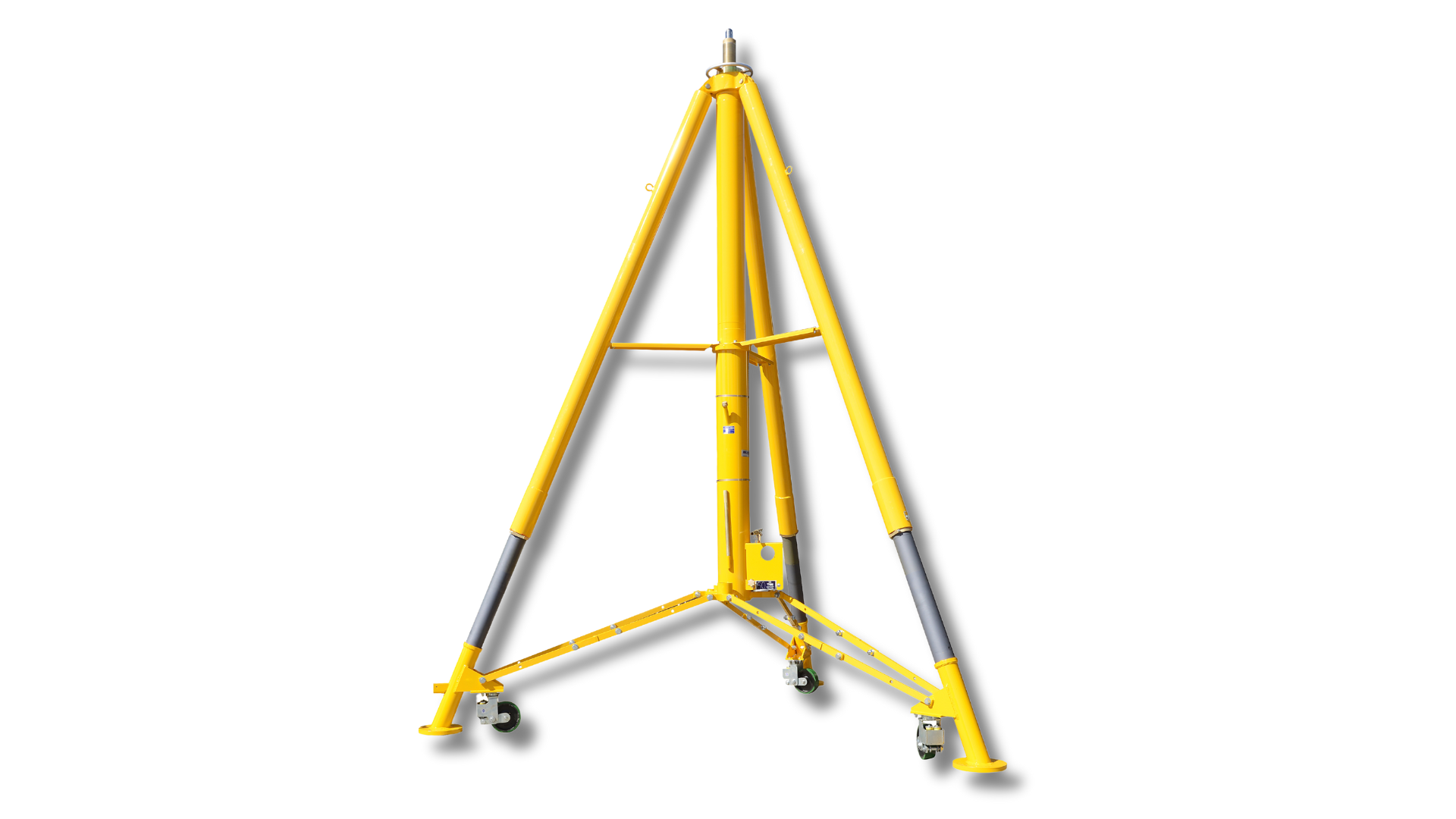

761 Tripod Jack (60 Ton)
76100-5
SKU:Model76100-5
Does this product fit your model?
View Aircraft Applications
Available to Order
Separate Adaptor may be required for some aircraft models. View Adaptor
Standard Features
- Manual hand pump with high, medium and low pressure operating positions
- Heavy duty tow handle and swivel casters with swivel locks for improved towing
- Hydraulic "thermal" relief valve for added protection and safety in the event of internal fluid expansion due to temperature
- Secondary cylinder seal for protection against contaminants and to prolong life of primary seal
- Rain hat (covers jack upper head)
- Hard chrome plated cylinder bore
- All unpainted parts are plated to resist corrosion
- Skydrol resistant paint (safety yellow)
- Factory proof load @ 150% of rated capacity
- 3 year standard warranty
- Shipment on domestic skid
Optional Features
- Air operated hydraulic pump
- Load gauge for load indication (reads tons/psig)
- Adjustable swivel feet with level for leveling jack
- Hydraulic operated casters provide ease in jack leveling and increased ground clearance for towing
- Platform mounted operating controls allow one person to position locknut while controlling lifting and lowering operations
- Ladder/platform
MALABAR
76100-5
Specifications
Dimensions
- Base Radius: 88.5 103.5 w Legs Extended
- Closed Height In (Cm): 186.1 (472.7) 221.6 (562.9) w Legs Extended
- Extended Height In (Cm): 282.1 (716.5) 317.6 (806.7) w Legs Extended
- Hydraulic Extension In (Cm) (Hydraulic Lift): 72 (182.9)
- Mechanical Extension In (Cm) (Extension Screw): 24 (61)
- Weight Lb (Kg): 4400 (1996)
Performance
- Capacity Tons: 60
Type/Other
- Single (S) Or Multi (M) Stage: S
Aircraft Applications
