MALABAR

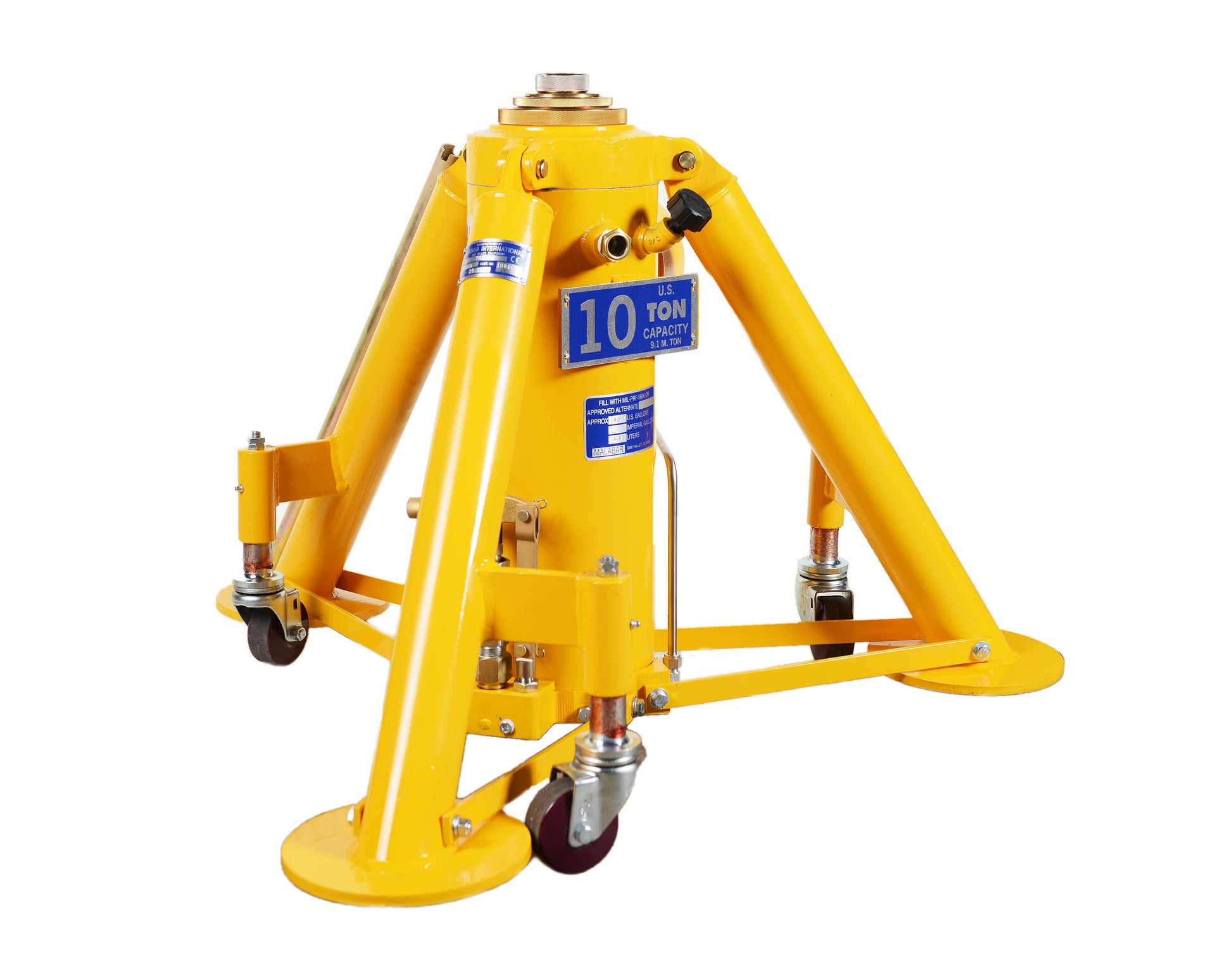

7210B Tripod Jack (10 Ton)

721000B-1

Model721000B-1

Lifting and shoring (ata-7)

Does this product fit your model?

View Aircraft Applications
Available to Order
Request a Quote
View full details

Standard Features

  • Manual hand pump
  • Heavy duty swivel casters
  • Rain hat (covers jack upper head)
  • Hard chrome plated cylinder bore
  • All unpainted parts are plated to resist corrosion
  • Skydrol resistant paint (safety yellow)
  • Factory proof load @ 150% of rated capacity
  • 3 year standard warranty
  • Shipment on domestic skid

Optional Features

  • Air operated hydraulic pump
  • Load gauge for load indication (reads tons/psig)
  • Customer specified paint color
  • Export crating

Variants

  • Currently Viewing 721000B-1 - NONE

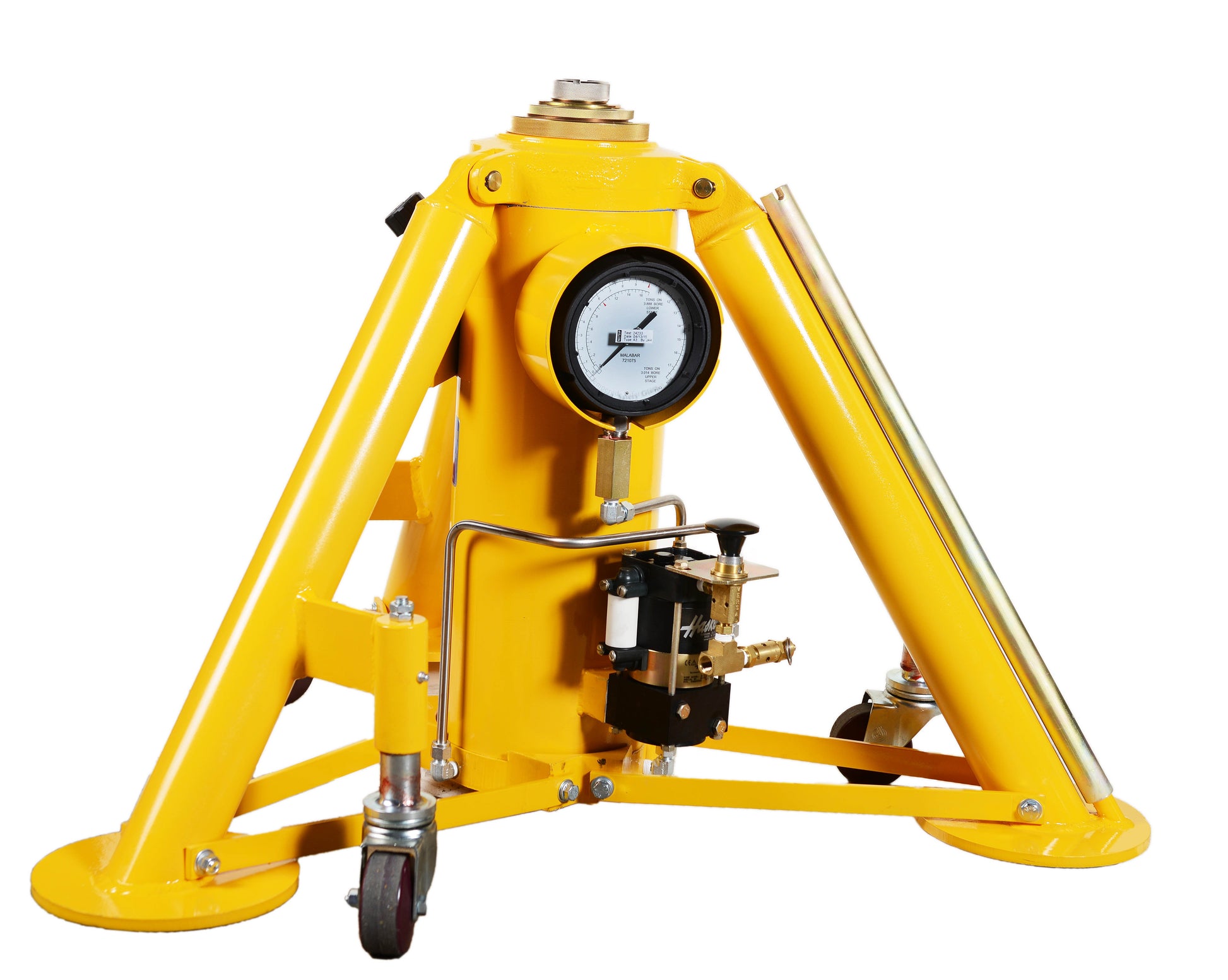

  • 721000B-4 - AIR PUMP, GAUGE
MALABAR

721000B-1

Request a Quote

Specifications

Specifications

Dimensions

  • Base Radius: 10.8125
  • Closed Height In (Cm): 25 (64)
  • Extended Height In (Cm): 67 (170)
  • Hydraulic Extension In (Cm) (Hydraulic Lift): 36 (91.4)
  • Mechanical Extension In (Cm) (Extension Screw): 6 (15.2)
  • Weight Lb (Kg): 275 (125)

Performance

  • Capacity Tons: 10

Type/Other

  • Hand Pump/Air Pump: Hand Pump
  • Single (S) Or Multi (M) Stage: M
