MALABAR

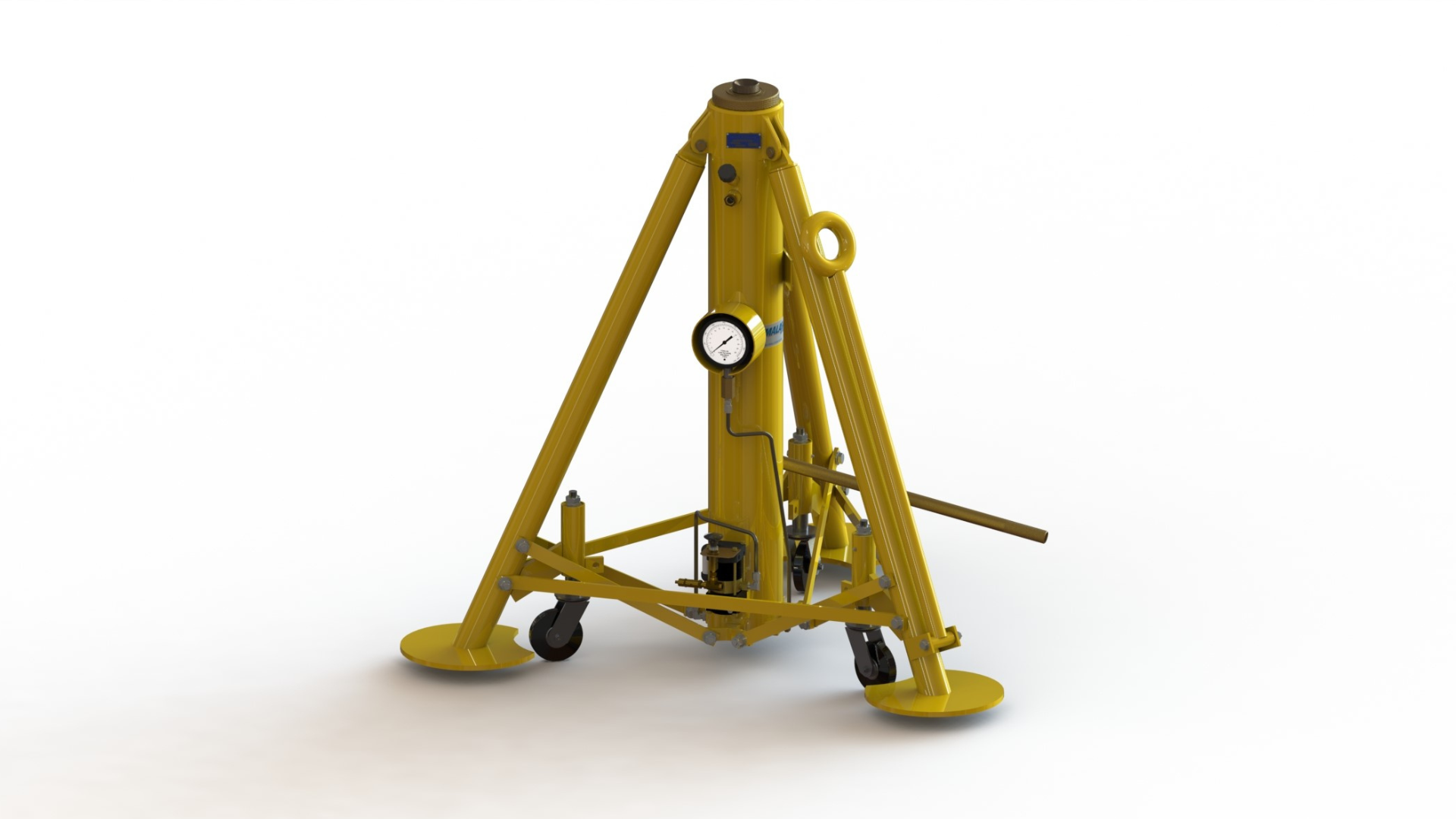

718B Tripod Jack (20 Ton)

71800B-4

Model71800B-4

Lifting and shoring (ata-7)

Does this product fit your model?

View Aircraft Applications
Available to Order
Request a Quote
View full details

Standard Features

  • Manual hand pump with high, medium and low pressure operating positions
  • Heavy duty swivel casters
  • Rain hat (covers jack upper head)
  • Hard chrome plated cylinder bore
  • All unpainted parts are plated to resist corrosion
  • Skydrol resistant paint (safety yellow)
  • Factory proof load @ 150% of rated capacity
  • 3 year standard warranty
  • Shipment on domestic skid

Optional Features

  • Air operated hydraulic pump
  • Load gauge for load indication (reads tons/psig)
  • Tow handle for ease of towing
  • Leg Kit 1 - 54 inch low height
  • Leg Kit 2 - 70 inch low height
  • Leg Kit 3 - 93 inch low height
  • Ladder/Platform Kit (requires Leg Kit 3)
  • Customer specified paint color
  • Export crating

Variants

  • 71800B-2 - AIR PUMP, GAUGE, TOW HANDLE, 54" JACK LOW HEIGHT LEG KIT
  • Currently Viewing 71800B-4 - AIR PUMP, GAUGE, TOW HANDLE, 70" JACK LOW HEIGHT LEG KIT
MALABAR

71800B-4

Request a Quote

Specifications

Dimensions

  • Base Radius: 16.375
  • Closed Height In (Cm): 54 (137)
  • Extended Height In (Cm): 104 (264)
  • Hydraulic Extension In (Cm) (Hydraulic Lift): 40 (101.6)
  • Mechanical Extension In (Cm) (Extension Screw): 10 (25.4)
  • Weight Lb (Kg): 750 (340)

Performance

  • Capacity Tons: 20

Type/Other

  • Hand Pump/Air Pump: Air Pump
  • Single (S) Or Multi (M) Stage: S
