MALABAR

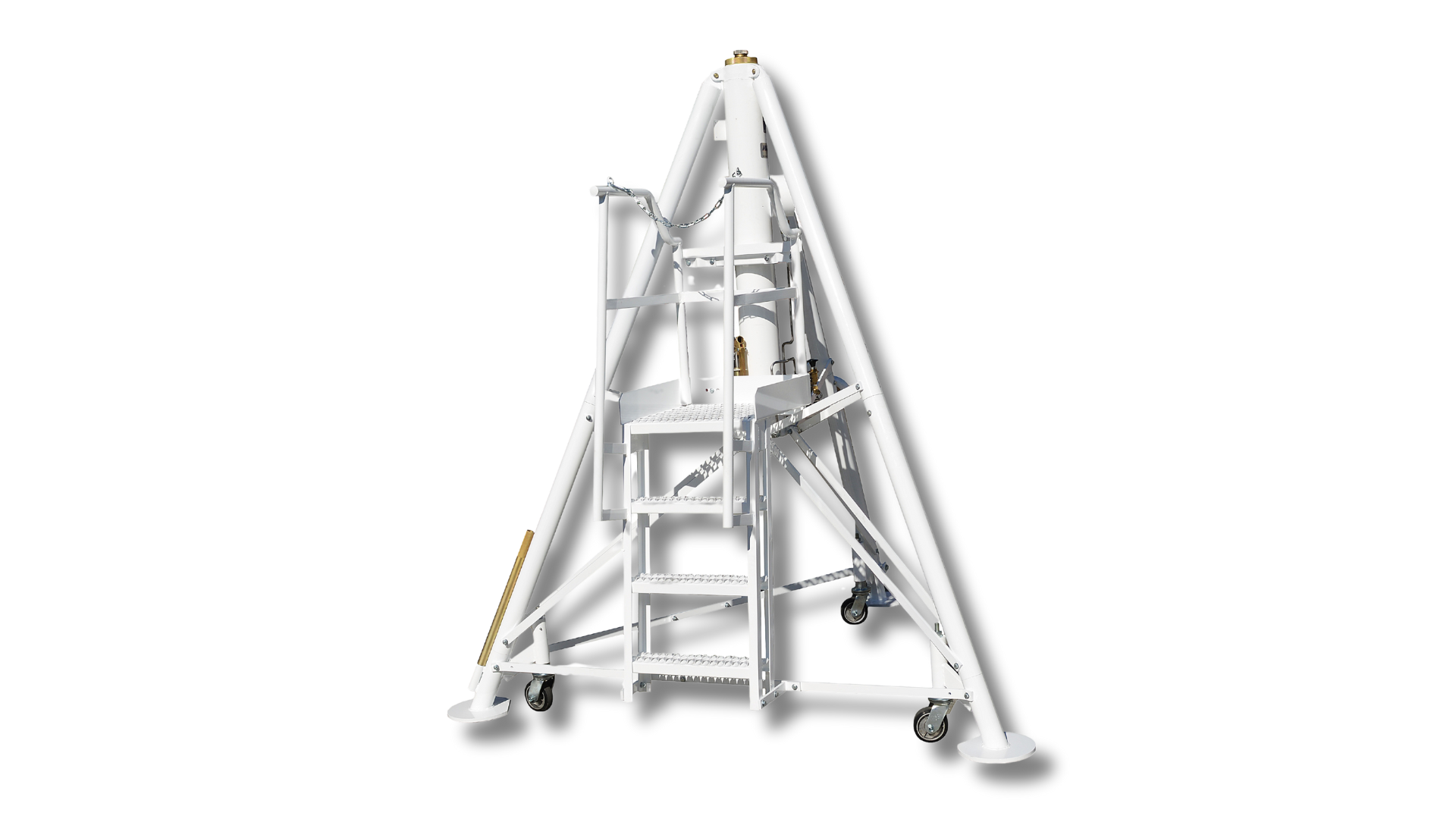

714A Tripod Jack (12 Ton)

71400A-8

Model71400A-8

Lifting and shoring (ata-7)

Does this product fit your model?

View Aircraft Applications
Available to Order
Request a Quote
View full details

Standard Features

  • Manual hand pump with high, medium and low pressure operating positions
  • Heavy duty swivel casters
  • Rain hat (covers jack upper head)
  • Hard chrome plated cylinder bore
  • All unpainted parts are plated to resist corrosion
  • Skydrol resistant paint (safety yellow)
  • Factory proof load @ 150% of rated capacity
  • 3 year standard warranty
  • Shipment on domestic skid

Optional Features

  • Air operated hydraulic pump
  • Load gauge for load indication (reads tons/psig)
  • Tow handle for ease of towing
  • 36 inch leg extension kit
  • Ladder/platform kit (requires 36 inch leg extension kit)
  • Customer specified paint color
  • Export crating

Variants

  • 71400A-14 - AIR PUMP, GAUGE
  • 71400A-7 - AIR PUMP, GAUGE, TOW HANDLE, LADDER, 36" LEG EXTENSION KIT
  • Currently Viewing 71400A-8 - AIR PUMP, GAUGE, TOW HANDLE
MALABAR

71400A-8

Request a Quote

Specifications

Aircraft Applications

Resources

Specifications

Dimensions

  • Base Radius: 25.375
  • Closed Height In (Cm): 96 (244)
  • Extended Height In (Cm): 150 (381)
  • Hydraulic Extension In (Cm) (Hydraulic Lift): 44 (111.8)
  • Mechanical Extension In (Cm) (Extension Screw): 10 (25.4)
  • Weight Lb (Kg): 725 (329)

Performance

  • Capacity Tons: 12

Type/Other

  • Hand Pump/Air Pump: Air Pump
  • Single (S) Or Multi (M) Stage: S
