TRONAIR

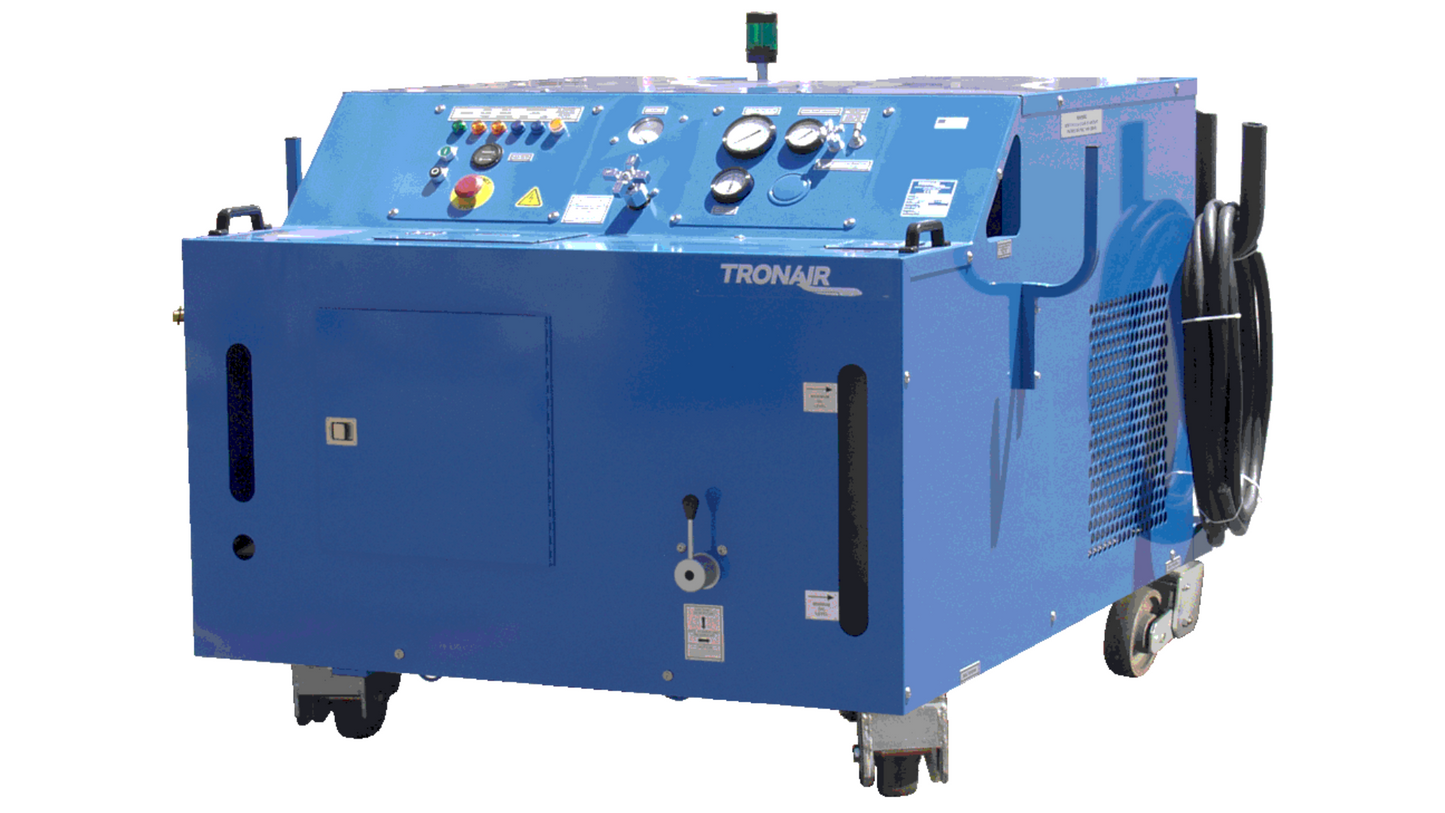

Hydraulic Power Unit, 57 Series

Name: 5731
Brand: TRONAIR
SKU: 5731
Price: 100000.0 USD
Availability: InStock

5731

SKU:Model5731

Hydraulic power (ata-29)

Does this product fit your model?

View Aircraft Applications

Available to Order

Request a Quote

Separate Adaptor may be required for some aircraft models. View Adaptor

View full details

Standard Features

Adjustable working pressure
3 phase, electric motor available in 6 voltages (50 or 60 Hz)
Adjustable pressure compensated, variable volume, piston pump
70 gal (265 l) stainless steel reservoir with desiccant air filtration canister
Large oil cooler with 3 phase electric fan (38,000 btu/hr cooling capacity)
High efficiency, non-bypassing pressure filter with 2-micron absolute, Microglass III element (Beta rating > 200 based on ISO 4572)
Large capacity return filter with 5 micron absolute, Microglass III element (Beta rating > 300 based on ISO 4572)
Easy access fluid sampling valve (meets ANSI T2.24.1-1991)
2-48 gpm (8-180 lpm) dual scale flow meter
Dual scale pressure gauge
Standard 25 ft (7.62 m) pressure and return hoses
Standard 50 ft (15.24 m) input power cord without input plug
High Fluid temperature (>160° F) shut off switch with LED indicator light
30-240° F (0-115° C) dual scale pyrometer
Hourmeter
Finish: Durable Powder Coat Tronair Blue
Length: 82 in (208 cm)
89 in (226 cm) with option N - Towing Trailer Package
Width: 63.75 in (162 cm)
70.75 in (180 cm) with option C - Split System
Height: 62 in (158 cm)
70.5 in (180 cm) with option N - Towing Trailer Package

Specifications

Fluids

Fluid: Skydrol or Hyjet

Engine/Motor Specs

Motor Hp (Kw): 75 (56)

Performance

Pump Flow (50 Hz) Gpm (Lpm): 28 (107)
Pump Flow (60 Hz) Gpm (Lpm): 34 (129)
Pressure Gauge Psi (Bar): 6,000 (410)
Pressure Range Psi (Bar): 250-4,000 (17.2-276)

Hoses

Pressure Hose Size: 16 (1)
Return Hose Size: 24 (1 1/2)

Dimensions

Weight Lb (Kg): 3,500 (1,588)

Accessories and Spares

HC-1763 — Desiccant Filter (ANNUALLY)
HC-2144 — Pressure Gauge (ANNUALLY)
HC-2146 — Pressure Gauge (ANNUALLY)
K-3614 — KIT, REPL FILTER ELEMENT (ANNUALLY)
K-3616 — Kit, Filter Element (ANNUALLY)
K-3752 — Replacement Filter Element Kit (ANNUALLY)
TF-1040-05*300 — Hose (AS REQUIRED)
TF-1041-04*300 — Hose (AS REQUIRED)
TF-1041-05*180 — ASSEMBLY, HOSE (#4 PE) (AS REQUIRED)
5731-CQ — (New HPU) Hydraulic Coupling Kit (Comac - C909 (ARJ21))
5731-C — Split System (Embraer - E170 (ERJ-170))
5731-GM — (NEW HPU) Hydraulic Coupling Kit (coupling for Aircraft only) (Embraer - E170 (ERJ-170))
5731-KA — (NEW HPU) Hydraulic Coupling Kit (includes couplings for Aircraft & RAT) (Embraer - E170 (ERJ-170))
5731-C — Split System (Embraer - E175 (ERJ-175))
5731-GM — (NEW HPU) Hydraulic Coupling Kit (coupling for Aircraft only) (Embraer - E175 (ERJ-175))
5731-KA — (NEW HPU) Hydraulic Coupling Kit (includes couplings for Aircraft & RAT) (Embraer - E175 (ERJ-175))
5731-C — Split System (Embraer - E175-E2)
5731-GM — (NEW HPU) Hydraulic Coupling Kit (coupling for Aircraft only) (Embraer - E175-E2)
5731-KA — (NEW HPU) Hydraulic Coupling Kit (includes couplings for Aircraft & RAT) (Embraer - E175-E2)
5731-C — Split System (Embraer - E190 (ERJ-190))
5731-GM — (NEW HPU) Hydraulic Coupling Kit (coupling for Aircraft only) (Embraer - E190 (ERJ-190))
5731-KA — (NEW HPU) Hydraulic Coupling Kit (includes couplings for Aircraft & RAT) (Embraer - E190 (ERJ-190))
5731-C — Split System (Embraer - E190-E2)
5731-GM — (NEW HPU) Hydraulic Coupling Kit (coupling for Aircraft only) (Embraer - E190-E2)
5731-KA — (NEW HPU) Hydraulic Coupling Kit (includes couplings for Aircraft & RAT) (Embraer - E190-E2)
5731-C — Split System (Embraer - E195 (ERJ-195))
5731-GM — (NEW HPU) Hydraulic Coupling Kit (coupling for Aircraft only) (Embraer - E195 (ERJ-195))
5731-KA — (NEW HPU) Hydraulic Coupling Kit (includes couplings for Aircraft & RAT) (Embraer - E195 (ERJ-195))
5731-C — Split System (Embraer - E195-E2)
5731-GM — (NEW HPU) Hydraulic Coupling Kit (coupling for Aircraft only) (Embraer - E195-E2)
5731-KA — (NEW HPU) Hydraulic Coupling Kit (includes couplings for Aircraft & RAT) (Embraer - E195-E2)
5731-C — Split System (Embraer - Lineage 1000)
5731-GM — (NEW HPU) Hydraulic Coupling Kit (coupling for Aircraft only) (Embraer - Lineage 1000)
5731-KA — (NEW HPU) Hydraulic Coupling Kit (includes couplings for Aircraft & RAT) (Embraer - Lineage 1000)
5731-BN — (New HPU) Hydraulic Coupling Kit (Boeing - 727-200)
5731-BC — (New HPU) Hydraulic Coupling Kit (Boeing - 737-BBJ)
5731-BC — Required, (New HPU) Hydraulic Coupling Kit (Boeing - 737-BBJ2)
5731-BC — (New HPU) Hydraulic Coupling Kit (Boeing - 737 MAX)
5731-BC — (New HPU) Hydraulic Coupling Kit (Boeing - 737-100)
5731-BC — (New HPU) Hydraulic Coupling Kit (Boeing - 737-200)
5731-BC — (New HPU) Hydraulic Coupling Kit (Boeing - 737-300)
5731-BC — (New HPU) Hydraulic Coupling Kit (Boeing - 737-400)
5731-BC — (New HPU) Hydraulic Coupling Kit (Boeing - 737-500)
5731-BC — (New HPU) Hydraulic Coupling Kit (Boeing - 737-600)
5731-BC — (New HPU) Hydraulic Coupling Kit (Boeing - 737-700)
5731-BC — (New HPU) Hydraulic Coupling Kit (Boeing - 737-800)
5731-BC — (New HPU) Hydraulic Coupling Kit (Boeing - 737-900)
