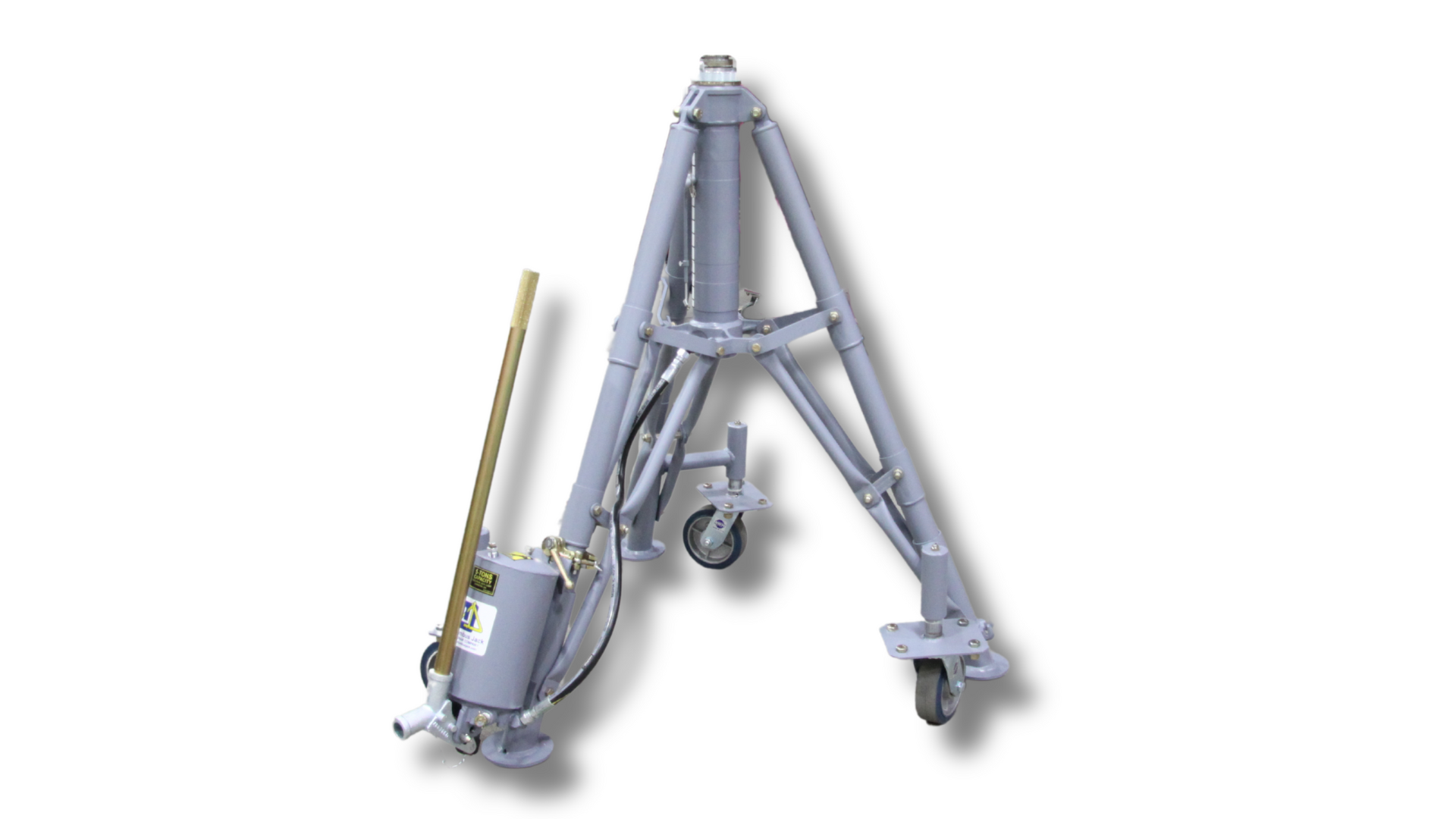

Tripod Jack (5 Ton)

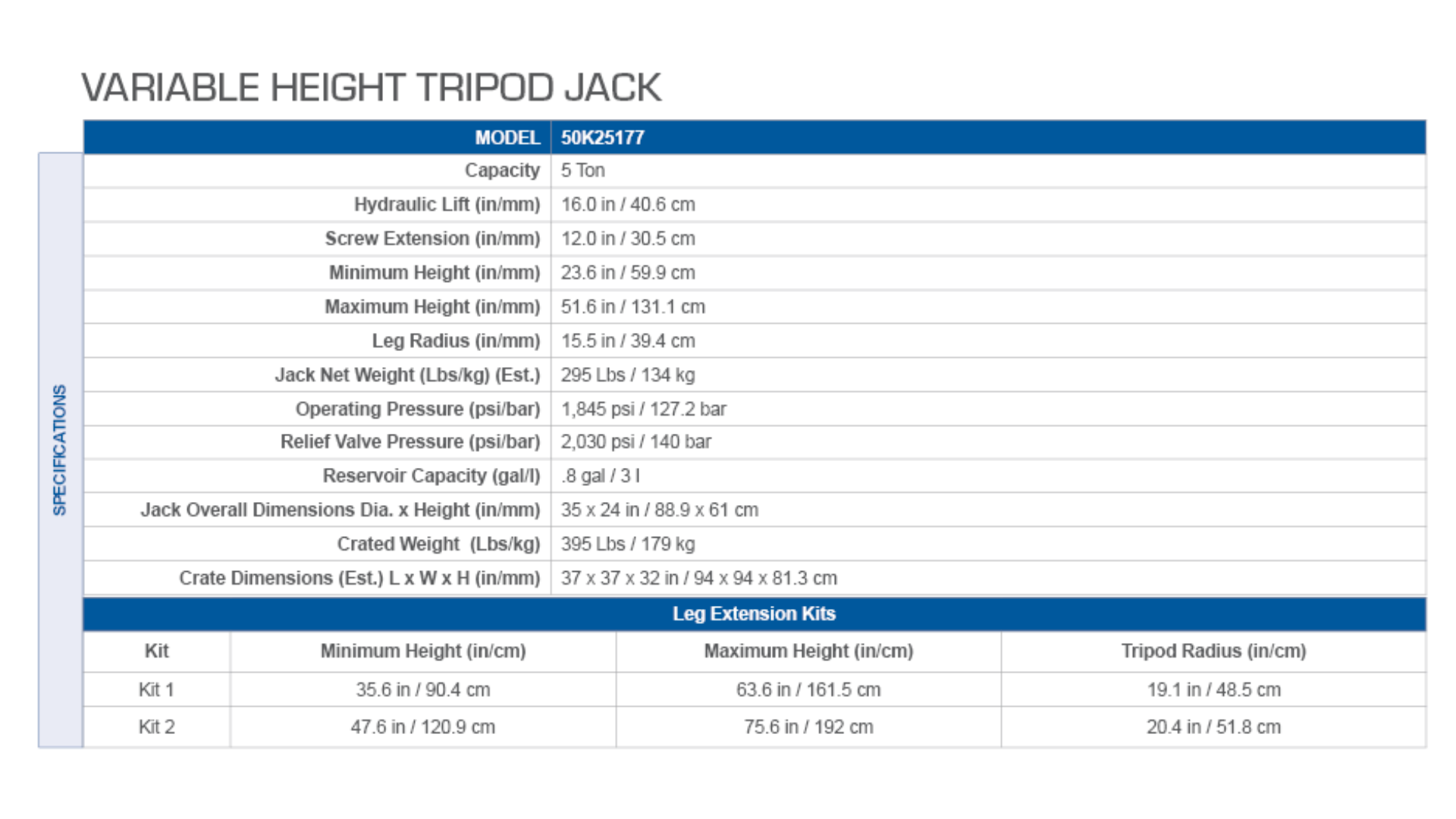

Dimensions

• Base Radius: 20.4
• Closed Height In (Cm): 47.6 (121)
• Extended Height In (Cm): 75.56 (192)
• Hydraulic Extension In (Cm) (Hydraulic Lift): 16 (40.6)
• Mechanical Extension In (Cm) (Extension Screw): 12 (30.5)
• Weight Lb (Kg): 295 (134)

Performance

• Capacity Tons: 5

Type/Other

• Hand Pump/Air Pump: Hand Pump
• Single (S) Or Multi (M) Stage: S

• 50K25177 Sell Sheet
• Current Operation and Service Manual
  Please Note, this is the latest version of the OSM. If you need an OSM specific to your model and serial number, please use our OSM Search Tool here.
