COLUMBUS JACK
Tripod Jack (10 Ton) With No Extension
50J25178/-30
SKU:Model50J25178/-30
Does this product fit your model?
View Aircraft Applications
Available to Order
Standard Features
- For more details on the leg extension kits, please see Photo 2 above and the resources listed below.
Variants
- 50J25178 - ALL 4 LEG EXTENSION KITS
- 50J25178/-10E1 - LEG EXTENSION KIT 1
- 50J25178/-10E2 - LEG EXTENSION KIT 2
- 50J25178/-10E3 - LEG EXTENSION KIT 3
COLUMBUS JACK
50J25178/-30

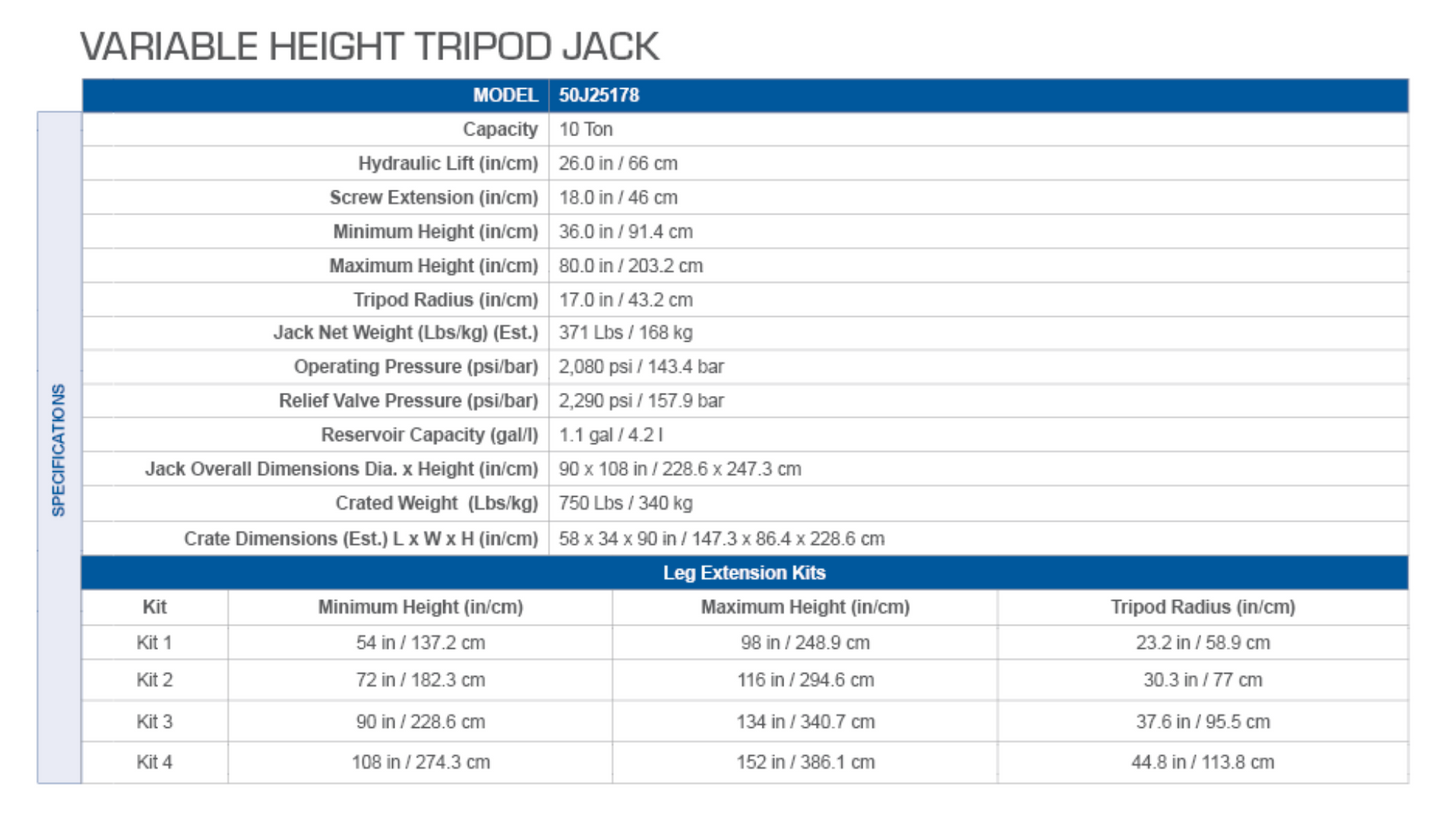

Specifications
Dimensions
- Base Radius: 17
- Closed Height In (Cm): 36 (91)
- Extended Height In (Cm): 80 (203)
- Hydraulic Extension In (Cm) (Hydraulic Lift): 26
- Mechanical Extension In (Cm) (Extension Screw): 18
- Weight Lb (Kg): 320 (145)
Performance
- Capacity Tons: 10
Type/Other
- Hand Pump/Air Pump: Hand Pump
- Single (S) Or Multi (M) Stage: S
Resources
- 50J25178 Tripod Jack Specification Sheet
-
Current Operation and Service Manual
Please Note, this is the latest version of the OSM. If you need an OSM specific to your model and serial number, please use our OSM Search Tool here.
