TRONAIR

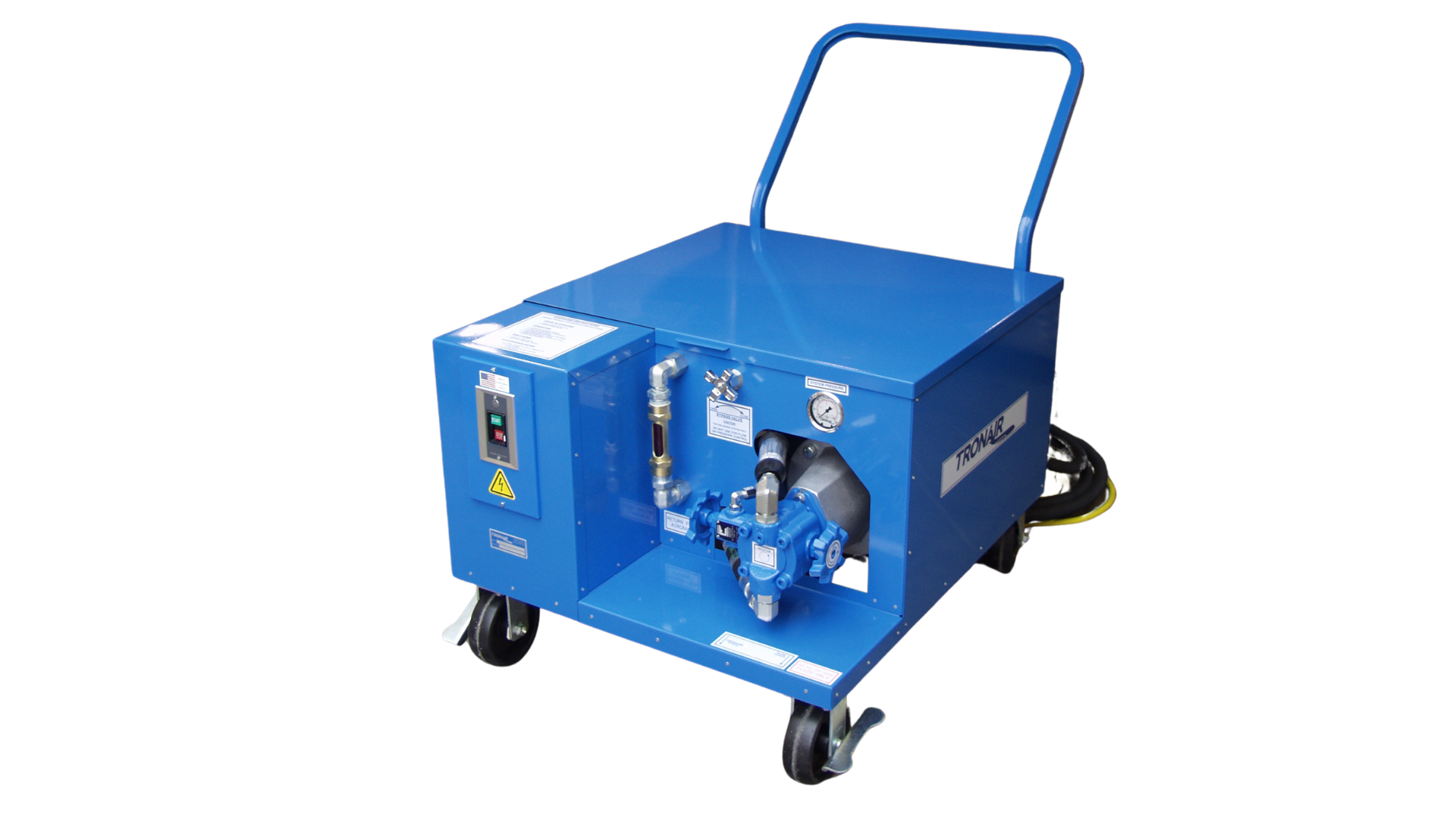

Hydraulic Power Unit, 50 Series

5010

Model5010

Hydraulic power (ata-29)

Does this product fit your model?

View Aircraft Applications
Available to Order
Request a Quote
Icons/Caret-Right

Separate Adaptor may be required for some aircraft models. View Adaptor

View full details

Standard Features:

6 gpm (22.7 lpm) pressure compensated pump with adjustable flow and pressure controls
Certified pressure gauge
0-10 gpm (0-38 lpm) dual scale flowmeter
2.4 gpm (9 lpm) flow at rated pressure
Bypass valve
Reservoir selector valve
2 micron absolute non-bypass pressure filter (Beta rating > 2,000 based on ISO 4572)
#8 pressure and #16 return hoses (PE), or #12 return hose (MB), 15 ft (4.5 m) long with 37° JIC swivel connectors
Standard 50 ft. (15.2 m) input power cord
Heavy duty 3 phase motor
Heavy duty starter with overload protection and external manual reset button
Sturdy welded steel frame with 16 gauge sheet metal cabinet
Fluid sample valve
Operating instruction located on instrument panel
Two (2) fixed and two (2) swivel casters for easy manuvering
Finish: Durable Powder Coat Tronair Blue
50 Series Only:
Corrosion resistant 10 gal (37.9 l) reservoir
Removable lid for easy access
Push handle acts as hose hanger
Available Options: A, C, D, F, K, P, T, W, X
H-1338 - Protective Cover
K-3590 - Unit self servicing kit (MB)
K-3591 - Unit self servicing kit (PE)

TRONAIR

5010

Request a Quote

Specifications

Fluids

  • Fluid: MIL-PRF-5606

Dimensions

  • Height In (Cm): 37 (94)
  • Length In (Cm): 48 (122)
  • Weight Lb (Kg): 341 (155)
  • Width In (Cm): 30 (76)

Performance

  • Max Pressure Psi (Bar): 1,750 (121)
  • Pressure Gauge Psi (Bar): 3,000 (207)

Engine/Motor Specs

  • Motor Hp (Kw): 3 (2.2)

Replacement Parts

  • Gulfstream - Aero Commander
    • 5010-AR - (New HPU) Hydraulic Coupling Kit
  • Piper - Aerostar
    • 5010-AR - (New HPU) Hydraulic Coupling Kit
  • Piper - Aztec
    • 5010-AR - (New HPU) Hydraulic Coupling Kit
  • Beechcraft - Beechjet 400A
    • 5010-AA - (New HPU) Hydraulic Coupling Kit
  • Piper - Chieftan
    • 5010-AR - (New HPU) Hydraulic Coupling Kit
  • Piper - Cheyenne II
    • 5010-AR - (New HPU) Hydraulic Coupling Kit
  • Piper - Cheyenne III
    • 5010-AR - (New HPU) Hydraulic Coupling Kit
  • Bell - CH-139
    • 5010-AB - (New HPU) Hydraulic Coupling Kit
  • Piper - Comanche
    • 5010-AR - (New HPU) Hydraulic Coupling Kit
  • Textron (Cessna) - Caravan 406
    • 5010-DB - (New HPU) Hydraulic Coupling Kit
  • Piper - Navajo
    • 5010-AR - (New HPU) Hydraulic Coupling Kit
  • Bell - OH-58
    • 5010-AB - (New HPU) Hydraulic Coupling Kit
  • Piper - Seneca
    • 5010-AR - (New HPU) Hydraulic Coupling Kit
  • Gulfstream - Turbo Commander
    • 5010-AR - (New HPU) Hydraulic Coupling Kit
  • Bell - TH-67
    • 5010-AB - (New HPU) Hydraulic Coupling Kit
  • Bell - UH-1
    • 5010-AB - (New HPU) Hydraulic Coupling Kit
  • Bell - UH-1H
    • 5010-AB - (New HPU) Hydraulic Coupling Kit
  • Bell - 204
    • 5010-AB - (New HPU) Hydraulic Coupling Kit
  • Bell - 206B3
    • CALL TRONAIR - (New HPU) Hydraulic Coupling Kit
  • Bell - 206LT
    • 5010-AB - (New HPU) Hydraulic Coupling Kit
  • Bell - 206L4
    • 5010-AB - (New HPU) Hydraulic Coupling Kit
  • Bell - 212
    • 5010-AB - (New HPU) Hydraulic Coupling Kit
  • Bell - 222
    • 5010-AB - (New HPU) Hydraulic Coupling Kit
  • Bell - 230
    • 5010-AB - (New) Hydraulic Coupling Kit
  • Textron (Cessna) - 310
    • 5010-AR - (New HPU), Hydraulic Coupling Kit
  • Textron (Cessna) - 320
    • 5010-AR - (New HPU), Hydraulic Coupling Kit
  • Textron (Cessna) - 337 Skymaster
    • 5010-AR - Required (New HPU), Hydraulic Coupling Kit
  • Textron (Cessna) - 401
    • 5010-AR - (New HPU) Hydraulic Coupling Kit
  • Textron (Cessna) - 402
    • 5010-AR - (New HPU) Hydraulic Coupling Kit
  • Bell - 407
    • 5010-AB - (New HPU) Hydraulic Coupling Kit
  • Bell - 407GX
    • 5010-AB - (New HPU) Hydraulic Coupling Kit
  • Textron (Cessna) - 411
    • 5010-AR - (New HPU), Hydraulic Coupling Kit
  • Bell - 412
    • 5010-AB - (New) Hydraulic Coupling Kit
  • Textron (Cessna) - 414
    • 5010-AR - (New HPU) Hydraulic Coupling Kit
  • Textron (Cessna) - 414A
    • 5010-AR - (New HPU) Hydraulic Coupling Kit
  • Textron (Cessna) - 421
    • 5010-AR - (New HPU) Hydraulic Coupling Kit
  • Bell - 427
    • 5010-C - Split System Option
    • 5010-EB - (New HPU), Hydraulic Coupling Kit
  • Bell - 430
    • 5010-AB - (New HPU) Hydraulic Coupling Kit
