COLUMBUS JACK

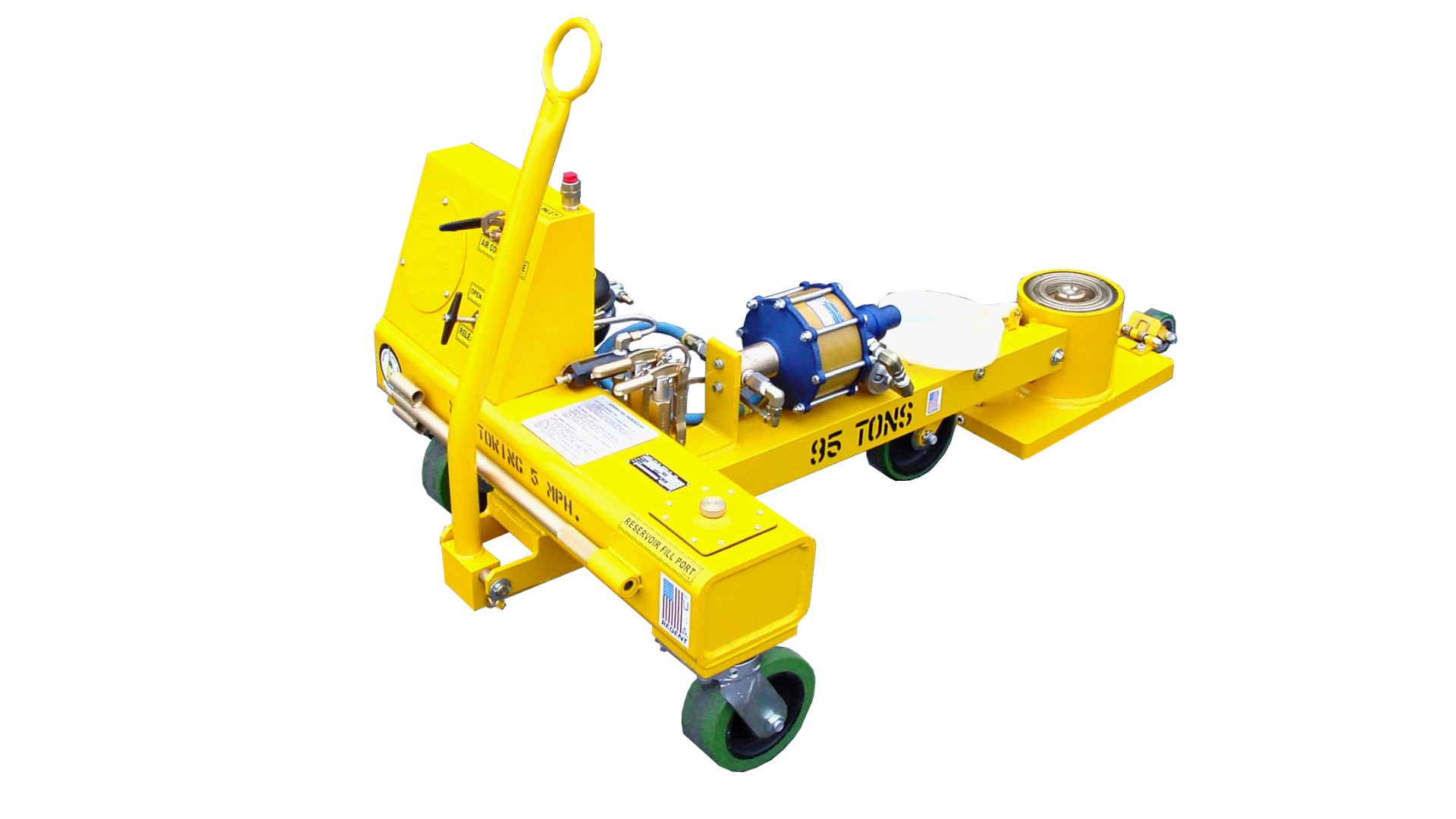

Axle Jack (95 Ton) Model 9694-010

2295-10PR

Model2295-10PR

National Stocking Number: 4920-01-633-4985

Lifting and shoring (ata-7)

Does this product fit your model?

View Aircraft Applications
Available to Order
Request a Quote
View full details

Standard Features

  • 95 Ton Power RetractTM Cylinder Assembly with Spring Loaded Trailing Caster for support during towing
  • Single Valve Control for ease of operation
  • Dual Manual Hand Pumps (One High Pressure, Low Volume and one Low Pressure, High Volume)
  • Air Powered Pumping Unit
  • Nitrogen Charged Accumulator is used for Power Cylinder Ram Retraction
  • Double Pump Handle Assembly
  • Hydraulic Restrictor Valve slows and controls cylinder descent in the event of a hose failure
  • 8" diameter Poly Tread Swivel Casters
  • Vented Filler Cap with Dip Stick
  • Hard Chrome Plated minimum .001 on a side of Cylinder and Ram Bores
  • Protective Cylinder Rain Cover
  • Skydrol Resistant Yellow Paint
COLUMBUS JACK

2295-10PR

Request a Quote

Specifications

Aircraft Applications

Resources

Specifications

Performance

  • Capacity Tons: 95

Dimensions

  • Closed Height In (Cm): 10
  • Extended Height In (Cm): 26 (66)
  • Hydraulic Extension In (Cm) (Hydraulic Lift): 11 (27.9)
  • Length In (Cm): 20.5 (52.1)
  • Mechanical Extension In (Cm) (Extension Screw): 5 (12.7)
  • Weight Lb (Kg): 525 (238)
  • Width In (Cm): 10 (25.4)

Type/Other

  • Hand Pump/Air Pump: Air Pump
  • Single (S) Or Multi (M) Stage: M
