COLUMBUS JACK

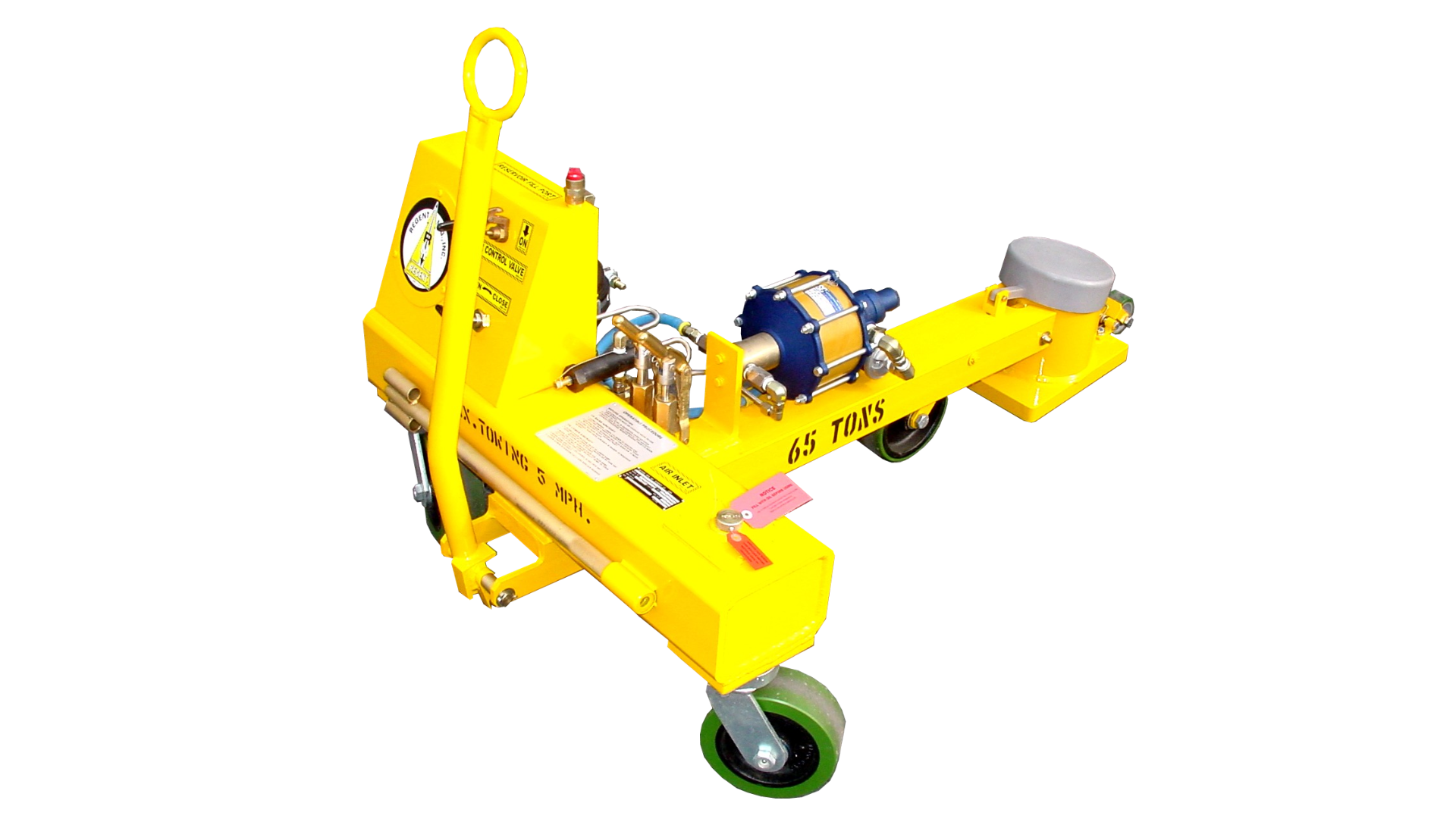

Axle Jack (65 Ton) Model 9667-010

2265-10PR

Model2265-10PR

Does this product fit your model?

View Aircraft Applications
Available to Order
Request a Quote
View full details

Standard Features

  • 65 Ton Power RetractTM Cylinder Assembly with Spring Loaded Trailing Caster for support during towing
  • Single Valve Control for ease of operation
  • Dual Manual Hand Pumps (One High Pressure, Low Volume and one Low Pressure, High Volume)
  • Air Powered Pumping Unit
  • Nitrogen Charged Accumulator is used for Power Cylinder Ram Retraction
  • Double Pump Handle Assembly
  • Hydraulic Restrictor Valve slows and controls cylinder descent in the event of a hose failure
  • 8" diameter Poly Tread Swivel Casters
  • Vented Filler Cap with Dip Stick
  • Hard Chrome Plated minimum .001 on a side of Cylinder and Ram Bores
  • Protective Cylinder Rain Cover
  • Skydrol Resistant Yellow Paint
COLUMBUS JACK

2265-10PR

Request a Quote

Specifications

Performance

  • Capacity Tons: 65

Dimensions

  • Closed Height In (Cm): 10
  • Extended Height In (Cm): 26 (66)
  • Hydraulic Extension In (Cm) (Hydraulic Lift): 11 (27.9)
  • Length In (Cm): 14 (35.6)
  • Mechanical Extension In (Cm) (Extension Screw): 5 (12.7)
  • Weight Lb (Kg): 500 (227)
  • Width In (Cm): 8.75 (22.23)

Type/Other

  • Hand Pump/Air Pump: Air Pump
  • Single (S) Or Multi (M) Stage: M
