MALABAR

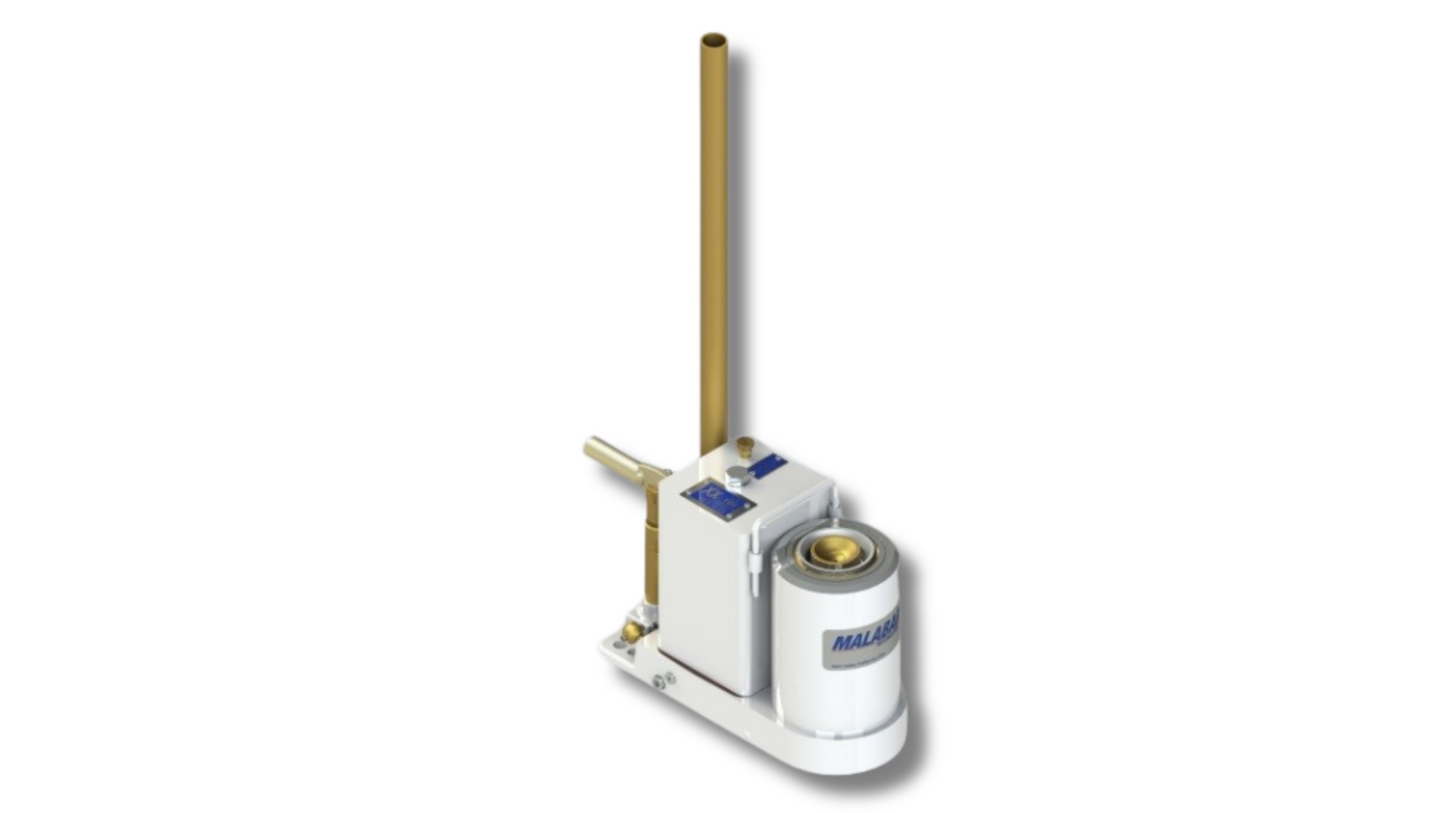

215B Axle Jack (20 Ton)

21500B

Model21500B

Lifting and shoring (ata-7)

Does this product fit your model?

View Aircraft Applications
Available to Order
Request a Quote
Icons/Caret-Right

Separate Adaptor may be required for some aircraft models. View Adaptor

View full details

Standard Features:

Manual hand pump
Secondary cylinder seal for protection against contaminants and to prolong life of primary seal
Hard chrome plated cylinder bore
All unpainted parts are plated to resist corrosion
Skydrol resistant paint (white)
Factory proof load @ 150% of rated capacity
1 year standard warranty
Fully enclosed shipping container

MALABAR

21500B

Request a Quote

Specifications

Performance

  • Capacity Tons: 20

Dimensions

  • Closed Height In (Cm): 8 (20.3)
  • Extended Height In (Cm): 19.5 (49.5)
  • Hydraulic Extension In (Cm) (Hydraulic Lift): 8.25 (21)
  • Mechanical Extension In (Cm) (Extension Screw): 3 (7.6)
  • Weight Lb (Kg): 50 (23)

Fluids

  • Fluid: MIL-PRF-5606 or equivalent
  • Reservoir Capacity (Gal): 0.5

Type/Other

  • Single (S) Or Multi (M) Stage: M
