TRONAIR

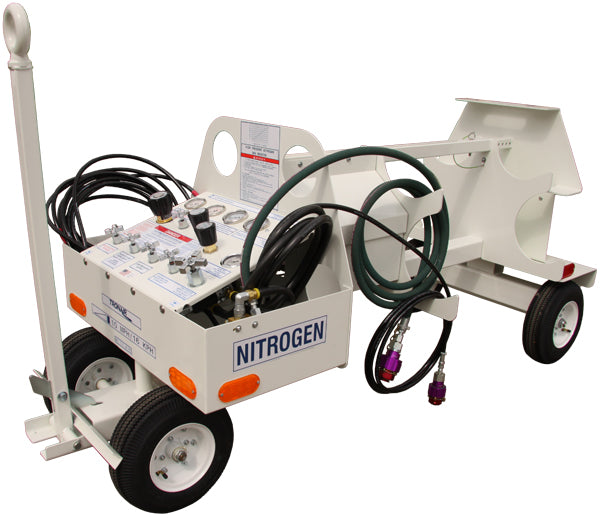

CART,HYDTEST/NITRO BOOST(CE)
18-4311-9000
SKU:Model18-4311-9000
Available to Order
Standard Features
- Easy loading
- Use with all standard nine inch (9 in/22.9 cm) diameter Nitrogen bottles; CGA 580 connection
- Adjustable bottle stop
- Bottles fully captured
- Pneumatic tires
- Parking brake
- Hose compartment and storage hooks
- Instrument Panel
- 4 gallon plastic collection tank with hose connection
- Low pressure nitrogen hose for hydraulic system input
- Low pressure nitrogen hose for hydraulic system return
TRONAIR
18-4311-9000
Specifications
Resources
Specifications
Performance
- Booster Operating Pressure (Psi): 4000-4400
Type/Other
- Booster: Yes
Fuel
- Gas: Nitrogen
Dimensions
- Height In (Cm): 46.1875 (117.3)
- Length In (Cm): 83.625 (85.6)
- Weight Lb (Kg): 370
- Width In (Cm): 38.5 (97.8)
Resources
-
Current Operation and Service Manual
Please Note, this is the latest version of the OSM. If you need an OSM specific to your model and serial number, please use our OSM Search Tool here.
