TRONAIR

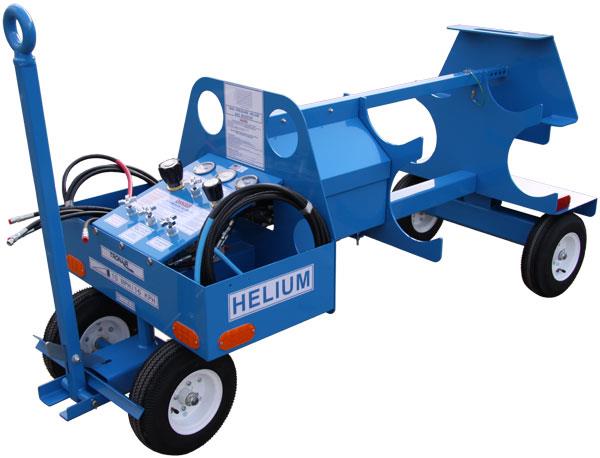

Four Bottle Service Cart (booster, manifold, high & low pressure regulators) (CE)

Name: 18-4306-0000
Brand: TRONAIR
SKU: 18-4306-0000
Availability: InStock

18-4306-0000

SKU:Model18-4306-0000

Servicing (ata-12)

Does this product fit your model?

View Aircraft Applications

Available to Order

Request a Quote

4 hose manifold to connect bottles with CGA-580 fittings (see accessories)
High pressure regulator 25 to 4,000 psi (1.7 to 276 bar) certified gauge with 15 ft (4.6 m) #4 output hose
Low pressure regulator 0 to 500 psi (.2 to 34.5 bar) certified gauge with 15 ft (4.6 m) #4 output hose
Temperature range 0º to 200º F (17.7º to 93.3º C)
Operating instructions located on instrument panel
Sturdy welded steel constrution
Holds four 9 inch (23 cm) diameter nitrogen bottles (bottles not included)
13 in (33 cm) diameter pneumatic tires
Front wheels lock with towbar in upright position (OSHA Act 1970 Section 5(a) (1) - General Duty Clause - an employer has the general duty to provide a safe work environment free from known hazards. Potential movement of the cart on an uneven surface or incline is eliminated by the locking front wheels)
Movable back stop adjusts to fit bottle lengths from 48 to 64 in (122 to 163 cm) to hold bottles securely in place
Towbar with 2-3/16 in (5.6 cm) ID eyebolt
Maximum towing speed 10 mph (16 km/hr)
Hose storage compartment
Reflectors to improve night visibility
Low Profile
CE marked
Custom Colors Available
4,000 psi (276 bar) nitrogen intensifier (booster) operates off low pressure regulator
Intensifier (booster) automatically shuts down when aircraft reaches set pressure

Current Operation and Service Manual
Please Note, this is the latest version of the OSM. If you need an OSM specific to your model and serial number, please use our OSM Search Tool here.

Talk to your account manager or fill out a contact request form to get more information.
