TRONAIR

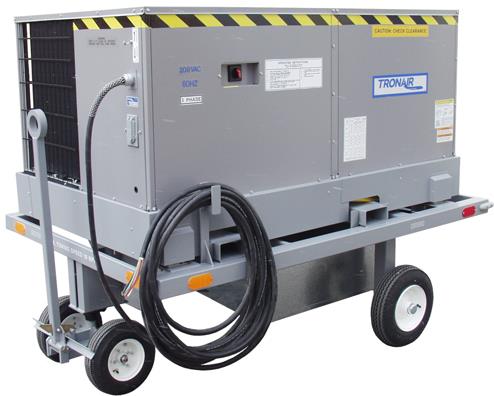

CONDITIONER, 4 TON AIR

17A7503B7000

Model17A7503B7000

Air conditioning (ata-21)

Does this product fit your model?

View Aircraft Applications
Available to Order
Request a Quote
Icons/Caret-Right

Separate Adaptor may be required for some aircraft models. View Adaptor

View full details

Standard Features:

17-7503-7000 (AC Plug-in):
Cooling capacity 45,000 Btu/hr output
1600 cfm maximum air flow
Refrigerant type R-410A is environmentally safe
Hermetic compressor belt driven with over current and over temperature protection
1,200-2,000 cfm propellor type condenser fan
12 in (30 cm) diameter, 25 ft (7.6 m) long output hose
Dual suction high density filters
115 volt (ground fault interrupt) external AC utility outlet with 15 amp fuse and switch
Sturdy welded frame with 16 gauge sheet metal cabinet
Trailer mounted - Finish: Black
Finish: Acrylic Enamel Gray
AC plug-in: 208, 230, 400, 460, 575 volt
1 or 3 phase (single phase not available in all voltages)
50 ft (15.3 m) long power cord
Noncorrosive, sloped condensation drain pan, meets ASHRAE 62-89 (IAQ) standard
Available Option, 8.7 kW heater, 29,700 Btu/hr maximum thematically controlled (Btu output will vary with input voltage) insert an "A" as the third digit of the model number (e.g. 17A7503-7000)
Unit is designed to cool and/or heat an aircraft through a window or door opening

TRONAIR

17A7503B7000

Request a Quote

Specifications

Dimensions

  • Height In (Cm): 63 (160)
  • Length In (Cm): 104 (264)
  • Weight Lb (Kg): 1,300 (590)
  • Width In (Cm): 61 (156)

Electrical

  • Input: 208V/60Hz/1ph/50.4Amps
