TRONAIR

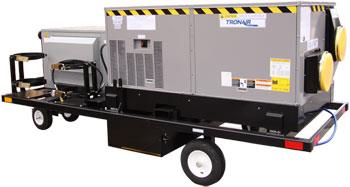

CONDITIONER, LPG 4 TON AIR

17-7524-0000

Model17-7524-0000

Air conditioning (ata-21)

Does this product fit your model?

View Aircraft Applications
Available to Order
Request a Quote
View full details

Standard Features

  • 17-7505-7000 (Gasoline), 17-7524-0000 (LPG):
  • Cooling capacity 45,000 Btu/hr output
  • 1600 cfm maximum air flow
  • Refrigerant type R-410A is environmentally safe
  • Hermetic compressor belt driven with over current and over temperature protection
  • 1,200-2,000 cfm propellor type condenser fan
  • 12 in (30 cm) diameter, 25 ft (7.6 m) long output hose
  • Dual suction high density filters
  • 115 volt (ground fault interrupt) external AC utility outlet with 15 amp fuse and switch - 17-7505-7000
  • Sturdy welded frame with 16 gauge sheet metal cabinet
  • Noncorrosive, sloped condensation drain pan, meets ASHRAE 62-89 (IAQ) standard
  • Trailer mounted - Finish: Black
  • 20 HP Honda engine - 17-7505-7000
  • 23 HP Subaru engine - 17-7524-0000
  • 13 gal (49.2 l) tank with run time of 8 hours - 17-7505-7000
  • 240/1 phase, 13.5 kW AC output
  • Finish: Acrylic Enamel Gray
  • Available Option, 8.7 kW heater, 29,700 Btu/hr maximum thematically controlled (Btu output will vary with input voltage) insert an "A" as the third digit of the model number (e.g. 17A7505-7000)
  • Units are designed to cool and/or heat an aircraft through a window or door opening
TRONAIR

17-7524-0000

Request a Quote

Specifications

Dimensions

  • Height In (Cm): 64 (163)
  • Length In (Cm): 154 (191)
  • Weight Lb (Kg): 2,000 (907)
  • Width In (Cm): 61 (156)

Electrical

  • Input: 230V/60Hz/1ph/41.2Amps/LPG
