TRONAIR

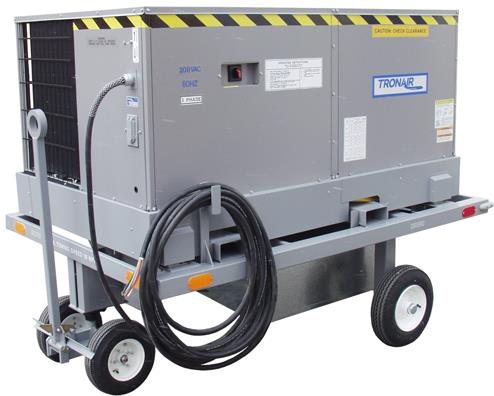

CONDITIONER, 4 TON AIR

17-7503F7000

Model17-7503F7000

Air conditioning (ata-21)

Does this product fit your model?

View Aircraft Applications
Available to Order
Request a Quote
View full details

Standard Features

  • 17-7503-7000 (AC Plug-in):
  • Cooling capacity 45,000 Btu/hr output
  • 1600 cfm maximum air flow
  • Refrigerant type R-410A is environmentally safe
  • Hermetic compressor belt driven with over current and over temperature protection
  • 1,200-2,000 cfm propellor type condenser fan
  • 12 in (30 cm) diameter, 25 ft (7.6 m) long output hose
  • Dual suction high density filters
  • 115 volt (ground fault interrupt) external AC utility outlet with 15 amp fuse and switch
  • Sturdy welded frame with 16 gauge sheet metal cabinet
  • Trailer mounted - Finish: Black
  • Finish: Acrylic Enamel Gray
  • AC plug-in: 208, 230, 400, 460, 575 volt
  • 1 or 3 phase (single phase not available in all voltages)
  • 50 ft (15.3 m) long power cord
  • Noncorrosive, sloped condensation drain pan, meets ASHRAE 62-89 (IAQ) standard
  • Available Option, 8.7 kW heater, 29,700 Btu/hr maximum thematically controlled (Btu output will vary with input voltage) insert an "A" as the third digit of the model number (e.g. 17A7503-7000)
  • Unit is designed to cool and/or heat an aircraft through a window or door opening

Variants

TRONAIR

17-7503F7000

Request a Quote

Specifications

Dimensions

  • Height In (Cm): 63 (160)
  • Length In (Cm): 104 (264)
  • Weight Lb (Kg): 1,300 (590)
  • Width In (Cm): 61 (156)

Electrical

  • Input: 208V/60Hz/3ph/25.9Amps
