TRONAIR

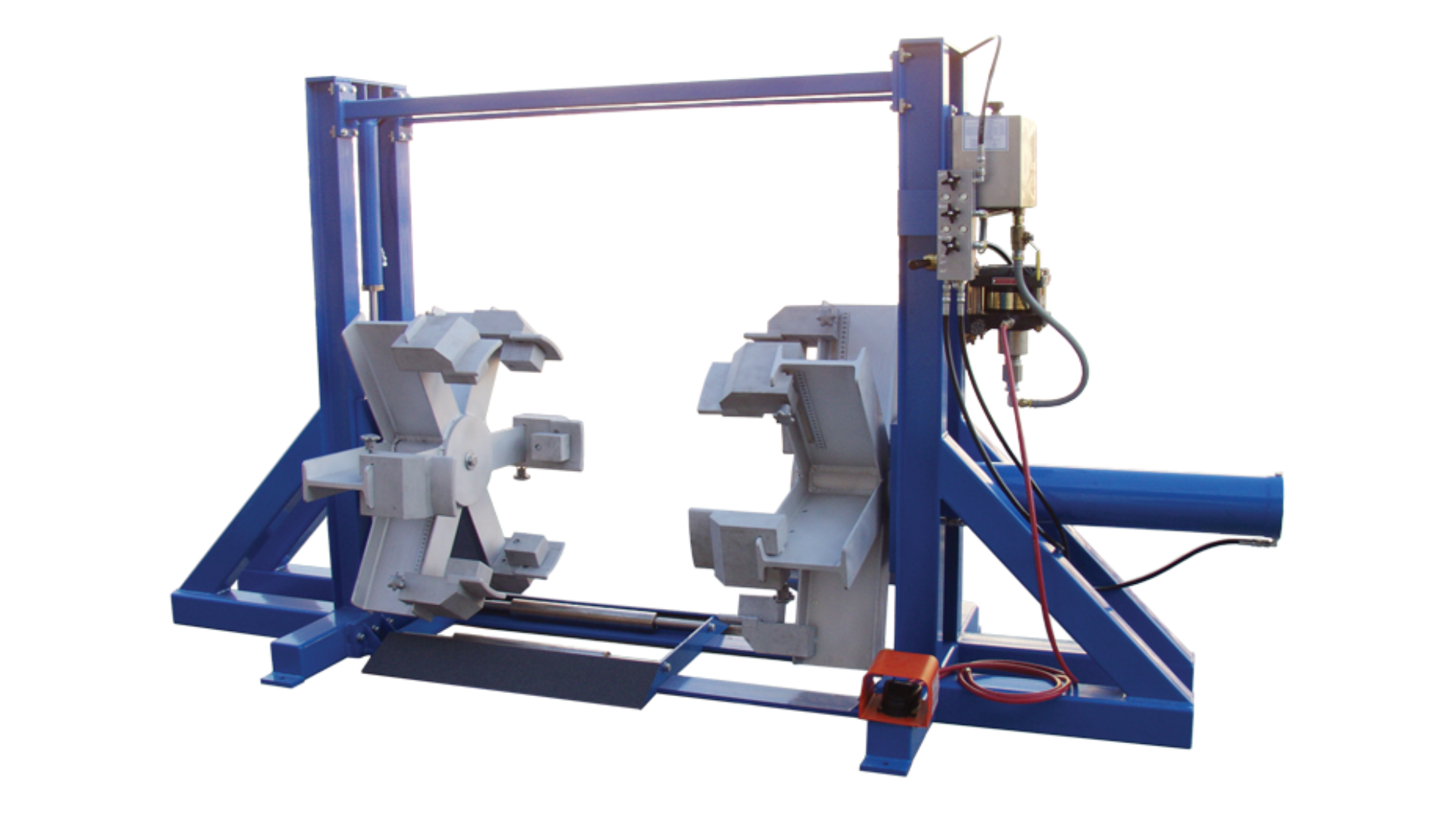

Hydraulic Tire Bead Breaker (CE)

14-6878-0110

Model14-6878-0110

National Stocking Number: 4910-01-588-2683

Landing gear (ata-32)

Does this product fit your model?

View Aircraft Applications
Available to Order
Request a Quote
Icons/Caret-Right

Separate Adaptor may be required for some aircraft models. View Adaptor

View full details

Standard Features:

12 ton (10,886 kg) hydraulic cylinder driven by an 80 to 120 psi (5.5 to 8.3 bar) pneumatic pump
Rugged welded steel construction with aluminum breaker spindle
Pneumatic pump, single control panel, ramp, and mechanical vertical and horizontal travel (OSHA Act 1970 Section 5(a) (1) - General Duty Clause and EU-OSHA Directive 90/269/EEC - Manual Handling of Loads)
Single control panel allows for both vertical and horizontal travel with a foot pedal control valve
10 adjustable breaker pad settings eliminate the need for ring adapters
Entry ramp and sliding rail make loading and positioning easier
Horizontal mechanical extension from the cylinder for final width adjustment
Adjustable to rim sizes 12 to 28 in (30.5 to 71 cm)
Approved for use on radial tires
Hydraulic force 12 ton (10,886 kg)
80 to 120 psi (5.5 to 8.3 bar) shop air requirements
MIL-PRF-5606 hydraulic fluid
CE marked
Finish: Durable Powder Coat Tronair Blue

TRONAIR

14-6878-0110

Request a Quote

Specifications

Dimensions

  • Height In (Cm): 62.5 (159)
  • Length In (Cm): 121 (307)
  • Rim Size Range In (Cm): 12-28 (30.5-71)
  • Weight Lb (Kg): 1400 (635)
  • Width In (Cm): 40 (102)

Fluids

  • Hydraulic Fluid: MIL-PRF-5606 hydraulic fluid

Performance

  • Pump Psi (Bar): 80-120 (5.5-8.3)

Pump

  • Pump Type: Pneumatic

Type/Other

  • System: Pneumatic

Replacement Parts

  • Comac - C909 (ARJ21)
    • K-3151 - Nose Tire Adapter Kit
  • Airbus - A318
    • K-3706 - Nitrogen Adapter
  • Airbus - A319
    • K-3706 - Nitrogen Adapter
  • Airbus - A320
    • K-3706 - Nitrogen Adapter
  • Airbus - A321
    • K-3706 - Nitrogen Adapter
  • Airbus - A321 Neo
    • K-3706 - Nitrogen Adapter
  • Airbus - A330-200
    • K-3706 - Nitrogen Adapter
  • Airbus - A330-300
    • K-3706 - Nitrogen Adapter
  • Airbus - A340-200
    • K-3706 - Nitrogen Adapter
  • Airbus - A340-300
    • K-3706 - Nitrogen Adapter
  • Airbus - A340-500
    • K-3706 - Nitrogen Adapter
  • Airbus - A340-600
    • K-3706 - Nitrogen Adapter
  • Embraer - E190 (ERJ-190)
    • K-3151 - Nose Tire Adapter Kit
  • Embraer - E190-E2
    • K-3151 - Nose Tire Adapter Kit
  • Gulfstream - G450
    • K-3151 - Nose Tire Adapter Kit
  • Gulfstream - G500
    • K-3151 - Nose Tire Adapter Kit
  • Gulfstream - G550
    • K-3151 - Nose Tire Adapter Kit
  • Gulfstream - G600
    • K-3151 - Nose Tire Adapter Kit
  • Gulfstream - G650
    • K-3151 - Nose Tire Adapter Kit
  • Gulfstream - G650ER
    • K-3151 - Nose Tire Adapter Kit
  • Gulfstream - G700
    • K-3151 - Nose Tire Adapter Kit
  • Embraer - Lineage 1000
    • K-3151 - Nose Tire Adapter Kit
  • Gulfstream - V
    • K-3151 - Nose Tire Adapter Kit
  • Gulfstream - VSP
    • K-3151 - Nose Tire Adapter Kit

Aircraft Applications

Airbus - A220-100 (CS100),

Airbus - A220-300 (CS300),

Airbus - A300,

Airbus - A310,

Airbus - A318,

Airbus - A319,

Airbus - A320,

Airbus - A321 Neo,

Airbus - A321,

Airbus - A330-200,

Airbus - A330-300,

Airbus - A340-200,

Airbus - A340-300,

Airbus - A340-500,

Airbus - A340-600,

ATR - 42,

ATR - 72,

BAe - 146-100, -200, -300/Avro RJ100,

BAe - RJ70,

BAe - RJ85,

Boeing - 707,

Boeing - 717,

Boeing - 727-100,

Boeing - 727-200,

Boeing - 737-100,

Boeing - 737-200,

Boeing - 737-300,

Boeing - 737-400,

Boeing - 737-500,

Boeing - 737-600,

Boeing - 737-700,

Boeing - 737-800,

Boeing - 737-900,

Boeing - 737-BBJ,

Boeing - 737-BBJ2,

Boeing - 737 MAX,

Boeing - 757,

Boeing - 767,

Boeing - 777,

Boeing - 787,

Boeing - KC-46,

Boeing - KC-46A,

Boeing - MD-80,

Bombardier (Business) - 6500,

Bombardier (Business) - Global 5000,

Bombardier (Business) - Global 5500,

Bombardier (Business) - Global 6000,

Bombardier (Business) - Global 6500,

Bombardier (Business) - Global 7500 (7000),

Bombardier (Business) - Global 8000,

Bombardier (Business) - Global Express XRS,

Bombardier (Business) - Global Express,

Bombardier (Regional) - Challenger 870,

Bombardier (Regional) - Challenger 890,

Bombardier (Regional) - CRJ1000,

Bombardier (Regional) - CRJ700,

Bombardier (Regional) - CRJ705,

Bombardier (Regional) - CRJ900,

Bombardier (Regional) - Dash 8-Q400,

Comac - C909 (ARJ21),

Embraer - E190-E2,

Embraer - E190 (ERJ-190),

Embraer - E195-E2,

Embraer - E195 (ERJ-195),

Fokker - 100,

General Dynamics - Convair 580,

General Dynamics - Convair 600,

General Dynamics - Convair 640,

Gulfstream - G350,

Gulfstream - G450,

Gulfstream - G500,

Gulfstream - G550,

Gulfstream - G600,

Gulfstream - G650,

Gulfstream - G650ER,

Gulfstream - G700,

Gulfstream - II,

Gulfstream - III,

Gulfstream - IV,

Gulfstream - IVSP,

Gulfstream - V,

Gulfstream - VSP,

McDonnell Douglas - DC-10,

McDonnell Douglas - DC-8 Series 60,

McDonnell Douglas - DC-9 Series 10,

McDonnell Douglas - DC-9 Series 20,

McDonnell Douglas - DC-9 Series 30,

McDonnell Douglas - DC-9 Series 33,

McDonnell Douglas - DC-9 Series 40,

McDonnell Douglas - DC-9 Series 50,

McDonnell Douglas - MD-11
