MALABAR

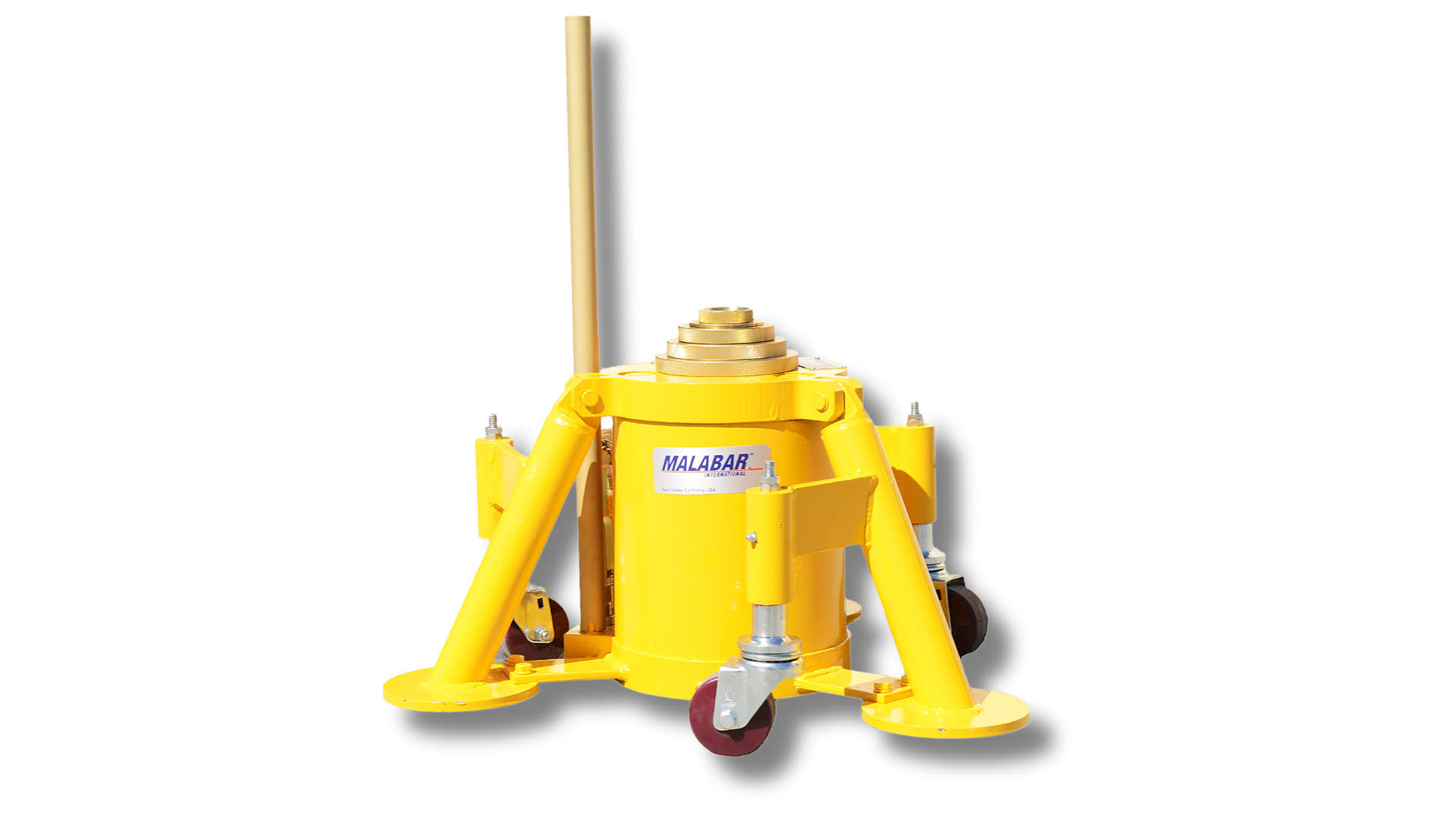

12314S Tripod Jack (12 Ton)

12314S-1

Model12314S-1

Lifting and shoring (ata-7)

Does this product fit your model?

View Aircraft Applications
Available to Order
Request a Quote
View full details

Standard Features

  • Manual hand pump, Heavy duty swivel casters, Hard chrome plated cylinder bore, All unpainted parts are plated to resist corrosion, Skydrol resistant paint (safety yellow), 3 year standard warranty, Shipment on domestic skid

Optional Features

  • Air operated hydraulic pump, Customer specified paint color, Export crating

Variants

  • Currently Viewing 12314S-1 - NONE
  • 12314S-2 - AIR PUMP
MALABAR

12314S-1

Request a Quote

Specifications

Aircraft Applications

Resources

Specifications

Dimensions

  • Base Radius: 6.875
  • Closed Height In (Cm): 14.31 (36.3)
  • Extended Height In (Cm): 43.3 (110)
  • Hydraulic Extension In (Cm) (Hydraulic Lift): 23 (58.4)
  • Mechanical Extension In (Cm) (Extension Screw): 6 (15.2)
  • Weight Lb (Kg): 175 (79)

Performance

  • Capacity Tons: 12

Type/Other

  • Hand Pump/Air Pump: Air Pump
  • Single (S) Or Multi (M) Stage: M
